Import the intermediate and root certificates in the certificate chain of your CAC cards to the Manager. To import the CAC certificates, perform the following steps:
Task
- Log in to the Manager GUI.
-
Go to,
Manager
→ <Admin Domain Name > → Setup → GUI Access → CAC Authentication.

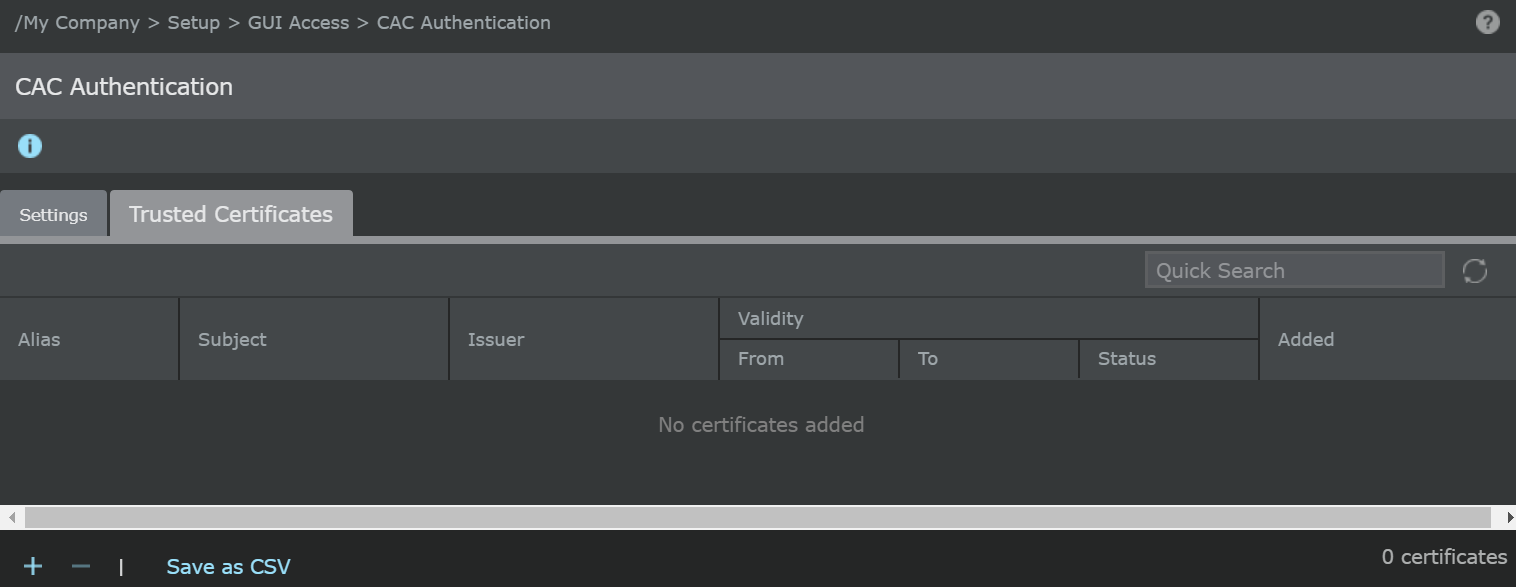

The CAC Authentication page opens.
.png?sv=2026-02-06&spr=https&st=2026-11-20T04%3A29%3A41Z&se=2026-11-20T04%3A40%3A41Z&sr=c&sp=r&sig=kLV9U6Bya%2FVhiPw449A0LKTfW73NSs61j0QguZ57GEk%3D)
-
In the
Trusted Certificates tab, click
.
.png?sv=2026-02-06&spr=https&st=2026-11-20T04%3A29%3A41Z&se=2026-11-20T04%3A40%3A41Z&sr=c&sp=r&sig=kLV9U6Bya%2FVhiPw449A0LKTfW73NSs61j0QguZ57GEk%3D)

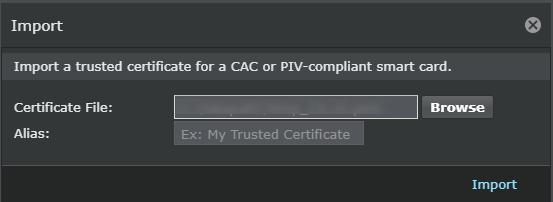

- In the Import dialogue box, click Browse.
-
Browse to the directory that contains the certificate chain and click
Open.
Note
The CAC certificate should be in .pem format.
-
Provide an
Alias for the certificate and click
Import.
.png?sv=2026-02-06&spr=https&st=2026-11-20T04%3A29%3A41Z&se=2026-11-20T04%3A40%3A41Z&sr=c&sp=r&sig=kLV9U6Bya%2FVhiPw449A0LKTfW73NSs61j0QguZ57GEk%3D)
-
Click
.

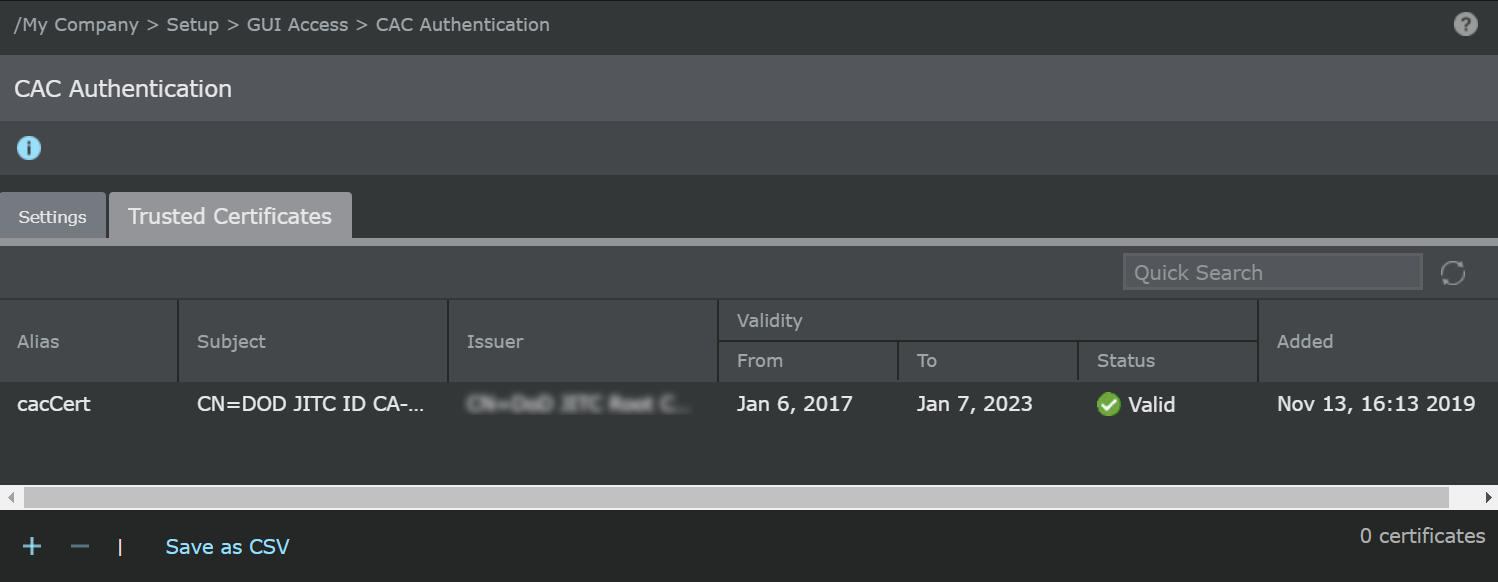

The Manager imports the certificate to its keystore and the details of the certificate are displayed on the Trusted Certificates tab.
.png?sv=2026-02-06&spr=https&st=2026-11-20T04%3A29%3A41Z&se=2026-11-20T04%3A40%3A41Z&sr=c&sp=r&sig=kLV9U6Bya%2FVhiPw449A0LKTfW73NSs61j0QguZ57GEk%3D)
Note
Click Save as CSV to export the trusted certificates details as .csv file.
