Import the CA certificates

  • Published on Oct 5, 2026
  • 1 minute(s) read
Prev Next

Import the intermediate and root certificates in the certificate chain of your CAC cards to the Manager. To import the CAC certificates, perform the following steps:

  1. Log in to the Manager GUI.

  2. Go to, Manager → <Admin Domain Name > → Setup → GUI Access → CAC Authentication.

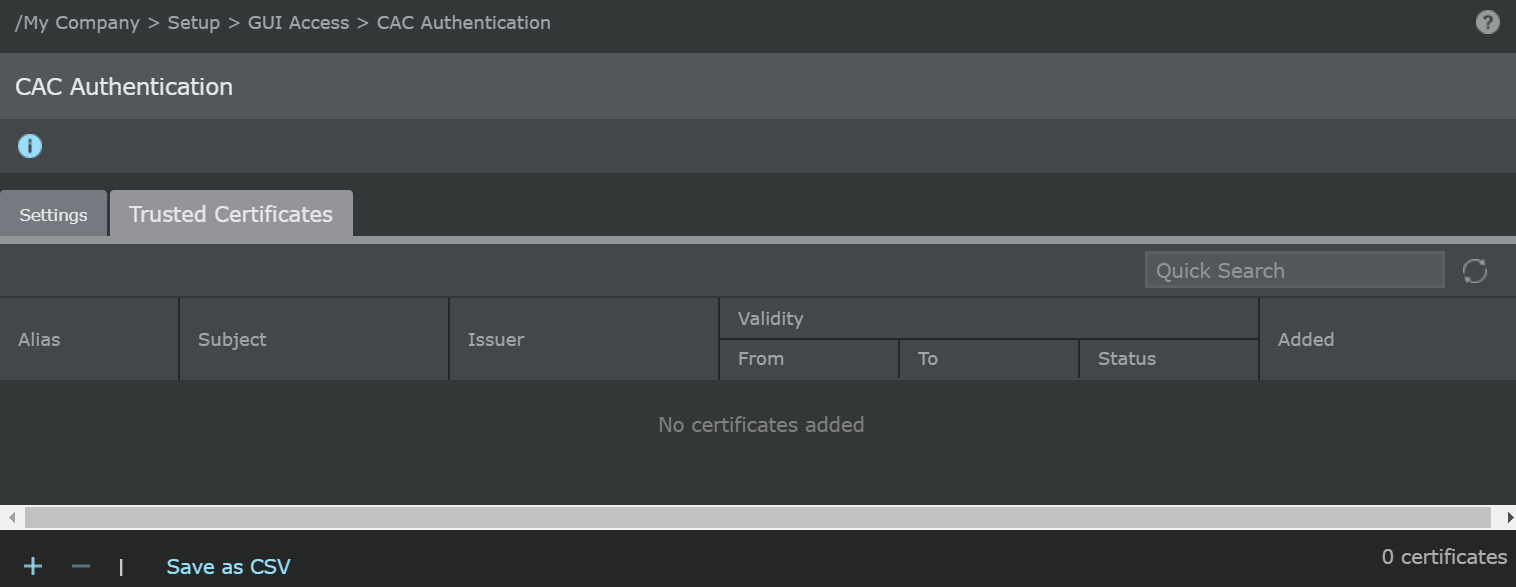

    The CAC Authentication page opens.


  3. In the Trusted Certificates tab, click GUID-A6ACF06E-8B7C-4F33-9335-99E4B1FDEB3D-low.png.

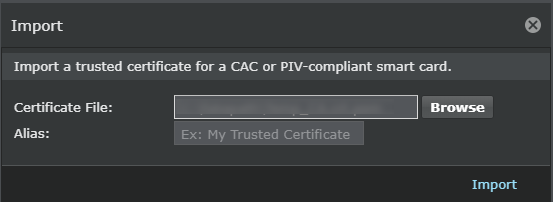

  4. In the Import dialogue box, click Browse.

  5. Browse to the directory that contains the certificate chain and click Open.

    Note

    The CAC certificate should be in .pem format.

  6. Provide an Alias for the certificate and click Import.


  7. Click GUID-896A6014-DE8C-443F-AFE3-628F8E07A0DE-low.png.

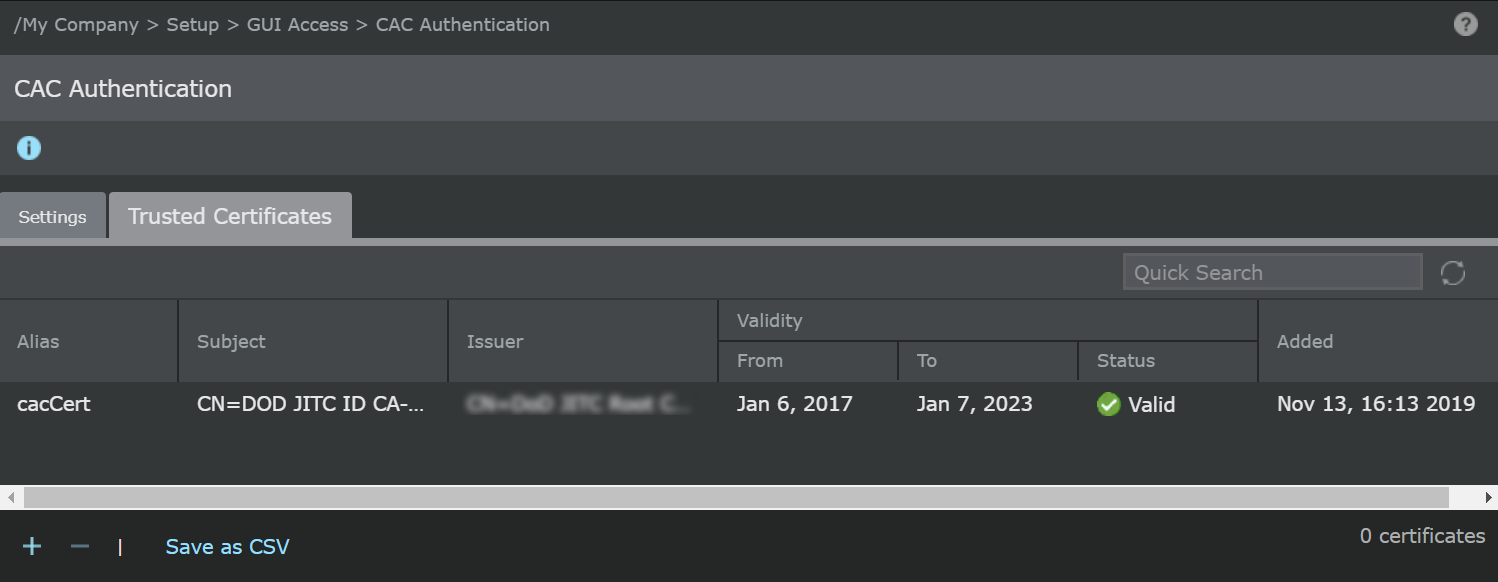

    The Manager imports the certificate to its keystore and the details of the certificate are displayed on the Trusted Certificates tab.


    Note

    Click Save as CSV to export the trusted certificates details as .csv file.
