Trellix recommends rack-mounting your Sensor. For maintenance purposes, you must have access to the front and rear of the Sensor.
Caution
Before you mount the Sensor on the rack, make sure that the power is off. Remove the power cable and all network interface cables from the Sensor.
Important
Due to the weight of the appliance, Trellix recommends that one person holds the chassis and the other person fixes it to the rail cabinet.
Steps:

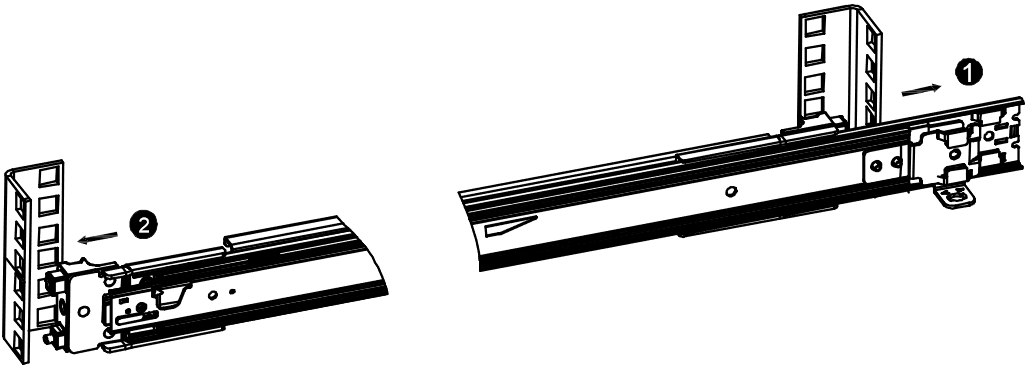

Mount the slide rails to the rack.
Align the rails and fit it into the corresponding holes on the front post of the rack.
Fit the rails into holes on the rear post of the rack.

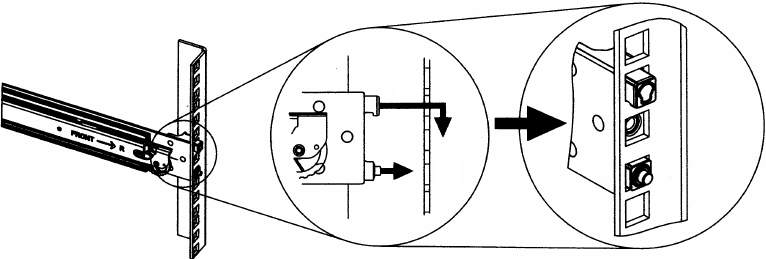

Install the front end of each slide rail in the front post of a 4-post enterprise rack. Try different hole combinations until one of them locks in.
Tip
At times in a 4-post enterprise rack, certain hole combinations do not permit the rail latch to lock in. So to make it lock, you must try different hole combinations.

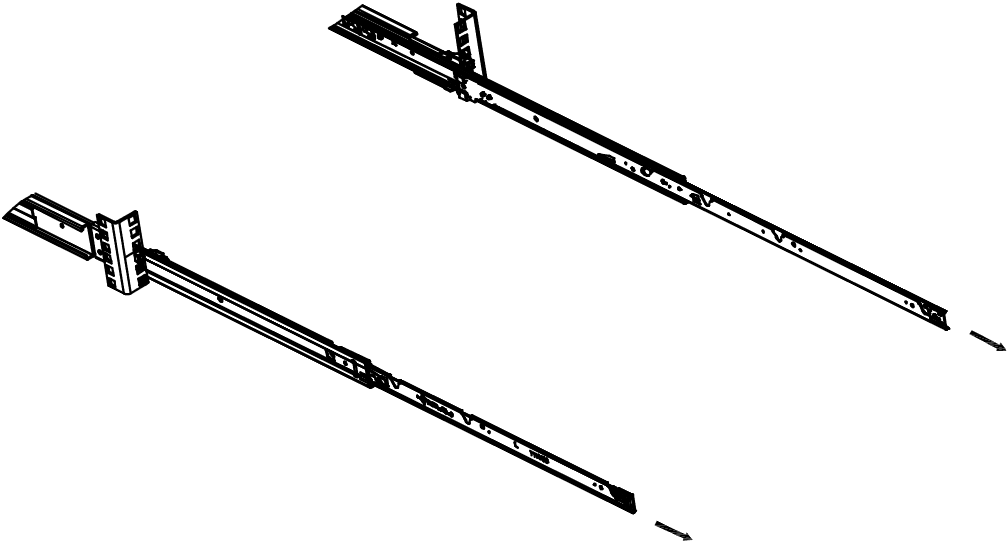

Position the inner members to fix the chassis.
Pull inner member of the slide rail out until it comes to a lock position.
Tip
To push the inner member into the rack, lift the latch, and push the inner member.
Position both inner members.

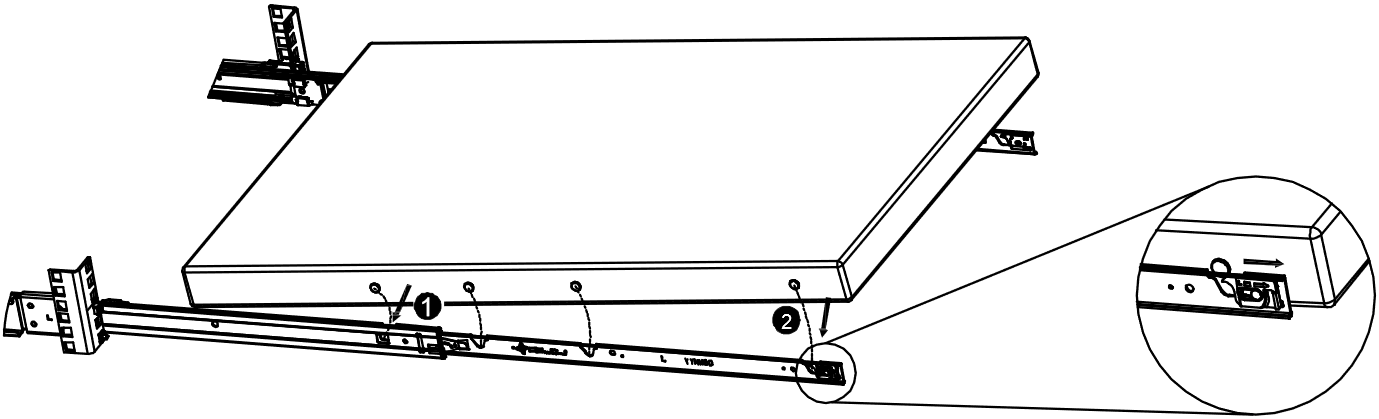

Mount inner members to the chassis unit.
Place each inner member on both sides of the chassis unit. Position the mounting holes of the inner member with matching mounting hooks on chassis unit.
Apply to both sides of chassis unit.

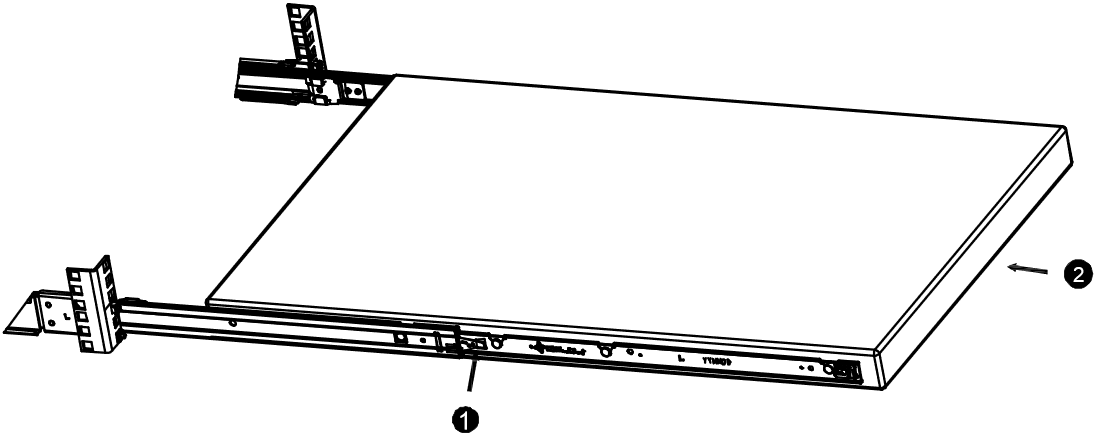

Install chassis unit into the rack.
Lift the release tab on both sides and push the inner members into the outer members until they lock in place.
Continue to push the chassis unit in until fully closed.
Secure the chassis unit through the rack rails.
With the chassis unit in fully closed position, secure using two spring screws provided in the chassis ear.
Tighten the screws. The screws thread directly to the rack posts.
