Install Trellix IPS extension file in ePO - On-prem

  • Published on Oct 5, 2026
  • 2 minute(s) read
Prev Next

To install the extension for Trellix IPS in ePO - On-prem, do the following:

  1. Log onto the Manager.

  2. Navigate to Manager → <Admin Domain Name> → Integration → ePO → ePO Integration.

    The Enable ePO Integration page is displayed.

  3. Enable the required options for ePO - On-prem integration.

    (Optional) Select the checkbox for the Enable Endpoint Lookup? option.

    (Optional) Select the checkbox for the Enable Endpoint Tagging? option.

    This option enables you to assign tags created in ePO - On-prem to managed endpoints.

    Note

    At least one of the above options has to be selected for ePO - On-prem integration.

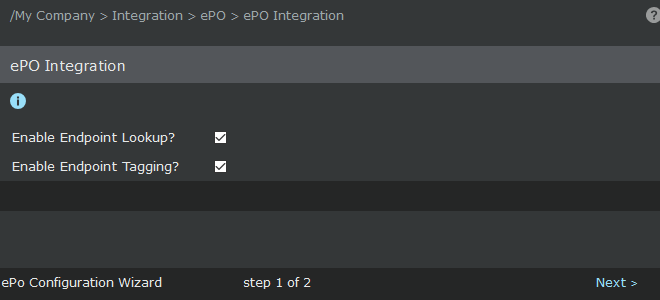

    Enable ePO Integration area
    Enable ePO Integration area


  4. Click Next to view ePO Server Settings page.

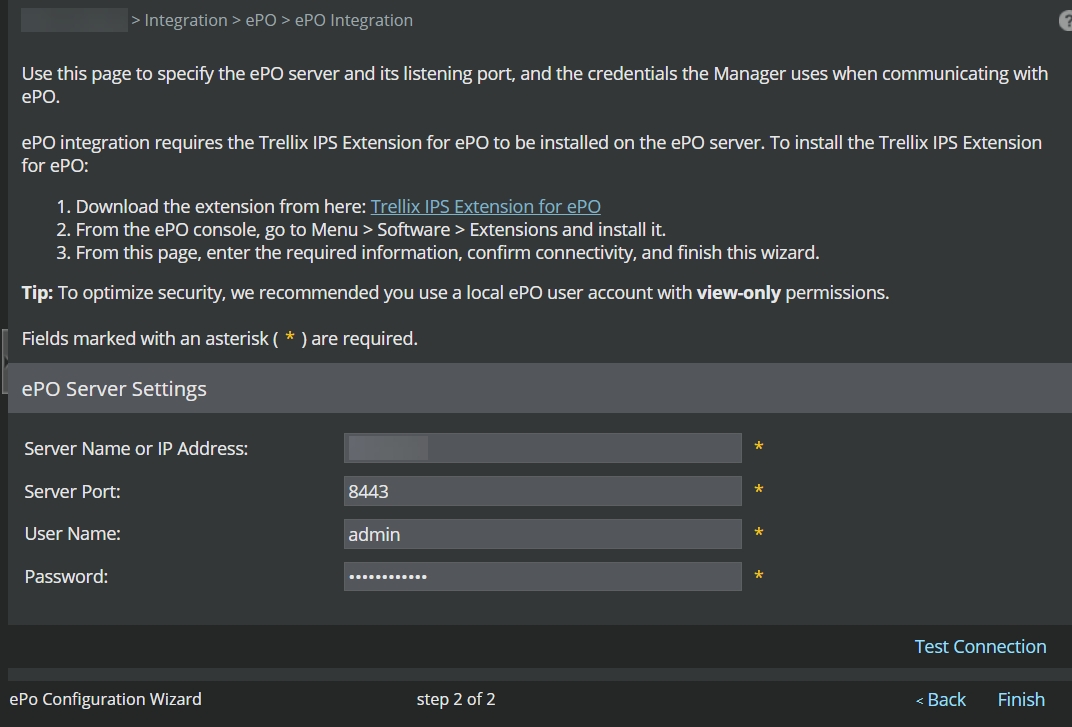

    ePO Server Settings area
    Trellix ePO&trade; Server Settings Page


  5. Click Trellix IPS Extension for ePO link to download the TrellixIPSExtension.zip file.

    Note

    If this is an existing deployment using an obsolete version of the extension, you are prompted to update to the minimum required version.

  6. Save TrellixIPSExtension.zip in a convenient location.

    You can also copy the product extension zip file from Manager installation folder in the following location: %programfiles%\Trellix\IPS Manager\App\EPOExtension

  7. Log onto the ePO - On-prem console.

    The ePO - On-prem console Home page is displayed.

  8. Click GUID-BDA9C403-E8C7-4289-A209-C2E80BBF767E-low.png, and navigate to Software → Extensions page.

  9. Click Install Extension at the top of the page.

  10. Browse and select TrellixIPSExtension.zip from the location mentioned in step 5.

    Once installed, the Manager is listed under the Extensions list. For more details on installation procedure for extension files, refer to ePO - On-prem documentation.

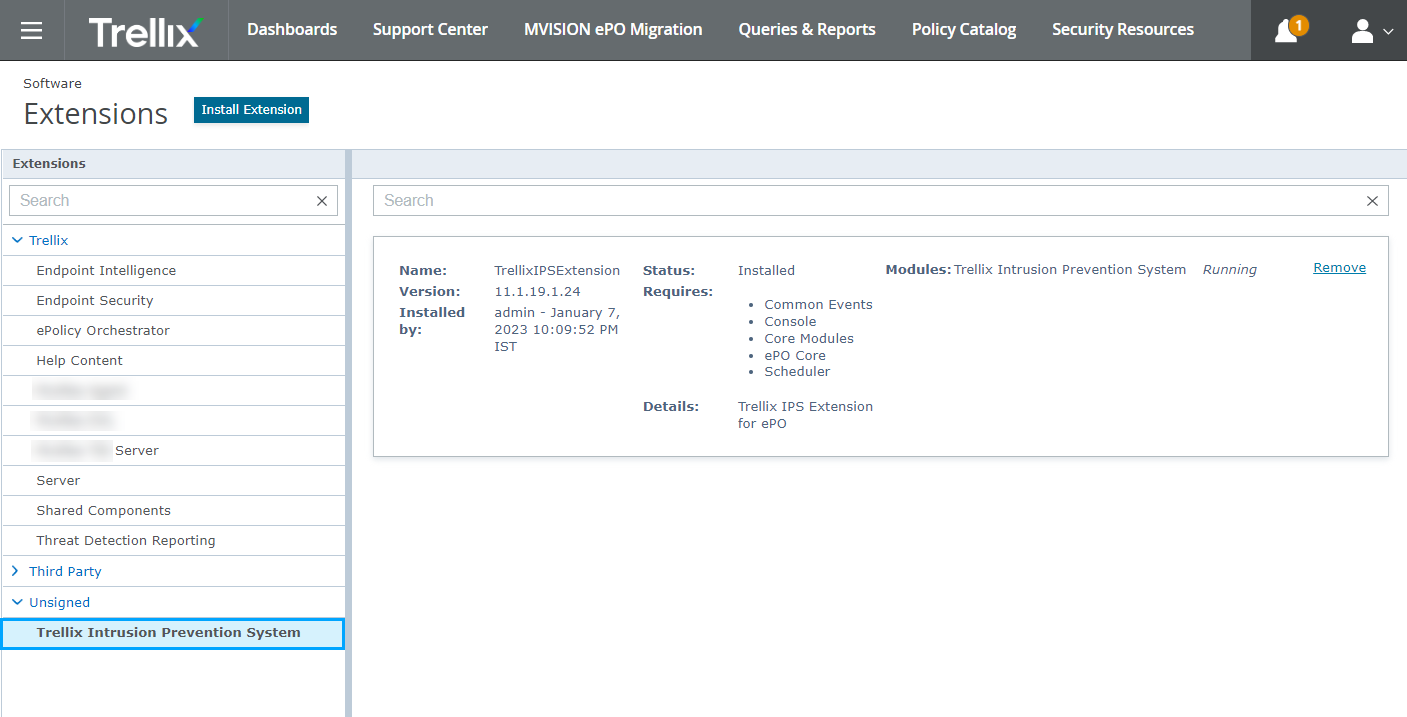

    Extensions page
    Navigating the Software Extension page


Note

After upgrading the Manager to 11.1.7.84, download the latest ePO extension and import it into the ePO user interface to avoid connectivity issues.

:
