Integrate ePolicy Orchestrator - On-premises and the Manager

Go to Manager → <Admin Domain Name> → Integration → ePO → ePO Integration.
The Enable ePO Integration page appears.
Select the checkbox for Enable Endpoint Lookup?.
Enabling this option provides endpoint details like hostname, current user and OS version in the Attack Log.
Select the checkbox for Enable Endpoint Tagging?.
Enabling this option allows you to tag endpoints in Attack Log.
Click Next.
The ePO Server Settings page appears.

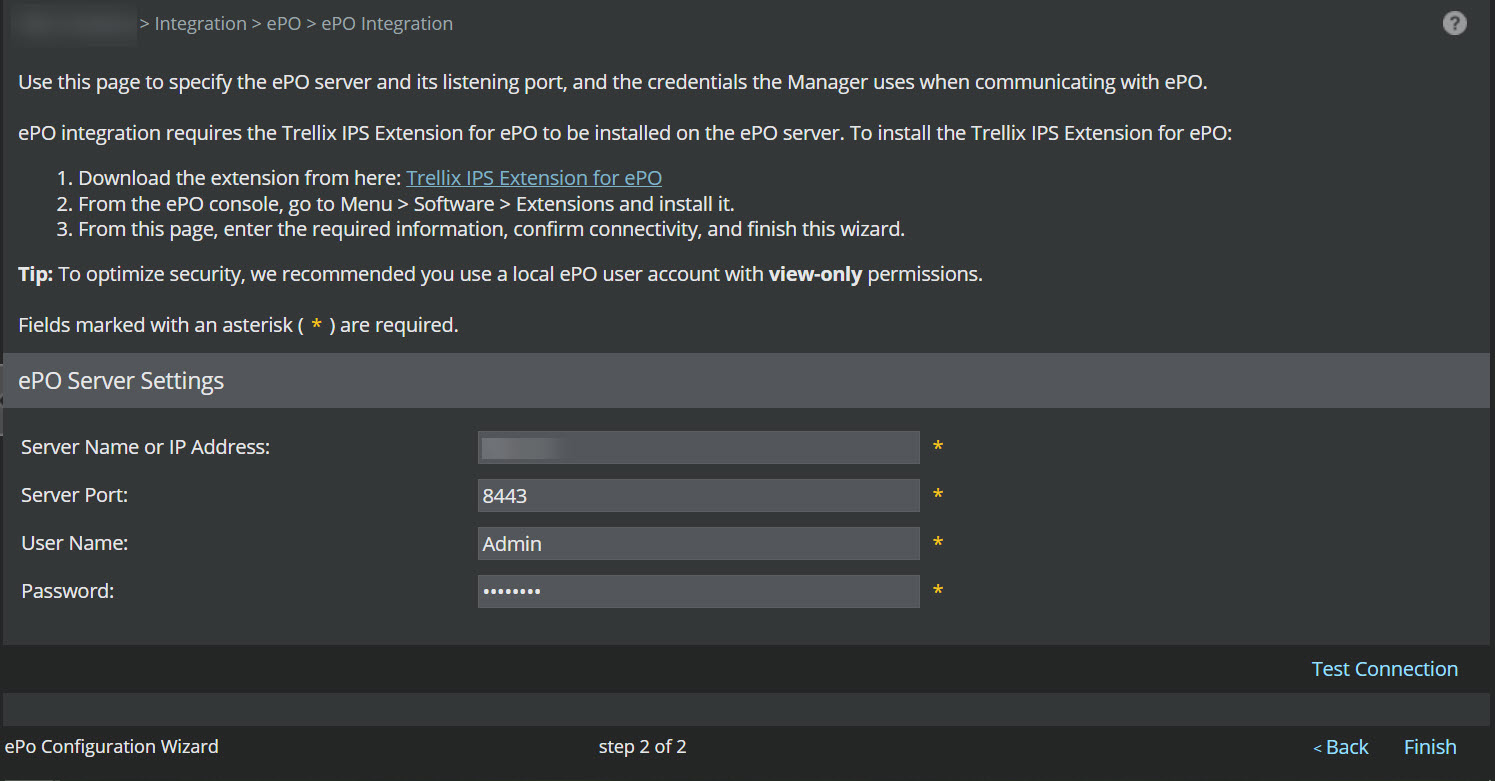

ePO Server Settings page
Click the Trellix IPS Extension for ePO hyperlink to download the TrellixIPSExtension.zip file.
Save the file in a convenient location in the local hard disk.
Log on to the ePolicy Orchestrator - On-premises console.
The ePolicy Orchestrator - On-premises home page appears.
Go to Menu → Software → Extensions.
The Extension page appears.
Click Install Extension at the bottom of the page.
Browse to the location that you have stored TrellixIPSExtension.zip file.
Once installed, the Manager is listed under the Extensions list.
Close ePolicy Orchestrator - On-premises and return to the Manager.

Go to Manager → <Admin Domain Name> → Integration → ePO → ePO Integration.

Field	Description
Server Name or IP Address	Enter the name or the IP of the ePO - On-prem server running the extension file. Note that this ePO - On-prem server should have the details of the hosts covered by the admin domain. Contact your ePO - On-prem administrator for the server name and IP.
Server Port	Specify the HTTPS listening port on the ePO - On-prem server that will be used for the Manager -ePO - On-prem communication. Contact your ePO - On-prem administrator for the port number.
User Name	Enter the username to be used while connecting to the ePO - On-prem server. Trellix recommends you create an ePO - On-prem user account with view-only permissions required for integration.
Password	Enter the password for connecting to the ePO - On-prem server.

Click Test Connection to ensure that the extension file is installed and started on the ePO - On-prem server.
If the connection is up, then click Finish.
