Interface groups (port clusters)

An interface group, also known as port clustering in networking parlance, combines the traffic processed on separate Sensor interfaces—or, in the case of a HA pair, on separate Sensors—into a single logical interface for state and intrusion analysis. Asymmetric routing is a good example of where an interface group is recommended. In asymmetric routing, a TCP connection does not always send and receive along the same network path. Therefore, a single-interface Sensor monitoring this transmission may only see the traffic received, not the traffic sent in response; thus not seeing all data from a transmission.

Sensors' multiple interfaces make the monitoring of asymmetric traffic possible. For example, consider an NS9500's G1 interface module that has 4 ports. The ports are wired in pairs by default. Peer ports G1/1 and G1/2 can monitor one direction of an asymmetric transmission, while peer ports G1/3 and G1/4 can monitor the other direction. By making an interface group of G1/1-G1/2 and G1/3-G1/4, the Sensor is able to see all the traffic for all sessions in the asymmetrically routed network and still is able to maintain state and accurately detect all attacks.

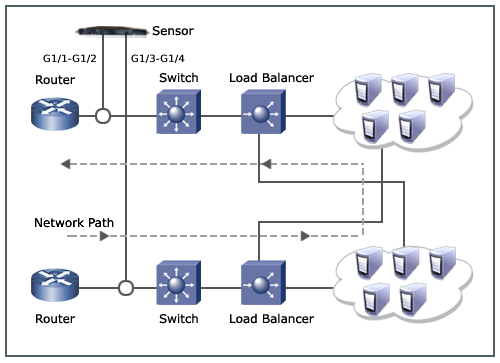

Interface groups in an asymmetric network
