The Manager Appliance front panel contains ports, LED lights for status and buttons to perform operations.
An optional lockable bezel is included with the Manager Appliance which can be installed to cover the front panel.

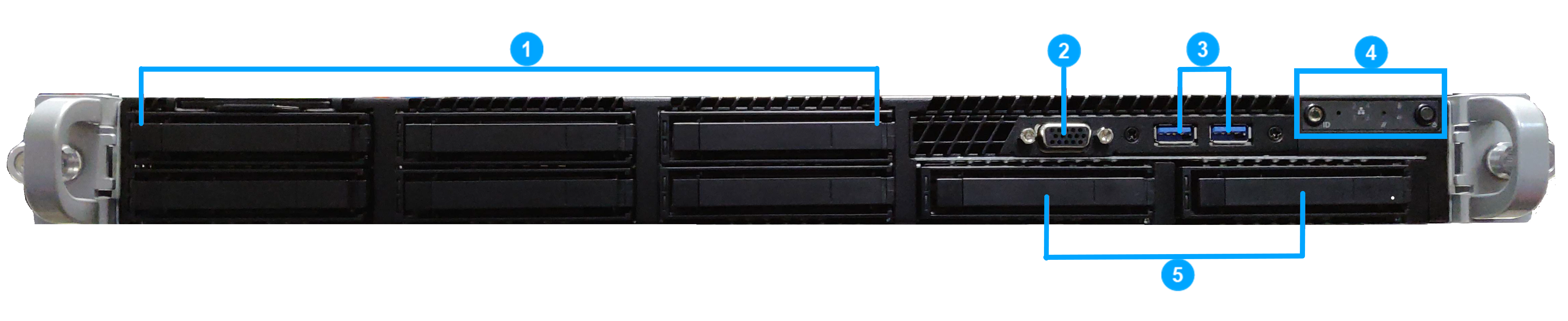

Manager Appliance Front Panel
.png "GUID-931A9FC3-7C78-4F2D-A880-FF17BBD99B65-low.png")
Item | Description |
|---|---|
1 | Drive bay (1, 2, 3, 4, 5, 6) configuration |
2 | Console port |
3 | USB ports |
4 | Front control panel |
5 | Drive bay (7, 8) configuration |

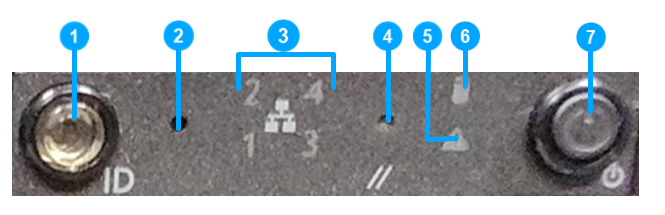

Front Control Panel
.png "GUID-FA24E1EE-85AC-4AE0-9EDA-490ECF660A6D-low.png")
Item | Description |
|---|---|
1 | System ID button integrated with LED |
2 | Non-maskable interrupt (NMI) button |
3 | Port activity LEDs:
|
4 | System Cold Reset Button |
5 | System status LED |
6 | Drive activity LED |
7 | Power button integrated with LED |
