Managing Certificates for Manager and Sensor

The Manager and Sensor can also use a CA-signed certificate to establish trusted connection. By default, the Manager and Sensor use a self-signed certificate to establish trust. You can also use a CA-signed certificate chain issued by trusted CAs, such as Verisign, GeoTrust, and others, to establish trust between the Manager and the Sensor.

Note

For non-certification, the CA-signed certificates can be assigned only when the Manager and Sensor are on version 10.1.

For certification, the CA-signed certificates can be assigned when the Manager and the Sensor are on version 9.1 or later.

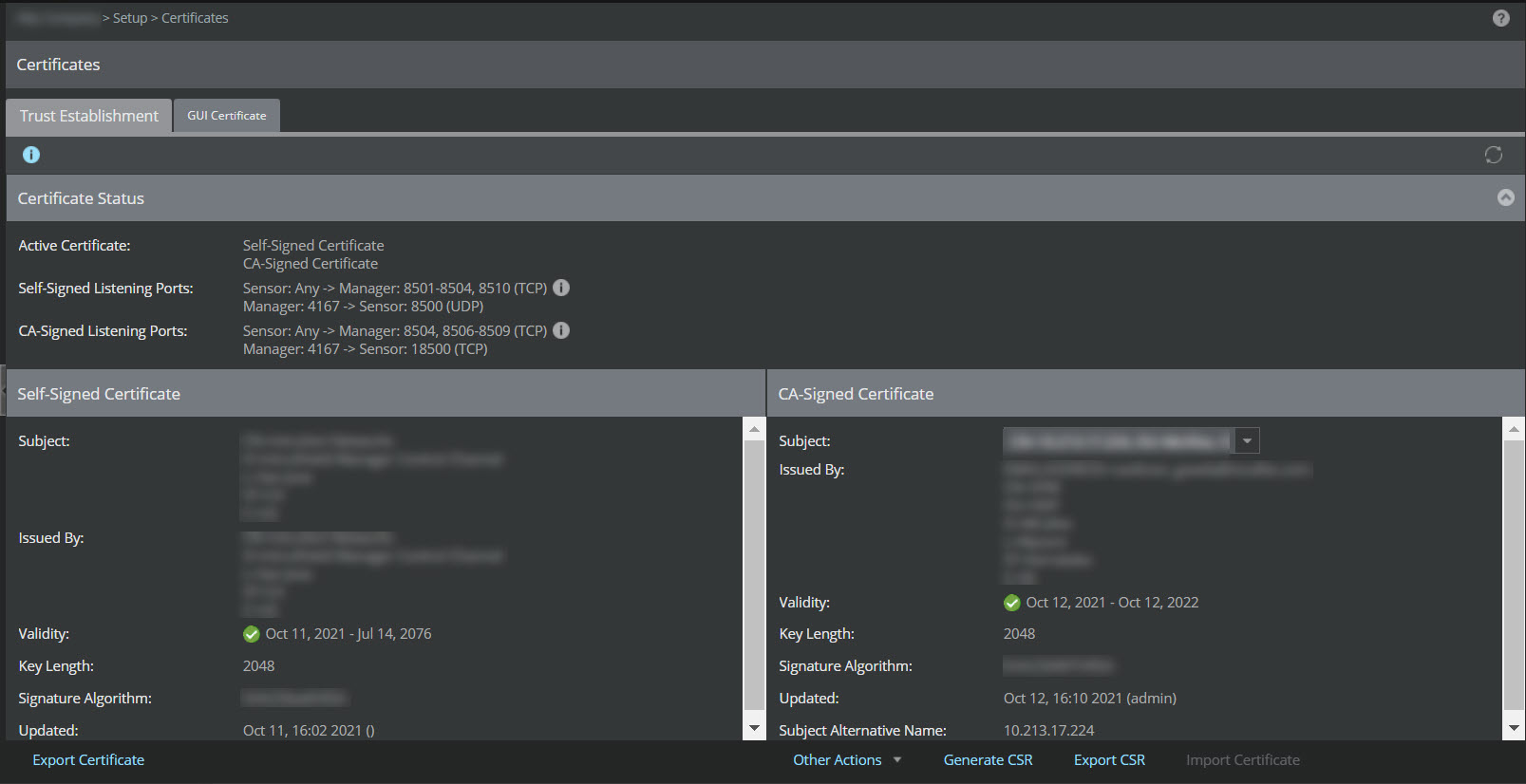

To manage the certificates for the Manager, go to Manager → <Root Admin Domain> → Setup → Certificates.

The Certificates page opens. It consists of following tabs:

Trust Establishment
GUI Certificate

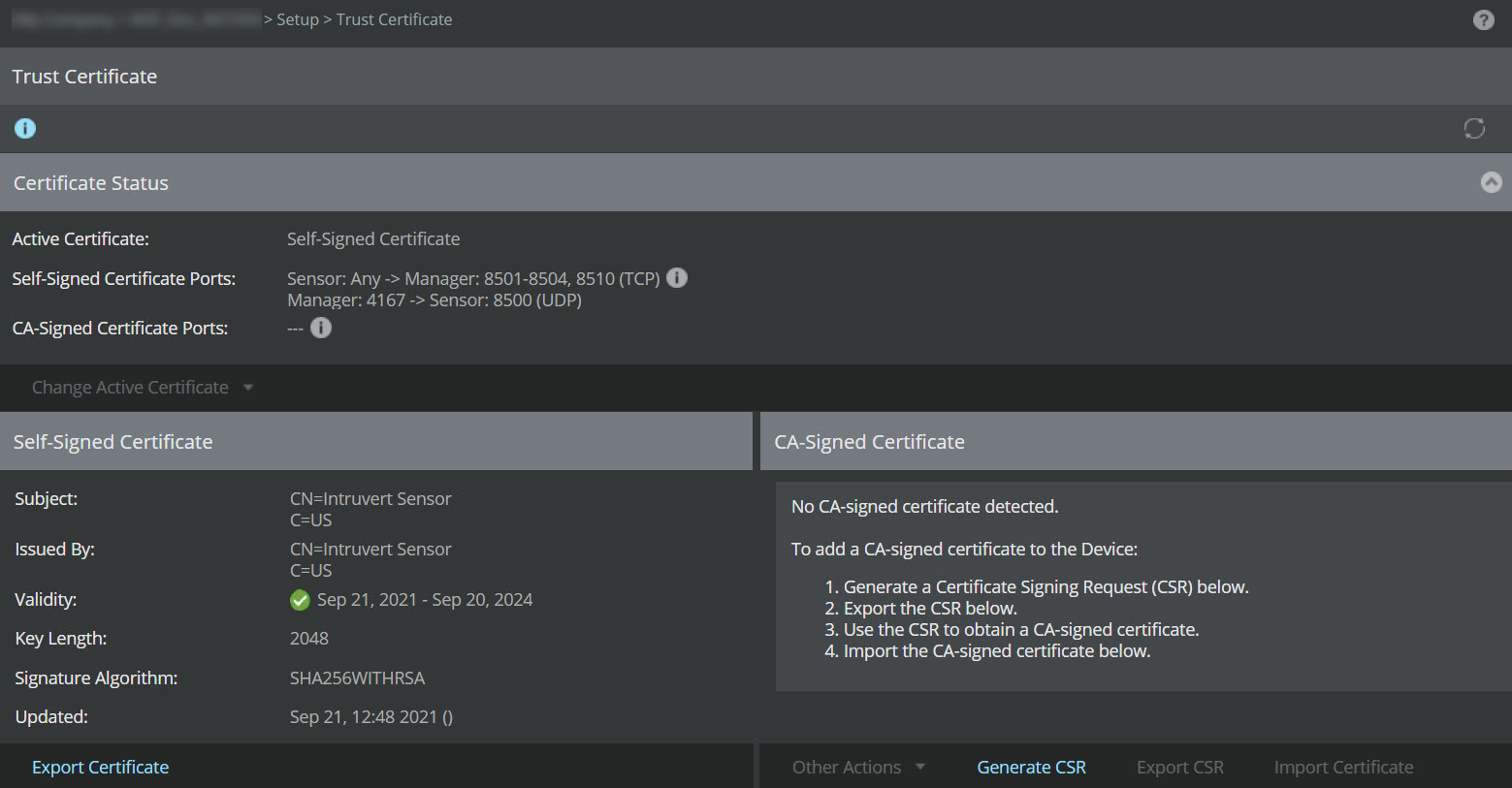

To manage the certificates for the Sensor, go to Devices → <Root Admin Domain> → Devices → <Device Name> → Setup → Trust Certificate.

The Trust Certificate page contains the following details:

Certificate Status

This section displays the following information:


Option	Definition
Active Certificate	Displays the type of the active certificate as either self-signed or CA-signed
Self-Signed Listening Ports	Ports used by the Manager to establish trust with Sensor when both use self-signed certificates
CA-Signed Listening Ports	Ports used by the Manager to establish trust with Sensor when both use CA-signed certificates

The action supported for Sensor in this section is:


Option	Definition
Change Active Certificate	Changes the active certificate of the Sensor from self-signed to CA-signed or CA-signed to self-signed

Self-Signed Certificate

This section displays the following information regarding the self-signed certificate issued by Trellix:


Option	Definition
Subject	Displays the following information about the certificate: Common Name Organization Department City State/Province Country
Issued By	Name of the signing authority for the certificate
Validity	Duration for which the certificate is valid
Key Length	Number of bits used in the cryptographic algorithm
Signature Algorithm	Signature Algorithm used for the certificate
Updated	Date when the certificate was last updated

The action supported for Manager and Sensor in this section is:


Option	Definition
Export Certificate	Exports the self-signed certificate to the remote machine accessing the Manager

CA-Signed Certificate

This section displays the following information regarding the CA-signed certificate:


Option	Definition
Subject	Displays the following information about the certificate: Common Name Organization Department City State/Province Country The drop-down list displays all certificates in the certificate chain.
Issued By	Name of the signing authority for the certificate
Validity	Duration for which the certificate is valid
Key Length	Number of bits used in the cryptographic algorithm
Signature Algorithm	Signature Algorithm used for the certificate
Updated	Date when the certificate was last updated

The actions supported for Manager and Sensor in this section are:


Option	Definition
Generate CSR	Generates the Certificate Signing Request (CSR). Note The CSR for both the Manager and the Sensor are generated in the Manager and is stored in the Manager database.
Export CSR	Exports the Certificate Signing Request (CSR) to the remote machine accessing the Manager
Import Certificate	Imports the CA-signed certificate from the remote machine accessing the Manager
Other Actions
Remove Certificate	Removes the CA-signed certificate
Export Certificate	Exports the CA-signed certificate

For more information about GUI Certificate, refer to GUI Certificate.
