Managing Certificates for Manager and Sensor

The Manager and Sensor can also use a CA-signed certificate to establish the trusted connection. By default, the Manager and Sensor use a self-signed certificate to establish trust. You can also use a CA-signed certificate chain issued by trusted CAs, such as Verisign, GeoTrust, and others, to establish trust between the Manager and the Sensor.

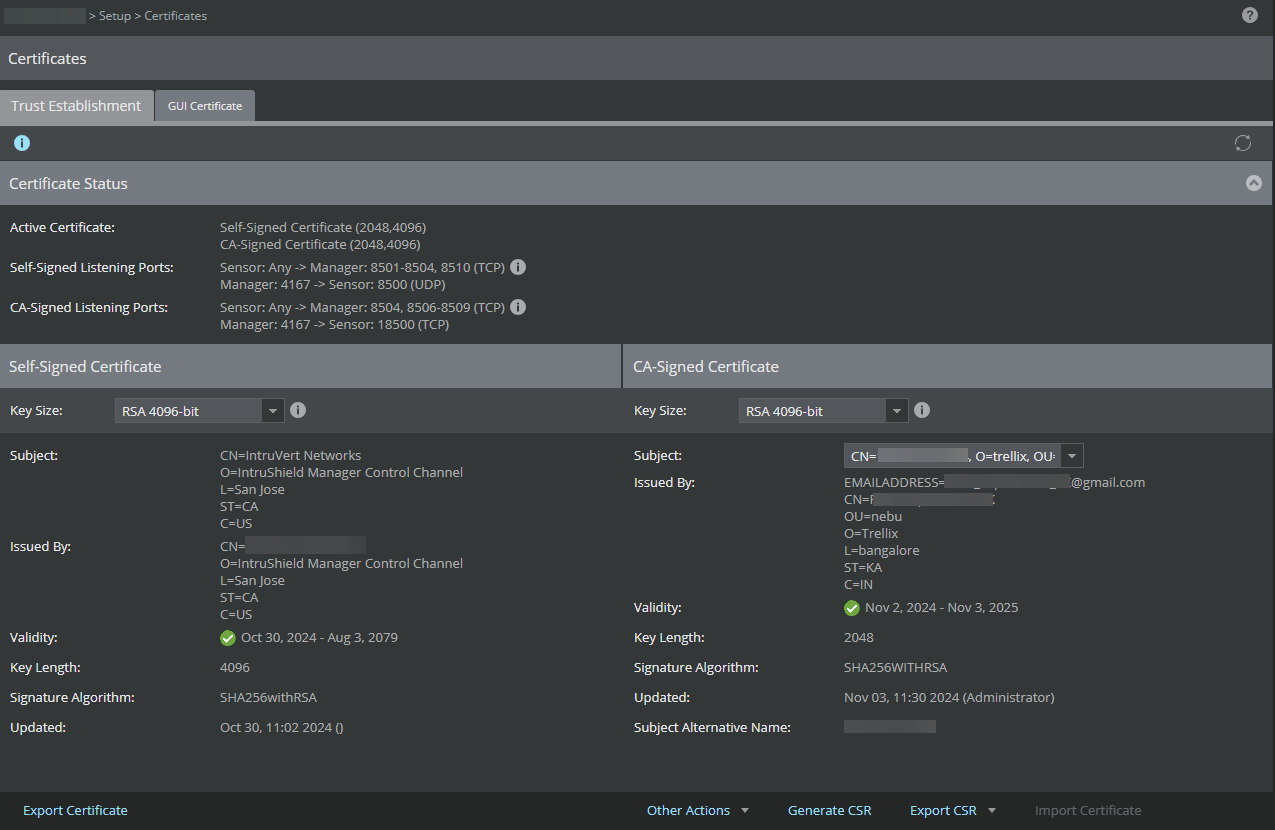

To manage the certificates for the Manager, go to Manager → <Root Admin Domain> → Setup → Certificates.

The Certificates page opens. It consists of the following tabs:

Trust Establishment
GUI Certificate

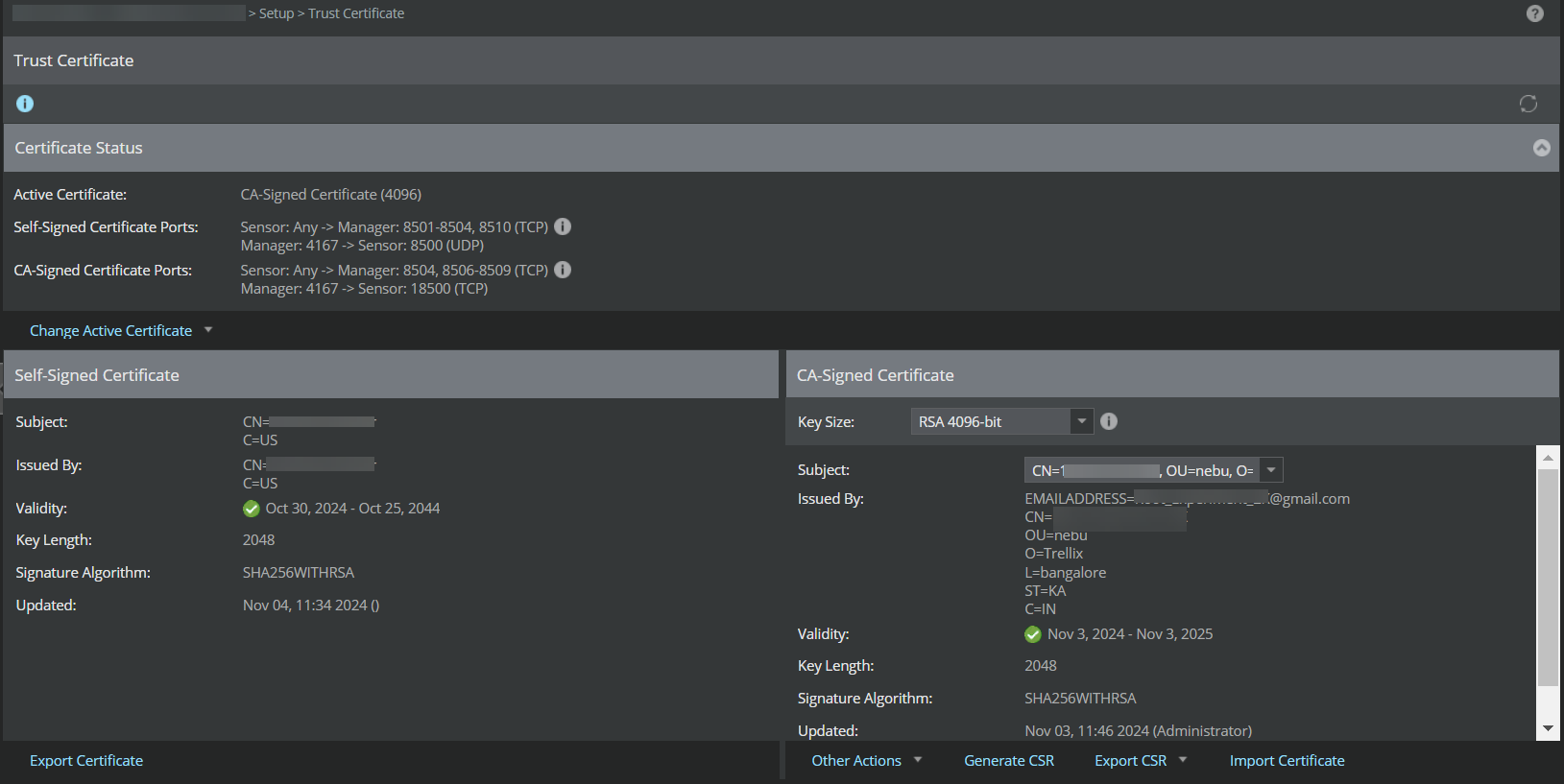

To manage the certificates for the Sensor, go to Devices → <Root Admin Domain> → Devices → <Device Name> → Setup → Trust Certificate.

The Trust Certificate page contains the following details:

Certificate Status

This section displays the following information:

Option	Definition
Active Certificate	Displays the type of the active certificate as either 2048-bit/4096-bit Self-Signed or 2048-bit/4096-bit CA-Signed
Self-Signed Listening Ports	Ports used by the Manager to establish trust with Sensor when both use Self-Signed certificates
CA-Signed Listening Ports	Ports used by the Manager to establish trust with Sensor when both use CA-Signed certificates

The action supported for Sensor in this section is:

Option	Definition
Change Active Certificate	Changes the active certificate of the Sensor from 2048-bit Self-Signed to 4096-bit Self-Signed, 2048-bit CA-Signed, or 4096-bit CA-Signed

Self-Signed Certificate

This section displays the following information regarding the Self-Signed certificate issued by Trellix:

Option	Definition
Key Size	Number of bits used in the RSA encryption
Subject	Displays the following information about the certificate: Common Name Organization Department City State/Province Country
Issued By	Name of the signing authority for the certificate
Validity	Duration for which the certificate is valid
Key Length	Number of bits used in the cryptographic algorithm
Signature Algorithm	Signature Algorithm used for the certificate
Updated	Date when the certificate was last updated

The action supported for Manager and Sensor in this section is:

Option	Definition
Export Certificate	Exports the self-signed certificate to the remote machine accessing the Manager

CA-Signed Certificate

This section displays the following information regarding the CA-signed certificate:

Option	Definition
Key Size	Number of bits used in the RSA encryption
Subject	Displays the following information about the certificate: Common Name Organization Department City State/Province Country The drop-down list displays all certificates in the certificate chain.
Issued By	Name of the signing authority for the certificate
Validity	Duration for which the certificate is valid
Key Length	Number of bits used in the cryptographic algorithm
Signature Algorithm	Signature Algorithm used for the certificate
Updated	Date when the certificate was last updated

The Sensor and Manager will connect with 2048-bit RSA self-signed certificates by default once trust is established. If the Manager and Sensor support 4096-bit RSA certificates, you can migrate to the required certificate from Change Active Certificate. Go to Devices → <Root Admin Domain> → Devices → <Device Name> → Setup → Certificates. In the Certificate Status section, click the Change Active Certificate drop-down and select the required certificate.

The Sensor and Manager will connect with 2048-bit/4096-bit RSA CA-signed based certificates after importing valid 2048-bit/4096-bit RSA CA-signed certificates in the Manager. You can migrate to any required certificate from Change Active Certificate. Go to Devices → <Root Admin Domain> → Devices → <Device Name> → Setup → Certificates. In the Certificate Status section, click the Change Active Certificate drop-down and select the CA-signed certificate.

Note
When deploying the device in a CC configuration, the administrator must use only the RSA 2048-bit key.

The actions supported for Manager and Sensor in this section are:

Option	Definition
Generate CSR	Generates the Certificate Signing Request (CSR). Note The CSR for both the Manager and the Sensor is generated in the Manager and is stored in the Manager database.
Export CSR	Exports the Certificate Signing Request (CSR) to the remote machine accessing the Manager
Import Certificate	Imports the CA-signed certificate from the remote machine accessing the Manager
Other Actions
Remove Certificate	Removes the CA-signed certificate
Export Certificate	Exports the CA-signed certificate

For more information about GUI Certificate, refer to CA-signed certificate for the Web Server Authentication.
