Sensors support four traffic types:
Dedicated
VLAN
Bridge VLAN
CIDR
By default, all interfaces monitor traffic in Dedicated mode: the interface monitors all transmissions without regard to network segmentation. Traffic segmentation by VLAN tag or CIDR addressing is supported. If your traffic is segmented into VLANs, for example between switches in a building, you can change the interface type to VLAN. More commonly, if you have used CIDR addressing in your network, changing the traffic type to CIDR helps you better protect specific networks/hosts in your system. For VLAN and CIDR interfaces, you are able to add the network IDs, either VLAN tags or CIDR addresses, in order to specify unique networks in your domain.
By segmenting the network traffic into VLAN or CIDR, the user has more flexibility in applying multiple policies to traffic subflows. This is accomplished by configuring one or more traffic subflows (VLAN tag(s)/CIDR block(s)) into a sub-interface.
A Bridge VLAN interface functions exactly like a VLAN interface except that post-IPS, if the traffic is OK, the Sensor changes the VLAN ID to that of the peer ID.
The VLAN Bridging feature enables you to subject inter-VLAN traffic to IPS with the least number of Sensors. You can also use the VLAN Bridging feature in conjunction with EtherChannel Load Balancing on your switches, to incrementally increase the IPS bandwidth of your Trellix IPS infrastructure.
Note
You cannot change the traffic type of an allocated interface. Since the interface has been allocated, it is the "virtual" property of the child domain. Therefore, full ownership cannot be granted. Only the admin domain in which the physical port(s) — thus interface — reside owns the interface and can make this type of change.
Caution
If you decide to again change your traffic type settings after having once changed from Dedicated to VLAN or CIDR, all of the previous configurations performed at the interface and sub-interface levels for the interface are erased in favor of the new configuration. This can affect many scenarios including the creation of a child admin domain to where an interface has been allocated.
To change the traffic type of an interface and add VLAN or CIDR network IDs, do the following:
For a standalone Sensor, select Devices → <Admin Domain Name> → Devices → <Device Name> → IPS Interfaces → <Interface_Name> → Properties.
For Sensors in a stack, select Devices → <Admin Domain Name> → Devices → <Device Name> → IPS Interfaces → <Stackname-node id> → <Interface_Name> → Properties.

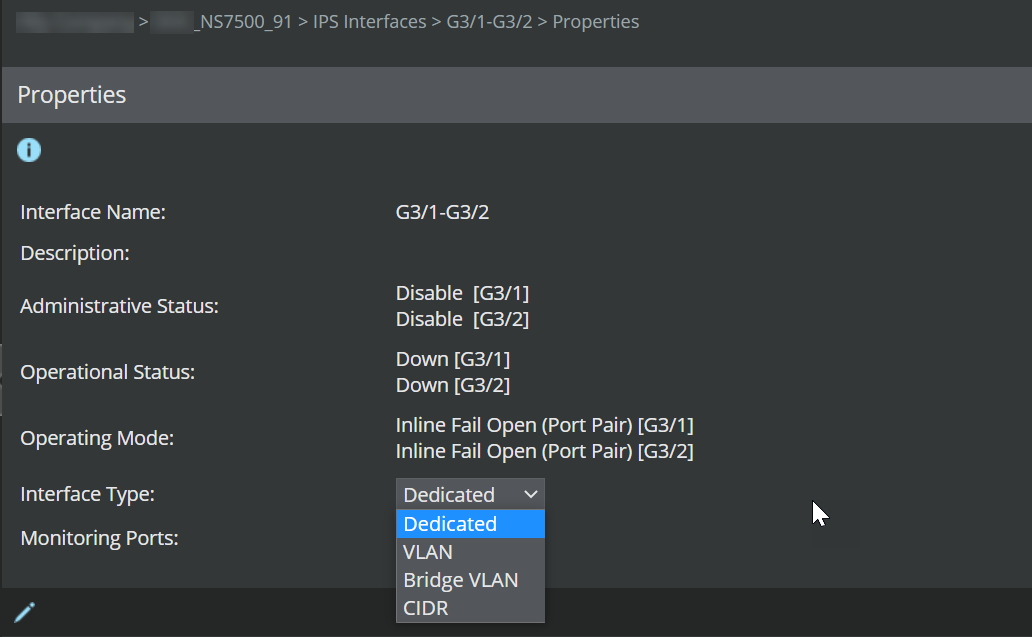

Manage Interface - changing traffic type.png "GUID-F5E142EE-30A6-4A3D-91C0-C572176DF51D-low.png")
Select the Interface Type as one of the following:
Dedicated: (default) no segmentation of traffic
VLAN: enables segment of interface into multiple networks by VLAN tags
Bridge VLAN: enables bridging of traffic between VLANs
Note
When the Sensor is down, the traffic is forwarded through the peer port with the same VLAN ID with which it came to the Sensor. So, if your switches are not configured to handle such a scenario, the packets may get dropped. You can set up a fail-over Sensor to mitigate this risk.
CIDR: enables segment of interface into multiple networks by CIDR addressing
If you selected VLAN or CIDR, go to Step 3. If you selected Dedicated, you are done.
Click
.png)
from the new VLAN or CIDR window to add the VLAN/CIDR IDs.(Optional) Clear the port number(s) and type new text in the Interface Name field. The custom name can have up to 45 alphanumeric characters including hyphens, underscores, and periods. The text you enter appears under IPS Interfaces where the interface node is located; the physical port number is still listed in parentheses at the end of your text. For example, if you typed "VLANs 1-5" as the Interface Name for port pair G3/1-G3/2, IPS Interfaces list the node as VLANs 1-5(G3/1-G3/2).
Note
If you had changed the Interface Name earlier and if you want to restore the default, click Reset Name to Default. This action has no effect on the Description field.
Note
If you have given a custom name to an interface and later allocated the interface to a child domain, the custom name is not inherited by the child.

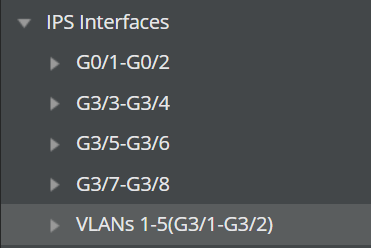

Interface name change under IPS Interfaces.png "GUID-1128231D-FE44-45F8-96F3-DD0195C4FC18-low.png")
(Optional) Type an interface Description. This text does not display under IPS Interfaces, only in the interface detail. A unique description can only be entered when the interface type has been changed to VLAN or CIDR.

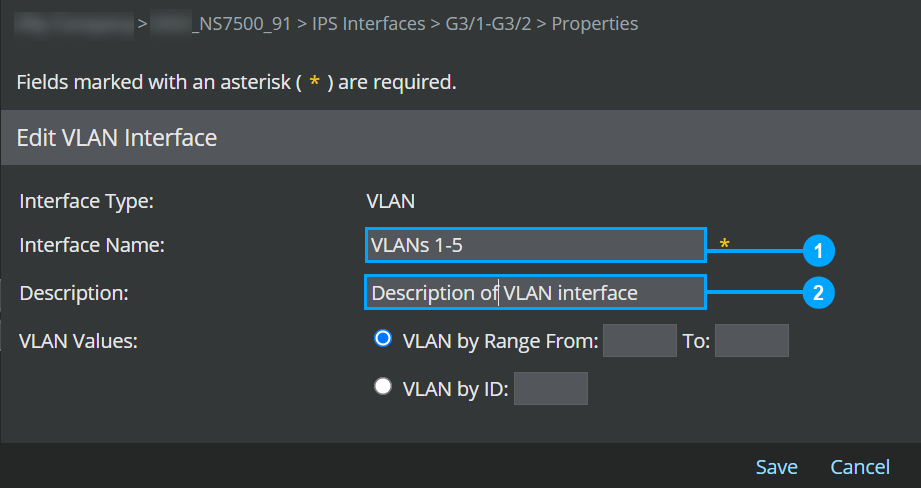

Edit VLAN IDs.png "GUID-9F69801D-0EFE-409F-B6C9-7C0316750746-low.png")
Item
Description
1
Custom name (default is port number). This name appears under IPS Interfaces.
2
Only appears in interface description dialog
Add the VLAN/CIDR IDs you want to monitor.
For VLAN, you can type the VLAN tags by range or by individual ID. The valid range is 0 to 4095, and the maximum number of VLAN tags per interface is 254. If you create a sub-interface and assign all the 254 VLANs to the sub-interface, you can create more number of VLANs in the interface.
For CIDR, type the network IP Address in the text box provided and the mask length value in the box provided after the forward slash, and click Add to List. This network address must follow standard CIDR addressing rules (correct IP and mask length combination) to be valid. For example, in the figure below, the CIDR range of 10.2.2.2/5 is about to be added to the selected interface.

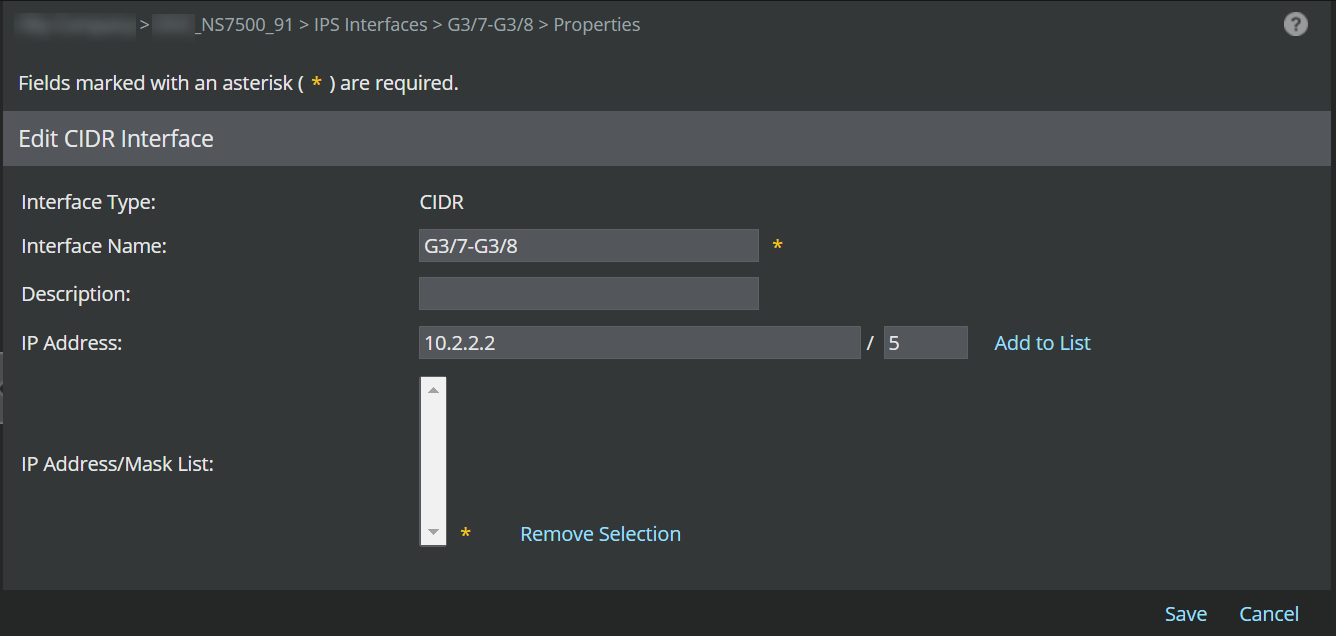

Edit CIDR Interface.png "GUID-E6BD38B0-16AC-425F-B1B5-CE3C1FD50476-low.png")
Tip
If you are unsure about your exact VLAN/CIDR IDs and you do not enter IDs, you can always add your IDs later.
Click Save to save your interface additions; click Cancel to abort.
Download the changes to your Sensor by clicking Deploy Pending Changes.
