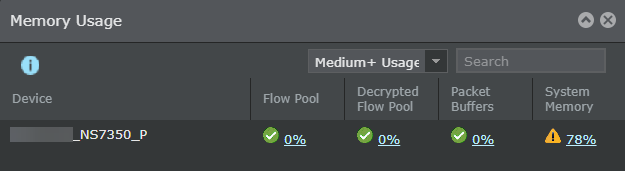

The Memory usage monitor enables you to view the memory utilization.
Device—The name of the Sensor as mentioned in the Devices page.
Flow Pool—The percentage of the TCP and UDP flow used by the Sensor.
Decrypted Flow Pool—The percentage of SSL flows used by the Sensor.
Packet Buffers—The percentage of the packet buffer used by the Sensor.
System Memory—The percentage of the control path system memory used by the Sensor.
Note
By clicking the hyperlink in any of the categories, you will be redirected to the Performance Charts page.
Sometimes the hyperlinks may not be available for some options if the option is not applicable to the configured Sensor.
To view the details of both medium and high memory usage, select the option Medium+ Usage from the drop-down list. To view the details of only the high memory usage, select the option High Usage from the drop-down list. To view the details of low, medium and high memory usage, select Low+ Usage.
Note
To filter the display of memory usage based on a device name, use the Search text field option.
