Monitoring traffic in NTBA Appliance

You can monitor traffic per NTBA Appliance to check if traffic is going through the device, zone, or its exporter's interface.

1. Select Devices → Devices → <NTBA Appliance> → Troubleshooting → Traffic Throughput.
   The Traffic Throughput page is displayed. By default Device is selected.

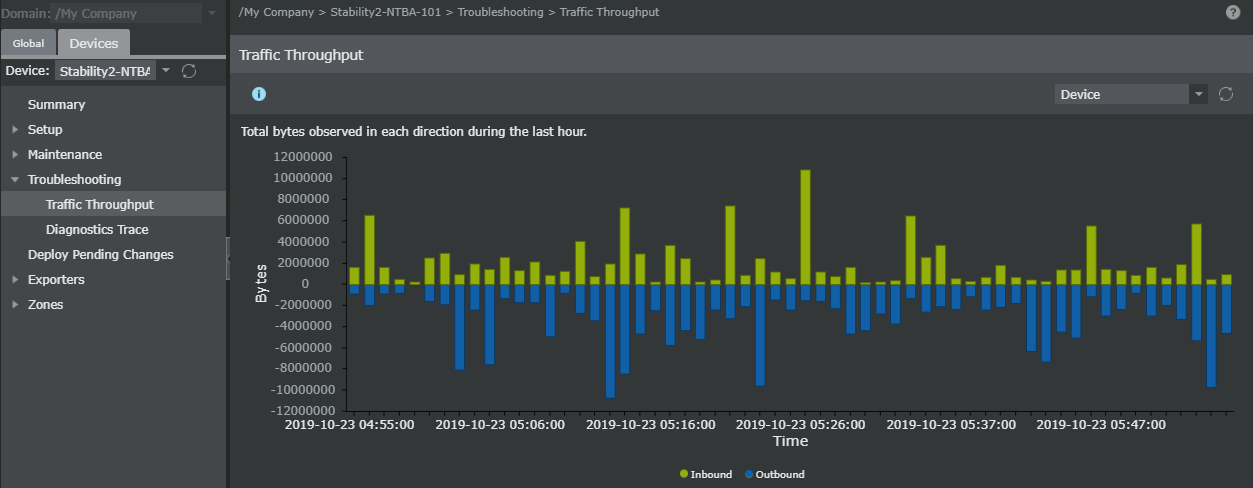

2. Select Device to generate a bar graph showing the total bytes observed in each direction for the last hour.
3. Select Zones to display the throughput for each zone in each direction with the time when the last packet was seen on that zone.
   You can use the Search field to search by a particular zone of the device.
4. Select Exporters to display the combination of exporter and interface, its line speed, and the utilization percentage in each direction.
   You can use the Search field to search by a particular zone of the device.
