QSFP+ 850nm optical transceiver module

  • Published on Oct 1, 2026
  • 1 minute(s) read
Prev Next

Trellix's IAC-QSFP-FOT Quad Small Factor Pluggable (QSFP+) transceiver modules are designed for use in 40 Gbps links over multimode fiber. They are compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.

Main features of the QSFP+ module include the following:

  • Hot-pluggable QSFP+ form factor

  • Four-Channel full-duplex transceiver module

  • Maximum link length of 100 m on OM3 MMF and 150 m on OM4 MMF

  • Multirate capacity; 1.06 Gbps to 10.5 Gbps per channel

  • Maximum power dissipation <1.5W

  • Single 1x12 MPO receptacle

  • Supports Trellix ID feature that helps enable NS-series Sensor to identify whether the module is a Trellix certified and tested QSFP+

  • Built-in digital diagnostics functions

  • RoHS-6 compliant (lead-free)

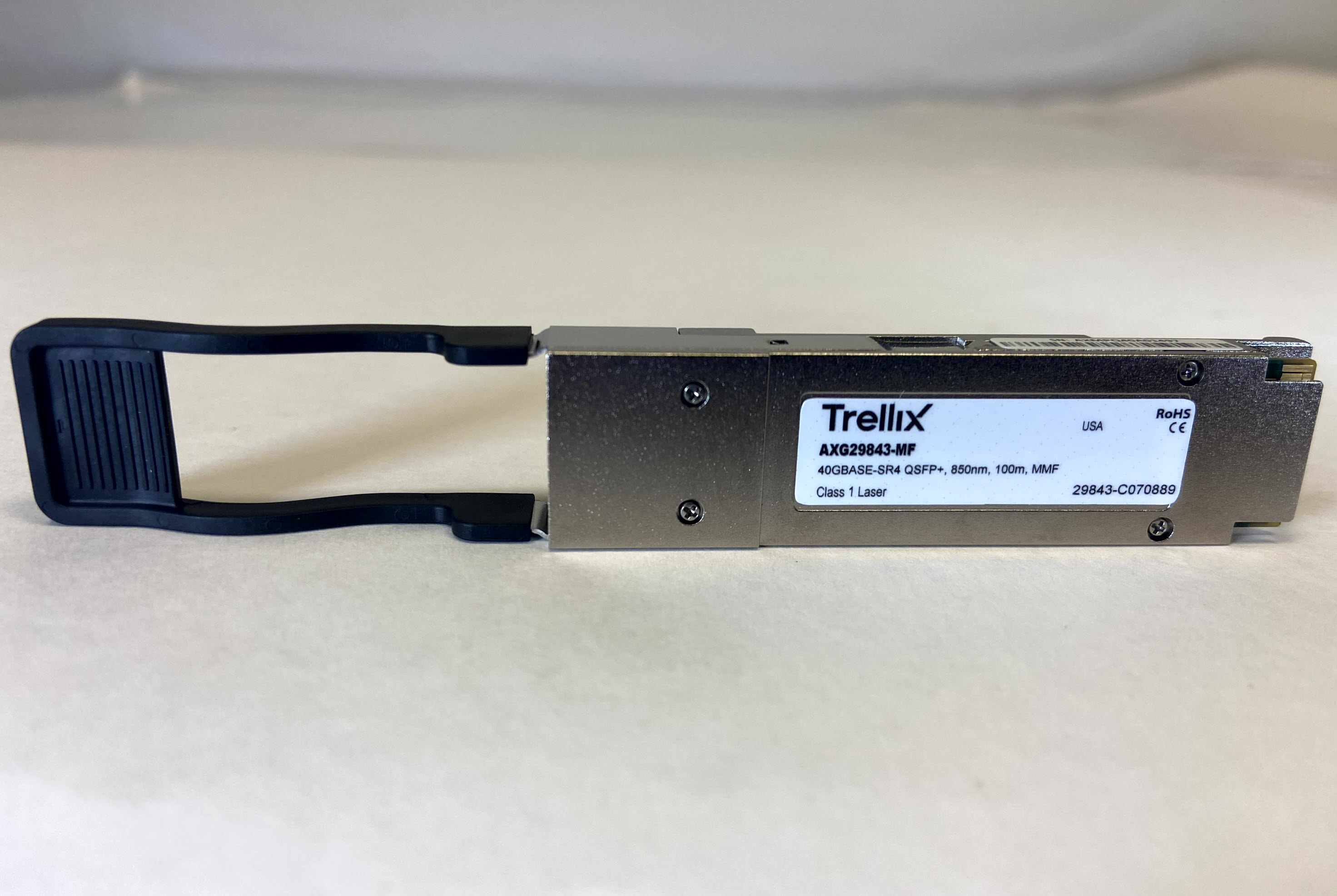

850nm QSFP+
850nm QSFP+
