QSFP28 850nm optical transceiver module

  • Published on Oct 1, 2026
  • 1 minute(s) read
Prev Next

Trellix's IAC-QSFP28-FOT Quad Small Factor Pluggable (QSFP28) transceiver modules are designed for use in 100 Gbps links over multimode fiber. They are compliant with QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4.

Main features of the QSFP28 module include the following:

  • Hot-pluggable QSFP28 form factor

  • Four-Channel full-duplex transceiver module

  • Maximum link length of 100 m on OM4 MMF with FEC enabled

  • Supports 103.1 Gbps aggregated bit rate - 4 channels of 25 Gbps

  • Maximum power dissipation <2.5W

  • Single 1x12 MPO receptacle

  • Supports Trellix ID feature that helps enable NS-series Sensor to identify whether the module is a Trellix certified and tested QSFP28

  • Built-in digital diagnostics functions

  • RoHS-6 compliant (lead-free)

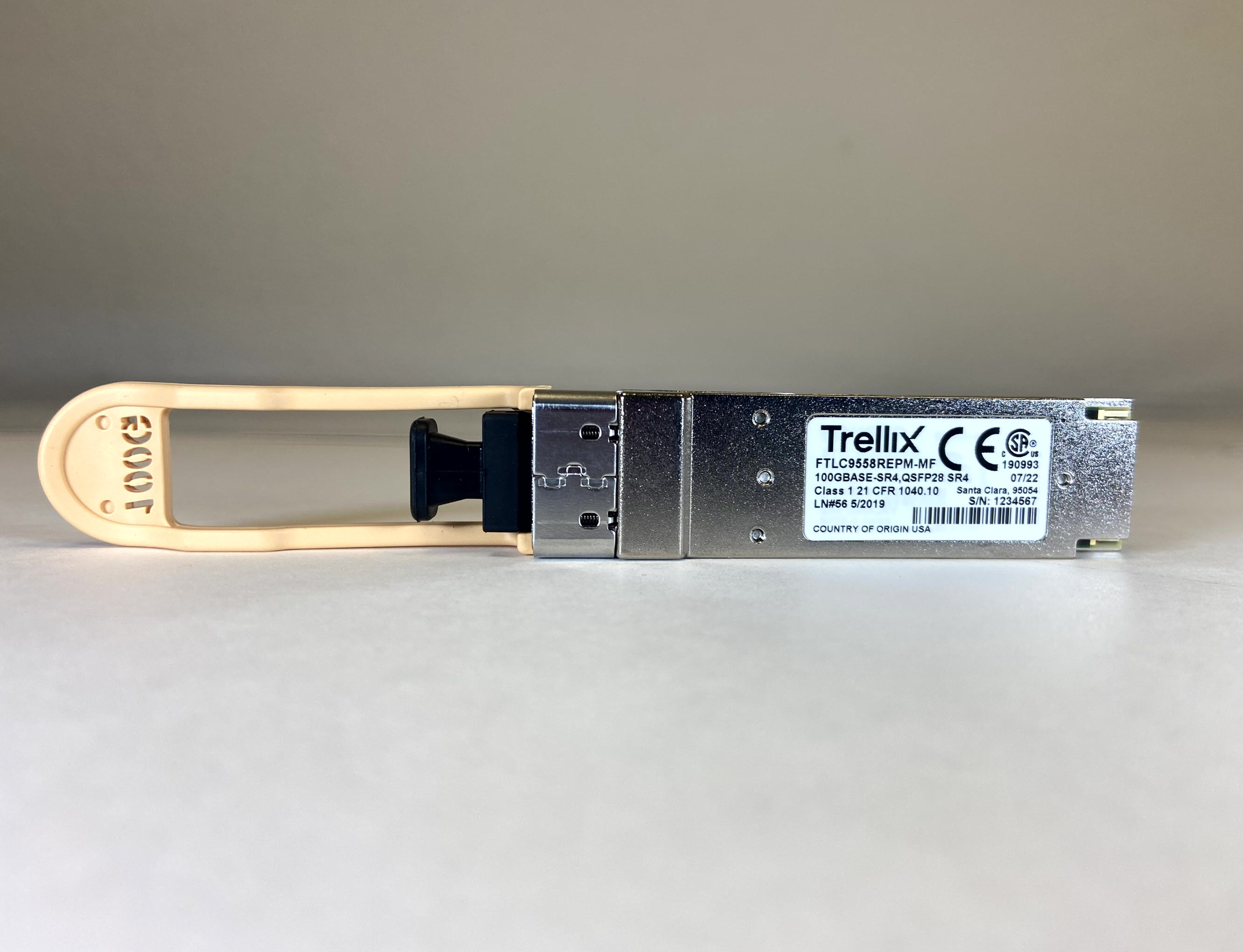

850nm QSFP28 transceiver module
850nm QSFP28 transceiver module
