Refreshing a CRL file using the configuration menu

Use the menu options in this section to refresh a local Certificate Revocation List (CRL) file by downloading a new file from a specified remote location so that the NDR appliance can validate certificate revocation. Only one CRL file can be present on the system. When you download a new CRL file, the existing CRL file is automatically deleted.

Note

You must specify the URL of the direct path to the certificate file.

To refresh a local CRL file:

Log in to the NDR as npadmin using the NDR IP address or FQDN. For example:
$ ssh npadmin@10.1.0.1
or
$ ssh npadmin@exampleFQDN
Enter privileged mode:
npadmin@ia> enable
Enter the npadmin password. The password can be 5 to 24 characters long.
[sudo] password for npadmin: <password>
Enter configuration mode:
npadmin@ia# configure system
Enter configuration CAC menu.
npadmin@ia(config)# authentication
In the CAC/PIV configuration menu, select 2 to configure the current authentication method.

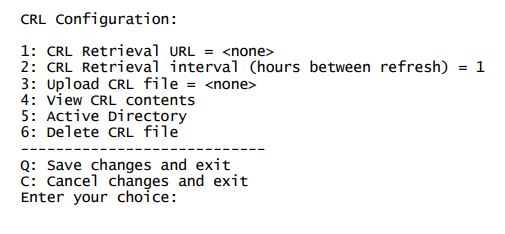

In the PKI Configuration menu, select 3 to enter the CRL Configuration menu. The following appears:
Select 2 to configure the CRL retrieval interval.
Select Q to save your changes and exit the menu
