Requirements to deploy Trellix vIPS in AWS environment

The following table lists the requirements to deploy Trellix vIPS in the AWS environment.


Requirement	Purpose	Privileges/ Other requirements
AWS GUI access	To launch Trellix vIPS AMIs and configure setup	Identify the AMI instance for deployment Identify the instances to be protected Create IAM role to discover AWS instances The IAM role must have permission to launch EC2 instances
AWS access key and secretkey	To establish communication between the Trellix IPS Manager and AWS environment Note Trellix recommends you to use the IAM role method to establish communication between the Manager and the AWS environment.
Trellix IPS Manager AMI	To install the Manager
Controller AMI	To install an external Controller
Trellix vIPS instance AMI	To install Virtual IPS Sensor
Web server (or) instances to be protected	To install vIPS Probes	Admin privileges in the Operating System

An IAM role with a minimum of the following permissions must be created. It will be assigned to the Manager/local controller or vIPS External Controller:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "ec2:DescribeInstances",
                "ec2:DescribeRegions"
            ],
            "Resource": "*"
        }
    ]
}

The following table lists the requirements of different vIPS solution components for the deployment of Trellix vIPS in the AWS environment.


Component	AWS Instance Type	Software Requirements	Network Requirements	Other Requirements
Manager	m4.xlarge/c4.xlarge	MLOS	1 Network Interface (management subnet)	The instance should be EBS-optimized.
External Controller	c4.large	Controller AMI	1 Network Interface (management subnet)	The instance should be EBS-optimized.
Sensor	c4.xlarge/c5.xlarge	Trellix vIPS instance AMI	1 Network Interface (management and data subnet)	Internet access is required to access AWS APIs.
Probe	Any	Customer Supplied	1 or more (see deployment) Use public IP address or NAT gateway to access Controller EIP	No overlapping CIDR blocks across protected VPCs. VPC peering required for the data subnet. Access to the OS distribution repository is required to install vIPS Probe. This can be a local repository or the public Internet.

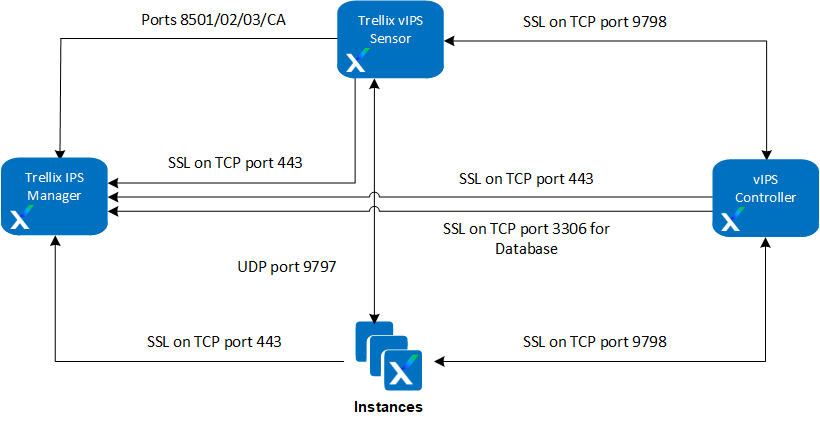

The following table lists the ports for security group settings required to deploy Trellix vIPS in the AWS environment. For more information about ports used by the IPS, see KB59342.


		Ports	Purpose	Source/Destination
Manager	Inbound rules	8501–8504, 8506–8510	TCP ports used to install the Sensor, send alerts and packet captures to the Manager, and transfer files between them.	Sensor
		9798	TCP port used to communicate Probe state and configuration. This is applicable only when the local Controller is used.	Probe, Sensor
		443	TCP port used for: Controllers to register with the Manager Sensors and Probes to discover registered Controllers Web UI access on the Manager	Sensor, Controller, Probe
		22	TCP port used for Manager CLI access (via SSH).	---
		3306	TCP port used for database access by External Controllers to store and retrieve Probe data. This is applicable only when an External Controller is used.	Controller
	Outbound Rules	443	TCP port used by the local Controller to connect to the Amazon EC2 endpoint and discover cloud resources. This is applicable only when the local Controller is used. For more information on Amazon EC2 endpoints, refer to the AWS documentation.	EC2 Endpoint
	Outbound Rules	8500	UDP port used by the Manager to make real-time configuration changes on the Sensor.	Sensor
Local/External Controller	Inbound rules	9798	TCP port used to communicate Probe state and configuration.	Sensor, Probe
	Inbound rules	22	TCP port used for Controller CLI access.	---
	Outbound Rules	443	TCP port used to: Register with the Manager Connect to the Amazon EC2 endpoint and discover cloud resources For more information on Amazon EC2 endpoints, refer to the AWS documentation.	Manager, EC2 Endpoint
	Outbound Rules	3306	TCP port used for database access by External Controllers to store and retrieve Probe data. This is applicable only when an external Controller is used.	Manager
Sensor	Inbound rules	8500	UDP port used by the Manager to make real-time configuration changes on the Sensor.	Manager
		9797	UDP port used by Probes to forward traffic to the Sensor for inspection.	Probe
		22	TCP port used for Sensor CLI access.	---
	Outbound Rules	8501-8504, 8506-8510	TCP ports used to install the Sensor, send alerts and packet captures to the Manager, and transfer files between them.	Manager
		443	TCP port used to discover registered Controllers.	Manager
		9798	TCP port used to communicate Probe state and configuration.	Controller
Probe	Inbound rules	No ports required for inbound.	---	---
	Outbound Rules	9797	UDP port used by the Probe to forward traffic to Sensors for inspection.	Sensor
		443	TCP port used to discover registered Controllers and Sensors.	Manager
		9798	TCP port used to communicate Probe state and configuration.	Controller
