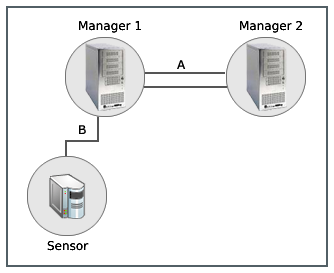

Scenario 1
Two Managers are in an MDR pair, and you are adding the Sensor configuration information in Manager 1.
.png "GUID-245E78BA-0ADD-400F-A063-AC01A04FCD13-low.png")
If connection A between Manager 1 and Manager 2 is over IPv4 network, and you are adding Sensor configuration in Manager 1, the communication between Manager 1 and Sensor (that is, connection B) should also be over IPv4 network.
Similarly, if connection A between Manager 1 and Manager 2 is over IPv6 network, and you are adding Sensor configuration in Manager 1, the communication between Manager 1 and Sensor (that is, connection B) should also be over IPv6 network.
If connection A between Manager 1 and Manager 2 is over both IPv4 and IPv6 networks, and you are adding Sensor configuration in Manager 1, the communication between Manager 1 and Sensor (that is, connection B) can be configured over either IPv4 or IPv6 network.

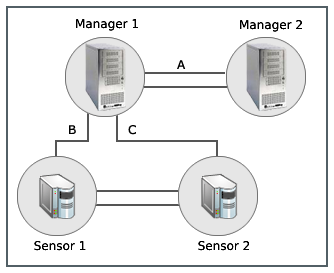

Scenario 2
Suppose Manager 1 is standalone (not part of an MDR pair), and you want to add a peer Manager (that is, Manager 2) with Manager 1 to form an MDR pair.
.png "GUID-8FEB63F2-5165-4E7B-9ACE-1F7E5EACEDC3-low.png")
If the communication between Sensors and Manager 1 (that is, connection B and C) is over IPv4 network, the communication between Manager 1 and Manager 2 (that is, connection A) should also be configured for IPv4 network.
Similarly, if the communication between Sensors and Manager 1 (that is, connection B and C) is over IPv6 network, the communication between Manager 1 and Manager 2 (that is, connection A) should also be configured for IPv6 network.
If B and C support both IPv4 and IPv6 networks, A can be configured to support either IPv4 or IPv6 network.
