Set the CPU usage threshold for devices within a child domain

Select Devices → <Child Admin Domain Name> → Global → Common Device Settings → Performance Monitoring → Thresholds.

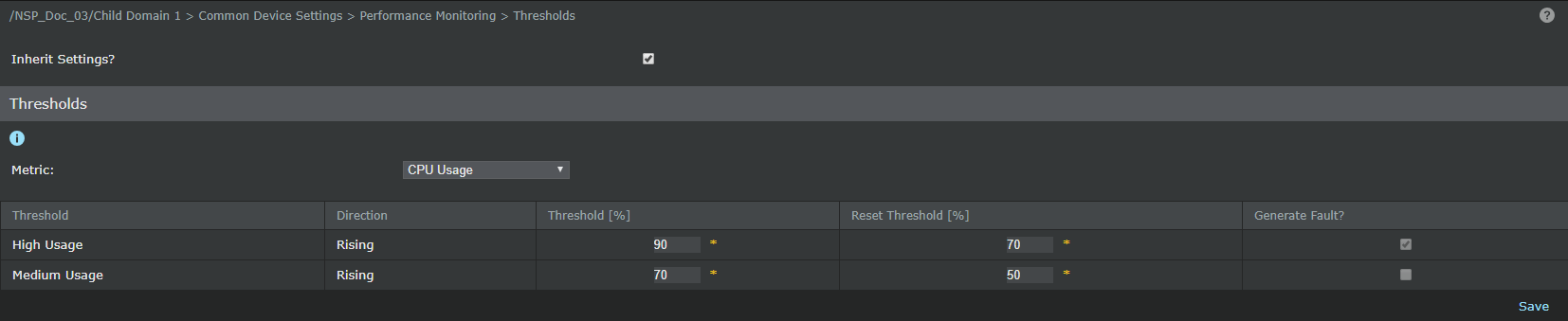

Thresholds area

Select CPU Usage in the drop down list against Metric.

Enter the required threshold percentage in the Threshold [%] column (this value should be higher than the value in the Reset Threshold [%] column).

Select the Generate Fault? checkbox to enable generation of fault. Deselect the Generate Fault? checkbox to disable generation of fault.

Click Save to save your settings.

Note

Click Defaults to set the threshold settings to the default values. The threshold values can be changed only if the checkbox against Inherit Settings? is deselected. If this checkbox is checked the settings from the parent admin domain are automatically inherited.
