Set the CPU usage threshold for the admin domain

Follow this procedure for setting the CPU usage threshold for all devices that belong to the root admin domain.

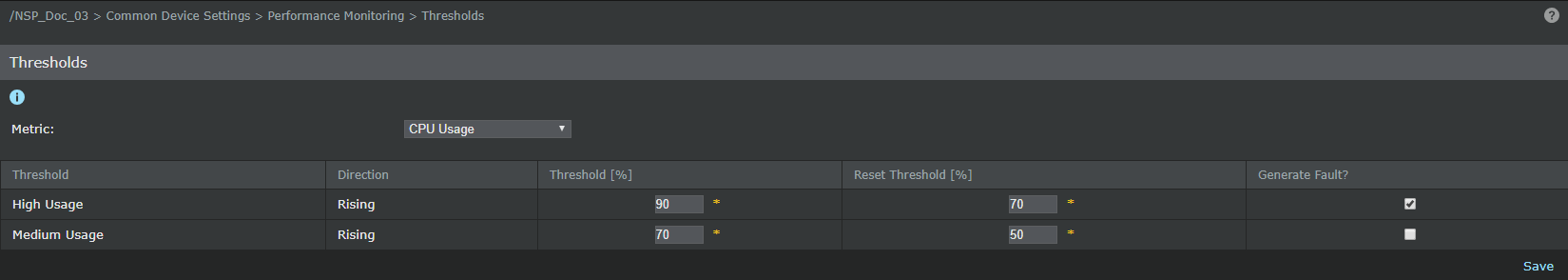

1. Select Devices → <Admin Domain Name> → Global → Common Device Settings → Performance Monitoring → Thresholds.





2. Select CPU Usage in the drop down list against Metric.
3. Enter the required threshold percentage in the Threshold [%] column (this value should be higher than the value in the Reset Threshold [%] column).
4. Select Generate Fault? to generate fault.
5. Click Save to save your settings.

   Note

   Click Defaults to set the threshold settings to the default values
