Set the L2 error drop threshold for devices within the admin domain

Follow this procedure for setting the L2 Drop threshold for devices within the admin domain.

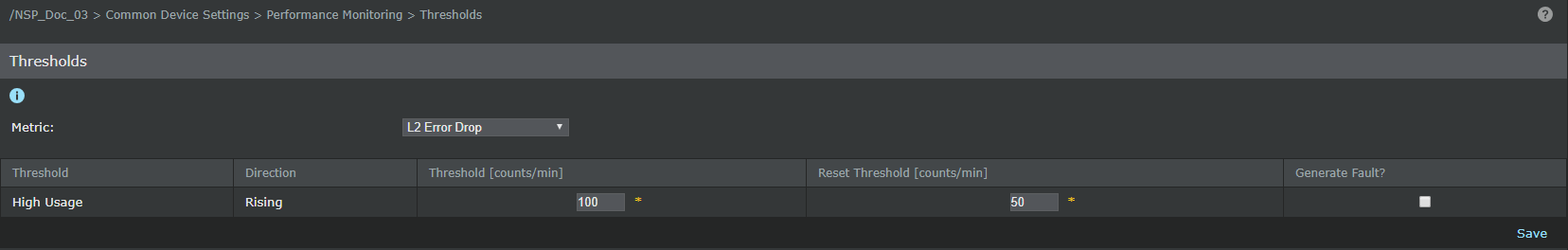

1. Select Devices → <Admin Domain Name> → Global → Common Device Settings → Performance Monitoring → Thresholds.





2. Select L2 Error Drop in the drop down list against Metric.
3. Enter the required threshold in the Threshold [counts/min] column (this value should be higher than the value in the Reset Threshold [counts/min] column).
4. Select Generate Fault? to generate fault.
5. Click Save to save your settings.

   Note

   Click Defaults to set the threshold settings to the default values.
