Set the memory usage threshold for the admin domain

Follow this procedure for setting the memory usage threshold for all devices that belong to the root admin domain.

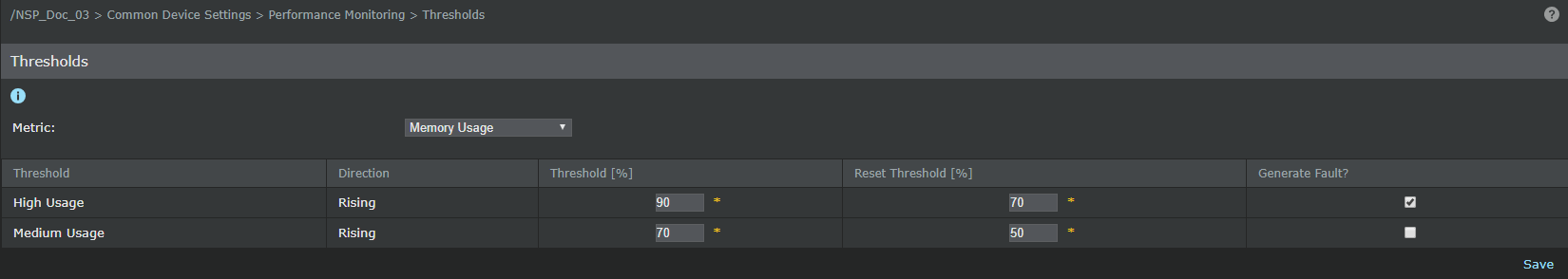

1. Select Devices → <Admin Domain Name> → Global → Common Device Settings → Performance Monitoring → Thresholds.





2. Select Memory Usage in the drop down list against Metric.
3. Enter the required threshold percentage in the Threshold [%] column (this value should be higher than the value in the Reset Threshold [%] column).
4. Select the Generate Fault? checkbox to generate fault. Deselect the Generate Fault? checkbox to disable generation of fault.
5. Click Save to save your settings.

   Note

   Click Defaults to set the threshold settings to the default values
