Port throughput usage is configurable for specific devices within a given network domain. Follow this procedure for setting the port throughput usage threshold for each device within a domain.

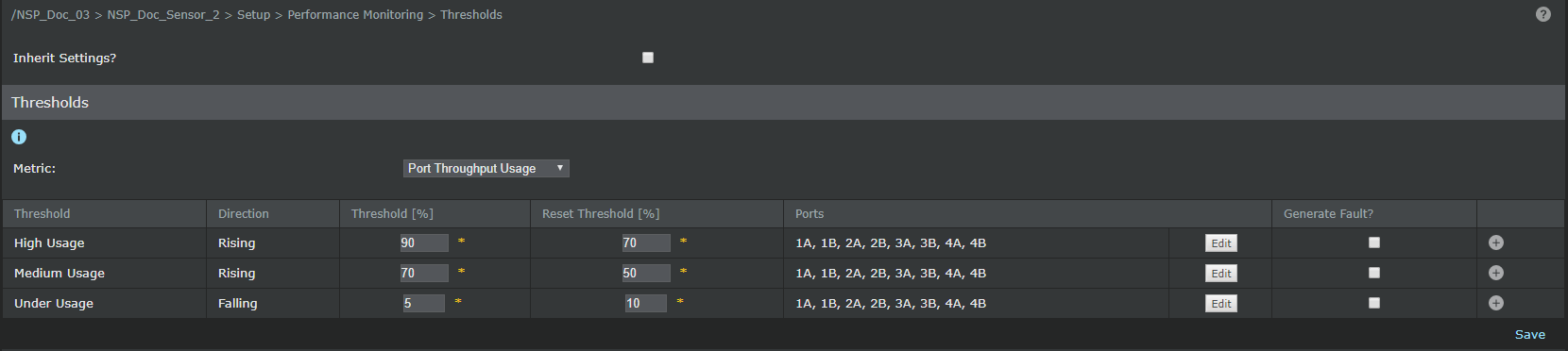

Click Devices → <Admin Domain Name> → <Device Name> → Setup → Performance Monitoring → Thresholds.
Thresholds area.png "GUID-EAE64535-FB31-4FAF-B4E6-A685E2AF6193-low.png")
Select Port Throughput Usage in the drop down list against Metric.
Enter the required threshold percentage in the Threshold [%] column (this value should be higher than the value in the Reset Threshold [%] column).
Click
.png)
against a row to clone that row.In the Ports column, click
.png)
to assign or remove the port values in the Assign Ports window.Note
If none of the ports are selected, the threshold is applied to all the ports. In such a case, the Ports column displays All Ports.
Select the Generate Fault? checkbox to generate fault. Deselect the Generate Fault? checkbox to disable generation of fault.
Click Save to save your settings.
Note
Click on Defaults to set the threshold settings to the default values. Under Usage in the context of the Throughput Usage threshold is a 'falling threshold'. Alarm is generated when the Throughput % drops below a certain value. This is helpful on very busy networks, where a certain amount of traffic is always expected to be seen. This type of alarm is a good indication that there is a communication problem on the network.
Note
Port Throughput Usaage metric is applicable at device level configuration but not at admin domain level.
