SFP+ 850nm optical transceiver module

  • Published on Oct 1, 2026
  • 1 minute(s) read
Prev Next

Trellix's IAC-SFTSR-FOT 10 Gbs enhanced Small Factor Pluggable (SFP+) transceivers are designed for use in 10 Gigabit Ethernet links over multimode fiber.

Main features of the SFP+ Module include the following.

  • Maximum link length of 300 m on 2000 MHz-km MMF

  • Supports 9.95 to 10.5 Gbps bit rates

  • Hot-pluggable SFP+ footprint; smallest 10 G form factor

  • Duplex LC connector

  • Supports Trellix ID feature that enables NS-series Sensor to identify whether the module is a Trellix certified and tested SFP+

  • Built-in digital diagnostics functions

  • RoHS-6 compliant (lead-free)

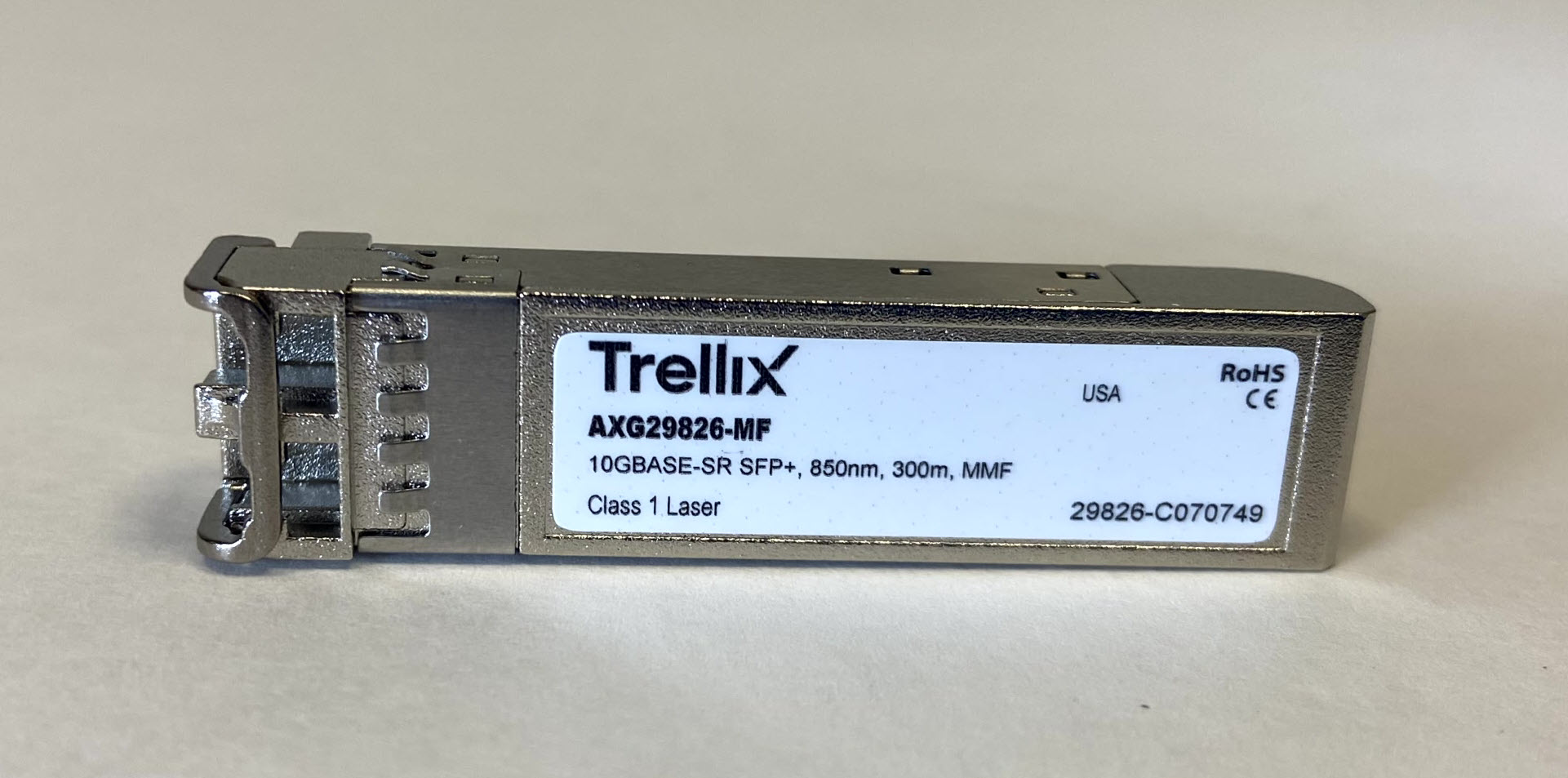

850nm SFP+
850nm SFP+
