SFP 850nm optical transceiver module

  • Published on Oct 1, 2026
  • 1 minute(s) read
Prev Next

ITV-2KSG-NA-100 Small Form Factor 1Gbps (SFP) transceiver from Trellix is compliant with the current Multi-Source Agreement (MSA) specification. The SFP compiles with 1-Gigabit Ethernet 1000BASE-SX per IEEE 802.3z.

The main features of the SFP module are the following.

  • Supports 1.25 GBd Gigabit Ethernet bi-directional data links

  • Hot-pluggable SFP footprint; plugs into SFP port of Trellix Sensors

  • Maximum link length of 550 m on 50/125um MMF or up to 300 m on 62.5/125um MMF

  • Duplex LC connector

  • Supports Trellix ID feature that enables Trellix Sensors to identify whether the module is a Trellix certified and tested SFP

  • Built-in digital diagnostics functions

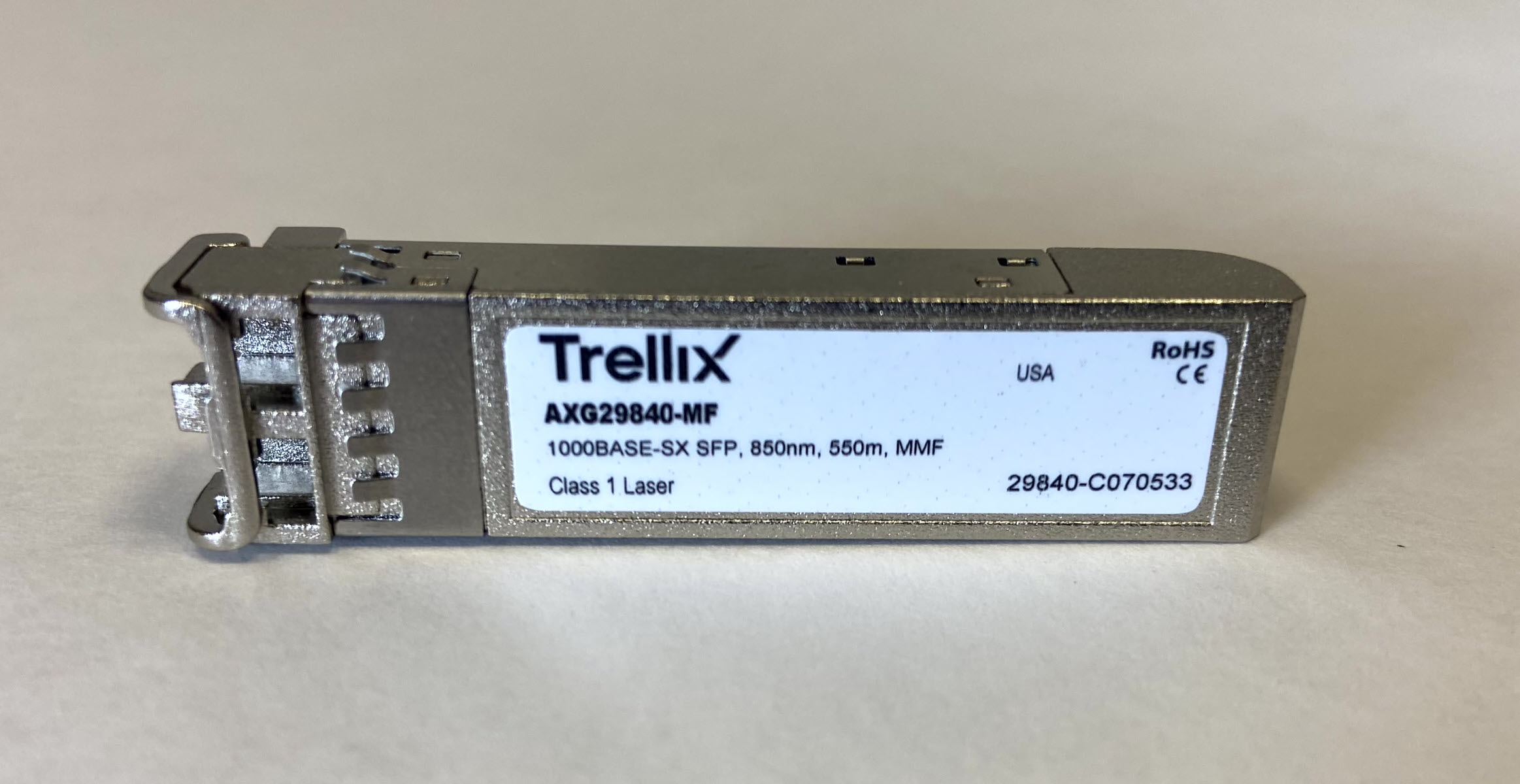

850nm SFP
850nm SFP
