Grid view
.png "GUID-888735AE-2F74-4151-B615-00B164291506-low.png")
The following columns are available in the grid view of the Syslog tab:
Option | Definition |
|---|---|
Profile Name | The name of the target server for identification purpose |
IP Address | The IP Address associated with the server |
Target Port | The listening port of the target server |
SNMP Version | The version of SNMP running on the target SNMP server |
User Name | The username for authentication |
Authoritative Engine ID (Hex Values) | The authoritative (security) engine ID used for SNMP version 3 REQUEST messages by primary Manager. |
Authentication Level | The authentication level |
Authentication Type | The authentication protocol (MD5, SHA, or SHA256) used for authenticating SNMP version 3 messages |
Encyption Type | The privacy protocol (DES, AES, or AES256) used for encrypting SNMP version 3 messages |

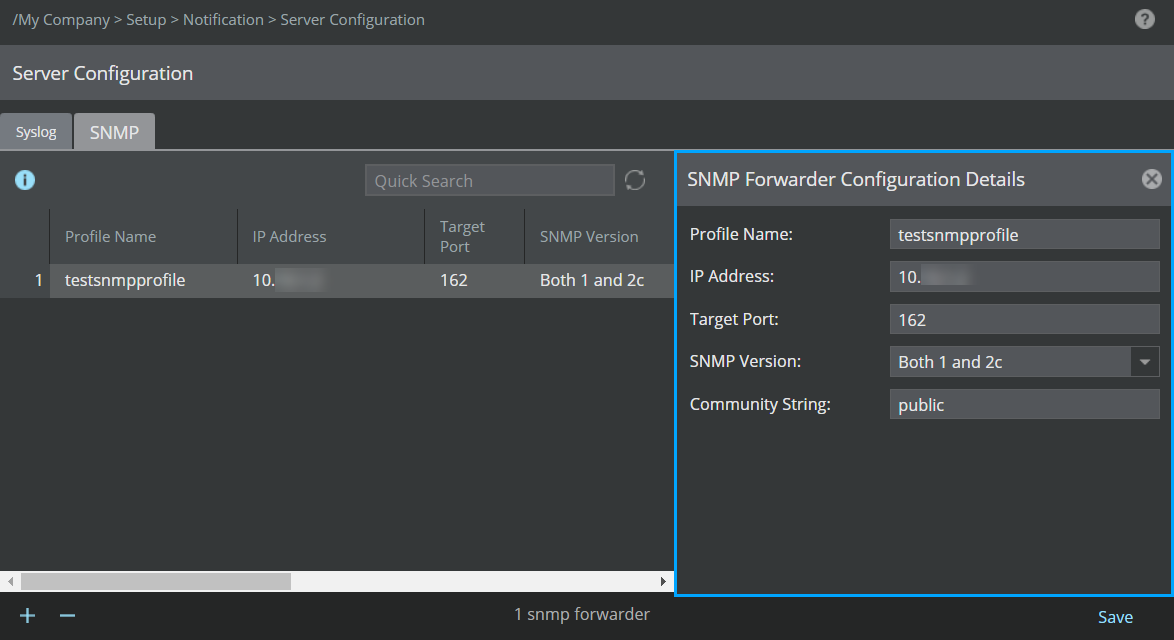

You can also view the server details in the SNMP Forwarder Configuration Details panel to the right of the page by double-clicking anywhere on an SNMP entry.
.png "GUID-694C453C-0A34-440E-8090-55A8326F38EB-low.png")
