System and Proxy Decryption tab

The System and the Proxy Decryption tabs in the Licenses page displays information regarding the number of licenses available, their capacity, and all the details required for a license. This page also allows you to add, remove, upgrade, assign, and unassign licenses.

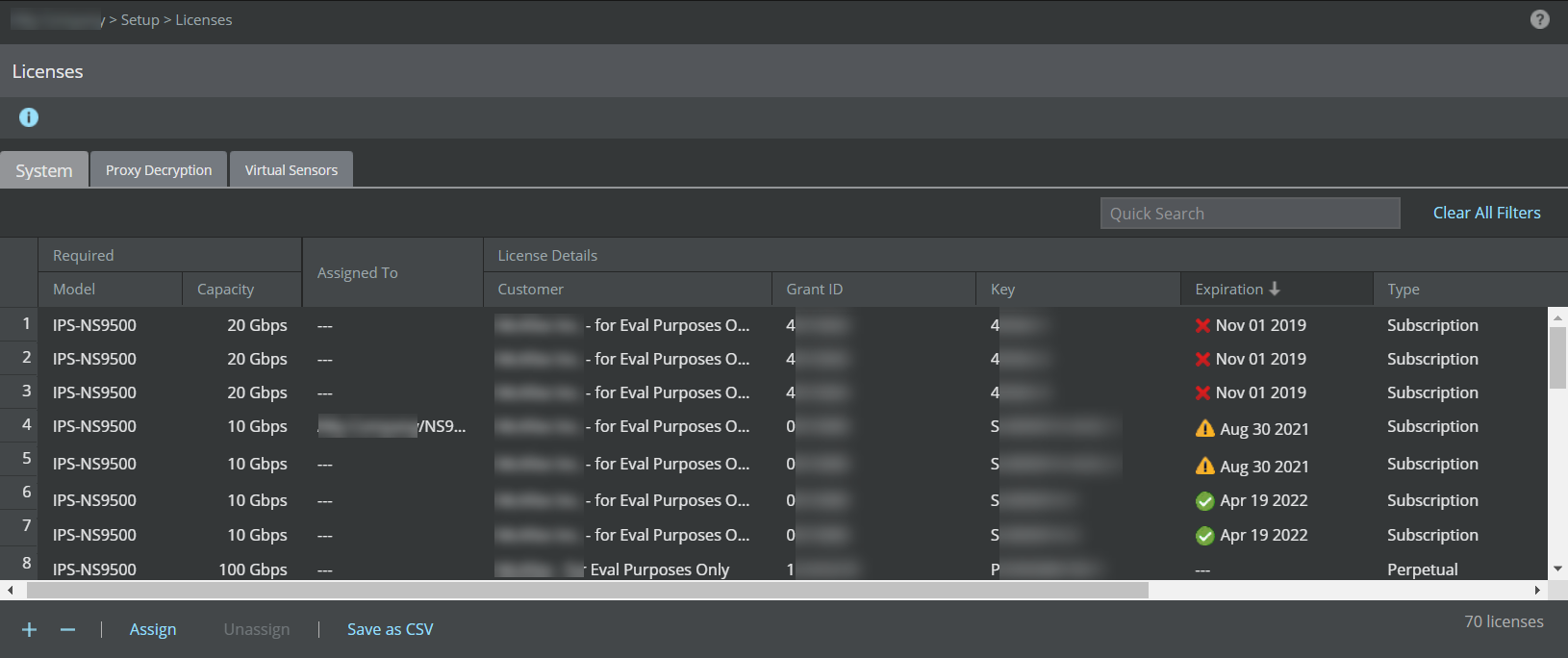

To view the System tab, go to Manager → <Admin Domain Name> → Setup → Licenses → System.

The following details are displayed on the System tab:


Option	Definition
Required	Model – Sensor model compatible with the license Capacity – Throughput limit for the license
Assigned To	Name of the Sensor assigned to the license
License Details	Customer – Customer for whom the license file was generated Grant ID – Trellix Grant ID of the corresponding customer Key – License key number of the customer Expiration – Expiration date of the license Note The expiration is applicable only for demo and subscription licenses. : Valid license : Expired license : Expired license running on grace period Note A grace period of 30 days is provided to subscription-based System licenses after they expire. Type – Displays if the license is Perpetual, Subscription, or Evaluation (Demo) type. Note It is recommended to install subscription license from Manager version 10.1.7.44 and later.
Added	Time – Date in <mm-dd-yy> format, and time when the license was added By – Name of the user who added the license
Comments	Enables you to add your comment per license file that is imported. Double-click in the Comment field and enter your comment. Click outside this field and your comment is automatically saved.
	Add a license
	Delete a license
Assign	Assign a license to the Sensor
Unassign	Unassign a license from the Sensor
Save as CSV	Export the license usage details as a `.csv` file

For more information, see Trellix Intrusion Prevention System Installation Guide.

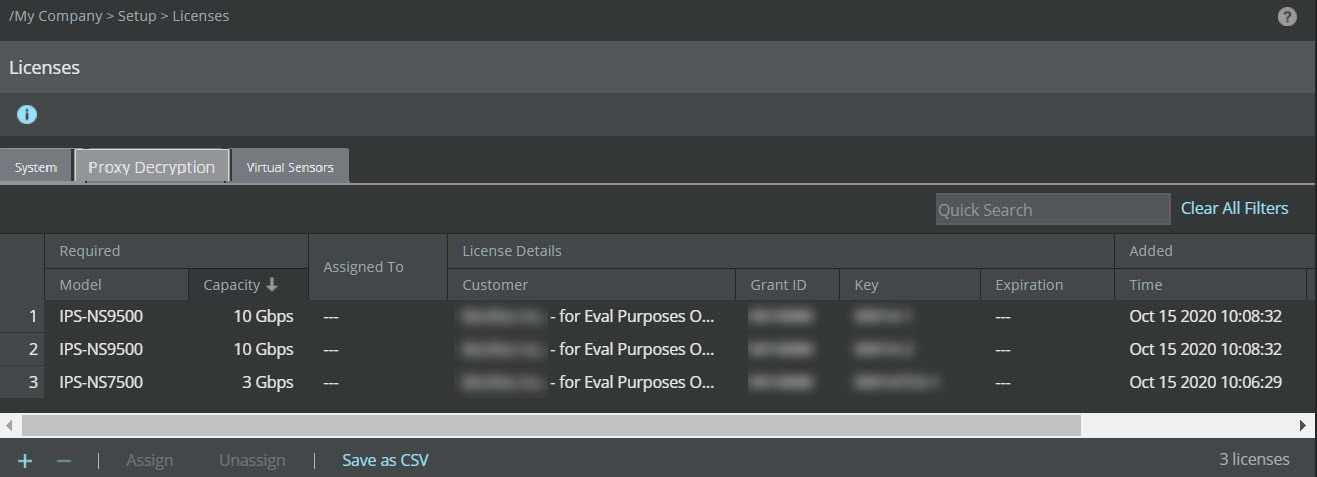

To view the Proxy Decryption tab, go to Manager → <Admin Domain Name> → Setup → Licenses → Proxy Decryption.

The following details are displayed on the Proxy Decryption tab:


Option	Definition
Required	Model – Sensor model compatible with the license Capacity – Throughput limit for the license
Assigned To	Name of the Sensor assigned to the license
License Details	Customer – Customer for whom the license file was generated Grant ID – Trellix Grant ID of the corresponding customer Key – License key number of the customer Expiration – Expiration date of the license
Added	Time – Date in <mm-dd-yy> format, and time when the license was added By – Name of the user who added the license
Comments	Enables you to add your comment per license file that is imported. Double-click in the Comment field and enter your comment. Click outside this field and your comment is automatically saved.
	Add a license
	Delete a license
Assign	Assign a license to the Sensor
Unassign	Unassign a license from the Sensor
Save as CSV	Export the license usage details as a `.csv` file
