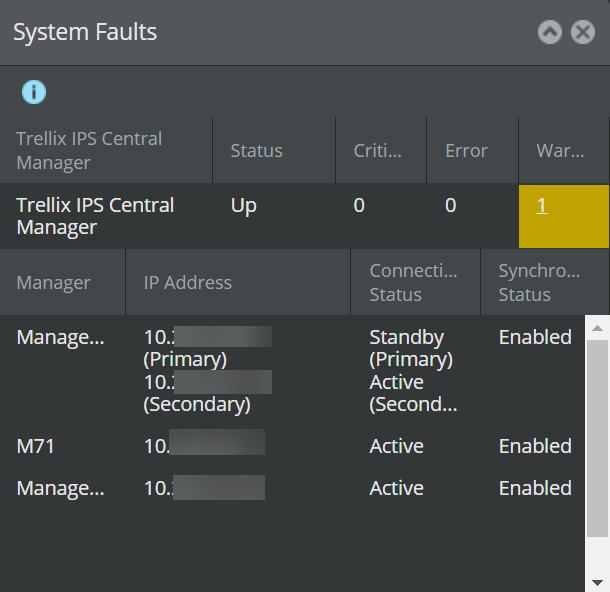

System Faults

Trellix IPS Central Manager— The Central Manager name

Failover Mode— The failover mode of the Central Manager, whether primary or secondary as configured in MDR

Failover Status— The failover status of the Central Manager, whether active or standalone

Status— Operational status of the component. For Central Manager, up indicates proper functioning; down indicates the component is not functioning.

Critical— Major faults, such as component failure.

Error— Medium faults, such as a stopped process, incorrect port speed configuration, or a session time-out (automatic logoff).

Warning— Minor faults, such as multiple bad logos or an attempt to delete a resource in System Configuration without properly clearing fields

Manager— The name of the Manager entered in the Devices page

IP Address— The IP address of the Managers managed by the Central Manager

Connectivity Status— The connectivity status of the Managers managed by the Central Manager

Synchronization Status— The synchronization status of the Managers managed by the Central Manager
