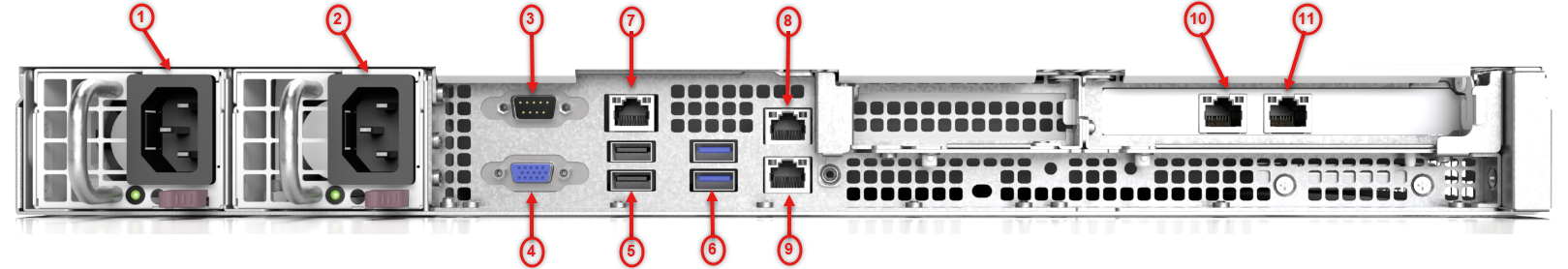

1) Power Supply 1 | 7) IPMI Port |
2) Power Supply 2 | 8) ether2 (RJ45) Submission/Cluster Communication 2 Port |
3) Serial Console Port | 9) ether1 (RJ45) Management 1 Port |
4) VGA Connector | 10) ether3 (RJ45) Submission/Cluster Communication 3 Port |
5) USB 2.0 Ports | 11) ether4 (RJ45) Submission/Cluster Communication 4 Port |
6) USB 3.2 Ports |
Power
Power: Connect your power source to this port to provide power to the appliance. The appliance comes with one redundant power supply unit for use if the primary unit fails.
I/O Ports
Serial Console: Connect to this port to manage the appliance from your terminal.
Video: Connect a monitor to this port to view the appliance's command-line interface.
USB 2.0: The port is USB 2.0 compliant.
USB 3.2: These ports are USB 3.2 compliant.
Management Ports
ether1 (RJ45): Connect your LAN to this port to enable remote access to the CLI and Web UI. The RJ45 connector is a 10/100/1000base-T port.
IPMI: Connect for access to out-of-band management functions, including power control, console redirection, and appliance health status. The connector is a 10/100/1000BASE-T port.
Submission/ Cluster Ports
ether2 through ether4: Use these ports as an optional dedicated interface for communication with sensors or other MVX cluster components. The ether 2 – ether 4 connectors are 10/100/1000BASE-T ports.
See the chapter “Performing the Initial Configuration” in the MVX Deployment Guide for your software release for more information.
