These steps show you how you test the setup for its bypass capability and SNMP traps.
On a Windows PC, for example, open the iReasoning MIB browser.
Click File → Load MIBs.
A pop-up window appears.
Locate the MIB file for the Active Fail-Open kit and click Open.
The MIB is loaded.
Configure the parameters for SNMPv3 traps on the server.
Login to the web interface of the Active Fail-Open module.
Use default credentials to access the web interface.

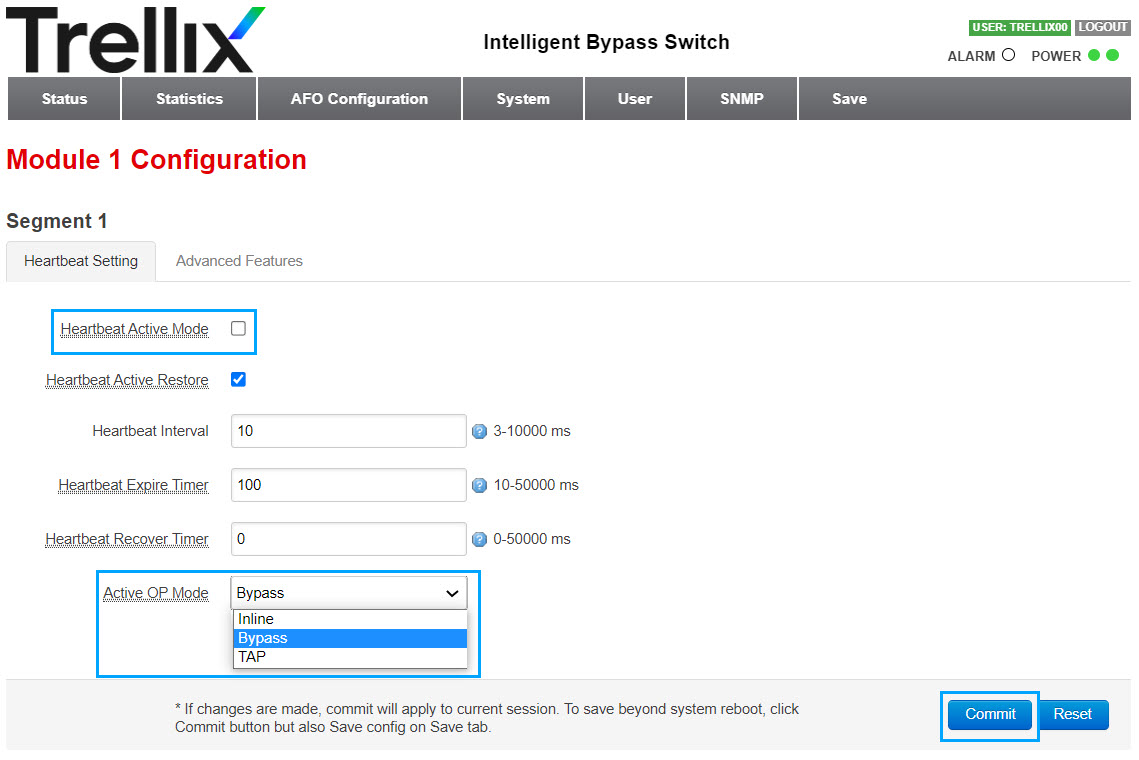

Go to, AFO Configuration → Module <number> to access the configuration page.
Under Heartbeat Setting, deselect Heartbeat Active Mode.
Under Active OP Mode, select Bypass from the drop-down list.
.jpg)
Click Commit to save your configuration.
Under Heartbeat Setting, deselect Heartbeat Active Mode.
Click Commit to save your configuration.
You will notice an SNMP trap appear in the list.
