For member Sensors in a cluster, the Devices → <Admin Domain Name> → Devices → <Device Name> → Member Sensors → <MemberSensorname-node Id> → Summary action presents a view of the configured information for an installed device that is part of a cloud cluster.
The information displayed is configured during the installation and initialization of the selected device through the device command line interface.
In the Device Details monitor, verify that the Name, IP address, subnet mask, and default gateway IP address are the same as what you set through the command line interface for the selected device.

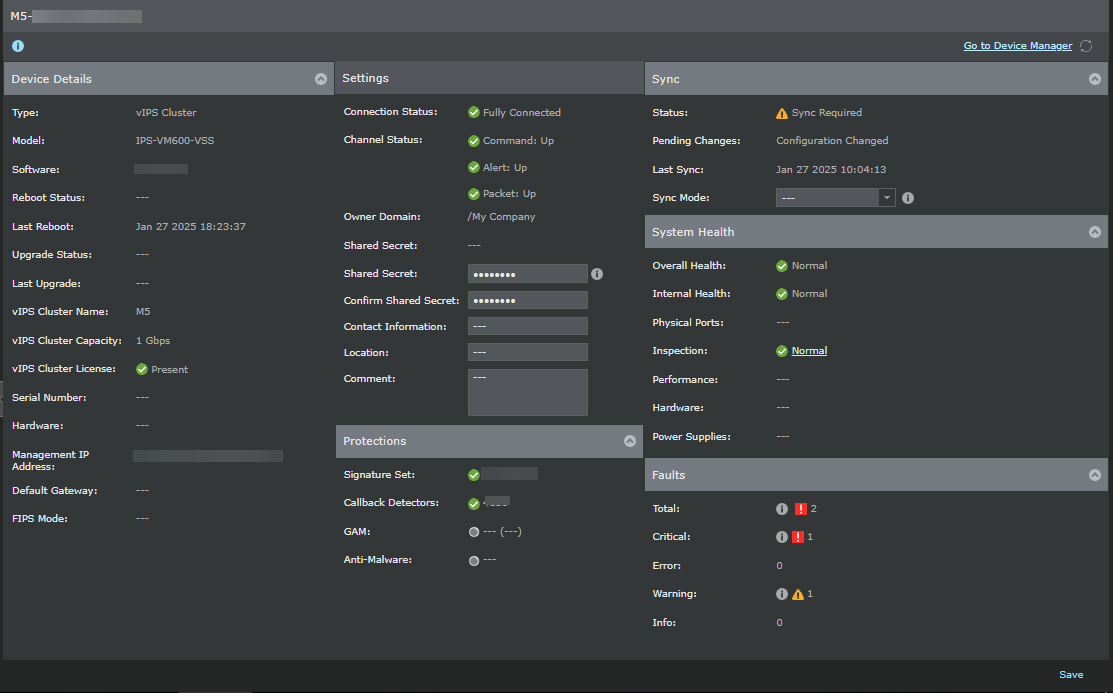

To view the Summary details for member Sensors, go to Devices → <Admin Domain Name> → Devices → <Device Name> → Member Sensors → <MemberSensorname-node Id> → Summary. The Summary page is displayed. It contains the following information:
Device details | Definition |
|---|
Settings | Displays the following parameters: Connection Status - Displays the status between the Sensor and the Manager as  Fully Connected,  Partially Connected,  Disconnected, or  Trust Pending. Channel Status - Displays the name of the following channels and their status whether "Up" or "Down"  : If the trust is not established between the Manager and Sensor, the Channel Status is displayed as ---. Owner Domain - Displays the name of the owner domain. Shared Secret - You can edit the shared secret key. The device shared secret key can contain up to 25 alphanumeric characters, including hyphens, underscores, and periods. This should only be performed if the shared secret in the device shell (command line interface) has been changed. When one of the shared secrets is changed, the device loses communication with the Manager.
Confirm Shared Secret - Confirm the shared secret key. Contact Information - Type the details of the person responsible for this device. Location - Type the geographic (city, building, and others) location. Comment - Type the comments.
To update the modified configurations, click Save. |
System Health | Overall Health - Displays the overall health of the system as Normal, Abnormal, or ---. Internal Health - Displays the Sensor health as Normal, Abnormal, or ---. Physical Ports - Displays the status of ports operating as Normal, Abnormal, or ---. Click the link to navigate to the Physical Ports page of the device. Inspection - Displays if the device is in layer 2 bypass mode as Normal or Abnormal. Click the link to navigate to the Layer 2 Bypass page of the device. Performance - Displays the performance related faults for the device as Normal or Abnormal. Click the link to navigate to the Performance Charts page. Hardware - Displays if the hardware has any temperature or power related issues as Normal or Abnormal. Power Supplies - Displays the power supply status as Operational, Non Operational, Absent,  Error, and ---.
|
Sync | Displays the sync details for the following parameters: Status - Displays the following status: Status | Description |
|---|
Synchronized | Indicates that no pending changes are required. | Sync in progress | Indicates if any pending changes are required. | Sync required | Indicates when the deployment is in progress. | --- | Indicates that there is no trust established between the Sensor and Manager. |
Pending Changes - Displays the configuration changes updated to the device including signature set or callback detectors. Last Sync - Displays the date and time of the last sync. Sync Mode - Displays the configuration mode as Direct for online updates and Indirect for offline updates. You can edit the mode from Sync mode drop-down. Select the required mode and click Save.
|
Protections | Displays if the versions for the following protection parameters are the latest or not: The following icons are displayed: : Displayed when the parameter has the latest version available : Displayed when the version available in the Manager differs with the version available in the Sensor. : Displayed when there is no latest version available on the Manager. : Displayed when the latest version cannot be determined as the deployment is possibly in an air-gap network. This is displayed only for GAM and Anti-Malware.
|
Faults | Displays the number of system faults generated for the following parameters: Total - Displays the number of unacknowledged faults generated for the device. Critical - Displays the number of critical faults generated for the device. Error - Displays the number of error faults generated for the device. Warning - Displays the number of warning faults generated for the device. Info - Displays the number of info faults generated for the device.
A Faults window is displayed on selecting the  tooltip icon for a particular fault. |
Device Details | Displays the device details for following parameters: Type - Displays the type of device. Model - Displays the model of device. Software - Displays the device software version. Reboot Status - Displays if the Sensor requires a reboot. This is required to deploy configuration changes to the Sensor without any failure. This is not applicable to NTBA appliances. It is displayed as ---.
Last Reboot - Displays the time stamp of last reboot. Upgrade Status - Displays the status of the upgrade as Successful , In-progress, Failed , or ---. Last Upgrade - Displays the time stamp of last upgrade. vIPS Cluster Name - Displays the name of the cluster. vIPS Cluster Capacity - Displays the throughput for the cluster. vIPS Cluster License - Displays the license details of cluster. Serial Number - Displays the device serial number. Hardware - Displays the version details of hardware. Management IP Address - Displays the IP address/subnet mask of device. Default Gateway - Displays the IP address of the default gateway configured on device. FIPS Mode - Displays if FIPS mode is enabled or disabled. This is not applicable to NTBA appliances. It is displayed as ---.
|
Go to Device Manager | You can access the Device Manager from this link. |
Save | Saves the modified updates. |
| Refreshes the page. |
