View NTBA Appliance reports

The NTBA Appliance report displays information on the selected NTBA Appliance. Information includes device name, serial number, port configuration, flow information, general settings, IP settings to the interfaces, exporters settings, SNMP settings, list of NTBA interfaces, list of inside zones, list of outside zones, and zone elements.

Follow this procedure to view the NTBA Appliance report:

1. Select Manager → <Admin Domain Name> → Reporting → Configuration Reports.
   The Configuration Reports page is displayed.
2. Click the NTBA Appliance link.

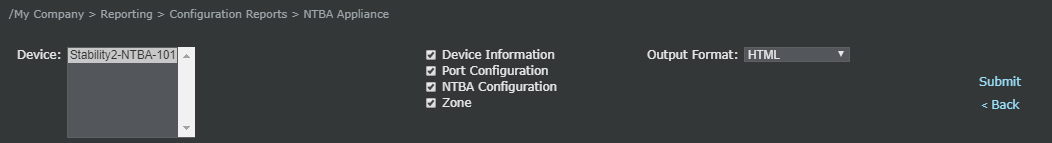

   The NTBA Appliance report page with the configuration options is displayed.





3. Configure the following:
   • Select the device for which you want to generate the report from the Device field.
   • Select the required checkboxes against Device Information, Port Configuration, NTBA Configuration, and Zone.
   • Select the required Output Format from the Output Format drop-down list.
   • Click Submit.
   For the selected admin domain, the NTBA Appliance report displays the following device configuration details:

   1. NTBA Appliance Information for <Device Name>
      1. Name
      2. Model
      3. Serial Number
      4. Software Version
      5. NTBA Appliance Signature Version
      6. Last Signature Set Update
      7. IP Address
      8. Subnet Mask
      9. Default Gateway
      10. Uptime
      11. Last Reboot Time
      12. Contact Information
      13. Location
      14. Gateway Anti-Malware DAT Version
      15. Gateway Anti-Malware Engine Version
      16. Anti-Virus DAT Version
      17. Anti-Malware Engine Version
   2. Current NTBA Port Configuration for device <Device Name>:
      1. Port Settings
         1. Port #
         2. Port Type
         3. Configuration
            1. Speed
            2. Duplex
         4. Administrative Status
         5. Operational Status
   3. Flow Information
      1. Flow Protocol Supported
   4. Proxy Server Settings
      1. Use Parent Settings?
      2. Use Proxy Server?
      3. Proxy Server Name or IP Address
      4. Port Number
      5. User Name
   5. NTBA General Settings
      1. Use Global Settings?
      2. NTBA listening port for flow records
      3. Enable De-duplication?
   6. IP Settings to the NTBA interfaces
      1. IP Address
      2. Network Mask
      3. Gateway IP
   7. Exporters
      1. Name
      2. IP Address
      3. Type
      4. Enabled
      5. Description
      6. Flow Type and Version
   8. SNMP Settings for exporter
      1. Use Global settings?
      2. UDP Port
      3. SNMP Version
      4. Read-Only Community String
      5. SNMP Polling Interval Time
   9. List of NTBA-ready Interface
      1. Enabled
      2. Name
      3. External?
      4. Description
   10. Gateway Anti-Malware Engine Updating
       1. Use Parent Settings?
       2. Enabled ?
       3. Update Interval
   11. Active Device Profiling
       1. Enabled ?
       2. Available Zones
       3. Selected Zones
       4. CIDR Blocks
       5. TCP/UDP Ports
       6. Profiling Frequency Schedule
       7. Profiling Frequency Days
       8. Profile Expiration (days)
   12. EIA Integration
       1. Use Parent Settings?
       2. Enabled ?
       3. NTBA Listening Port
   13. ePO Settings
       1. ePO Server IP Address
       2. ePO Server Port
       3. ePO Server Username
   14. Auto Classification Settings
       1. Automatically Allow Executables Signed by a Trusted Certificate Authority?
       2. Automatically Allow Executables Found on the GTI Allow List?
       3. Automatically Block Executables Found on the GTI Block List?
   15. Summary of list of inside zones
       1. Name
       2. Description
   16. Summary of list of outside zones
       1. Name
       2. Description
   17. Zone elements of inside Zones
       1. Zone
       2. Element
       3. Type
   18. Zone elements of outside Zones
       1. Zone
       2. Element
       3. Type
