View summary details of a selected Cluster

Steps:

1. In the Manager, go to Devices → <Admin Domain Name> → Devices → <Cluster> → Summary.

   The device Summary page is displayed.

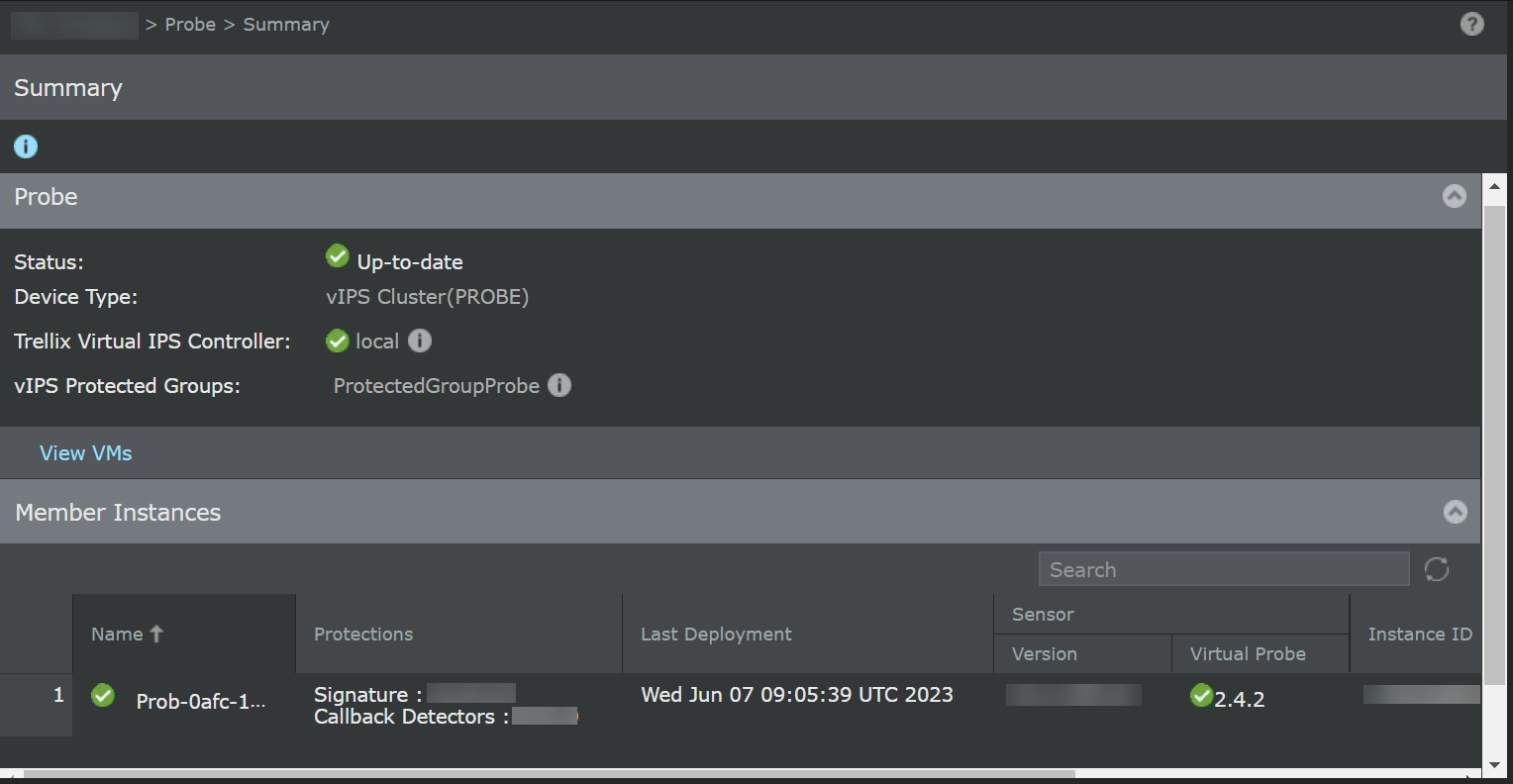

   Summary details of a Cluster





   Option definitions

   Option	Definition
   Status	Displays whether there are pending changes to be deployed to the virtual security system or if it is up to date. Green indicates that the system is up to date and blue indicates that there are pending changes to be deployed.
   Device Type	The type of device, for example, GWLB or Probe
   Trellix Virtual IPS Controller	Displays the name of the Controller
   vIPS Protected Group	Displays the name of the vIPS Protected Group
   Member Instances
   Name	Displays the status and name of the instance
   Protections	Displays the Software, Signature set, and Callback Detector versions of the Sensor
   Last Deployment	The timestamp of previously deployed pending changes
   Sensor	Version - Displays the version of the Sensor Virtual Probe - Displays the version of the vIPS Probe
   Instance ID	Displays the ID of the Controller
   Last Reboot	Displays the time stamp of the last reboot performed





2. To view details of a managed endpoint, click View VMs.

3. To restart the Sensor, click Member Sensor Actions → Reboot.

4. To run a diagnostic trace for the Sensor, click Member Sensor Actions → Run diagnostics.

5. To export the Sensor software information in the form of a .csv file, click Save as CSV.
