Viewing Central Manager details

  • Published on Oct 5, 2026
  • 1 minute(s) read
Prev Next

The Central Manager page shows Central Manager configuration details, such as Manager Name, Central Manager information, contact information, location, Synchronization Enabled (Y/N) etc. If Central Manager is configured in an MDR pair, then details of the MDR pair are displayed in the Manager Details section.

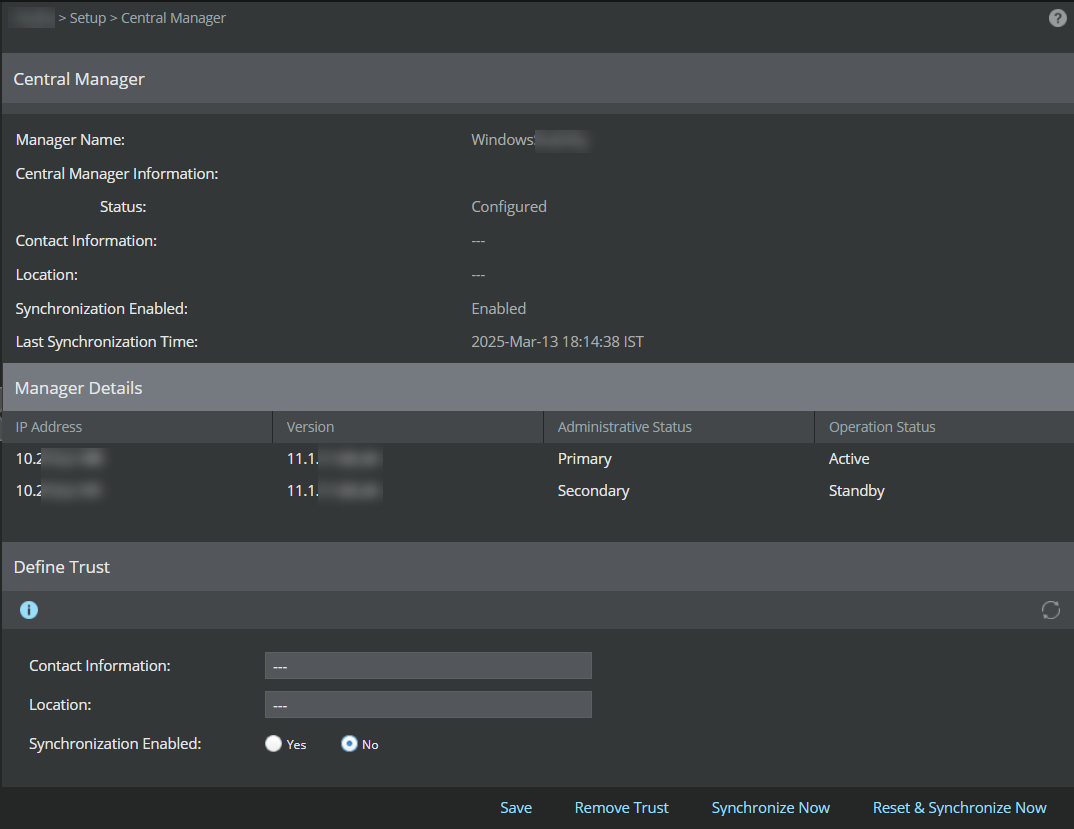

Central Manager Details Page
Central Manager Details Page


Field

Description

Central Manager

This section includes the following details:

  • Manager Name: Logical name given to Manager to connect to the Central Manager

  • Central Manager Information

    • Status: Status of trust establishment between the Manager and Central Manager

    • IP Address: Central Manager server's IP address (IPv4 or IPv6)

      This field is displayed in case of a standalone Central Manager. For Central Managers in MDR pair, relevant details are displayed in the Manager Details section.

    • Version: Central Manager's version number

      This field is displayed in case of a standalone Central Manager. For Central Managers in MDR pair, relevant details are displayed in the Manager Details section.

  • Contact Information: Name of contact person

  • Location: Geographical location (area, city)

  • Synchronization Status: Enable synchronization between the Central Manager and Manager (It is Enabled by default)

  • Last Synchronization Time: The last synchronized time between the Central Manager and Manager

Manager Details

This section details are displayed When Central Managers in MDR pair are connected with the Manager. It includes the following details:

  • IP Address: IP address (IPv4 or IPv6) of the Central Managers in MDR pair that are connected to the Manager

  • Version: Version number of the of the Central Managers in MDR pair that are connected to the Manager

  • Administrative Status: Shows whether the Central Manager is configured to be Primary or Secondary

  • Operation Status: Shows whether the Central Manager is in Active or Standby mode of operation

Define Trust

This section includes the following:

  • Contact Information: Allows you to update name of the contact person

  • Location: Allows you to update geographical location

  • Synchronization Enabled : It is enabled by default. Select No to disable synchronization with Central Manager.

The lower right side of the page provides the following options:

  • Save: Allows you to save the changes performed in the Define Trust field

  • Remove Trust: Allows you to remove trust between the Manager and Central Manager

  • Synchronize Now: Allows you to synchronize the Manager with the Central Manager

  • Reset and Synchronize Now: Allows you to reset the changes and synchronize the Manager with the Central Manager
