Viewing executables running on endpoint

The Endpoint Executables page on the Analysis tab provides a snapshot of all the executables running on your internal endpoints that have made network calls. It also provides network visibility on how many endpoints are running the executables, how many connections were made, and the events triggered by the executable during the selected timeframe.

Note
All NTBA Appliances that have McAfee EIA services running on them will be displayed in the Devices drop-down list. You can filter data based on the NTBA Appliance selection.

The executables listed here are processes and files. They can be allowed, blocked, and unclassified. You can use this page to investigate further on what factors led to the classification of the executable and manually change the classification.

By default, the order is sorted by the endpoints, so executables with most endpoint connections are displayed first.

Note
Maximum number of executables displayed on the Endpoint Executables page is 4096. Historical data and inactive executable data are kept for 30 days.

The page is divided into the Executable panel and the Details panel. Click a row in the Executable panel to view additional information about the executable hash in the Details panel.

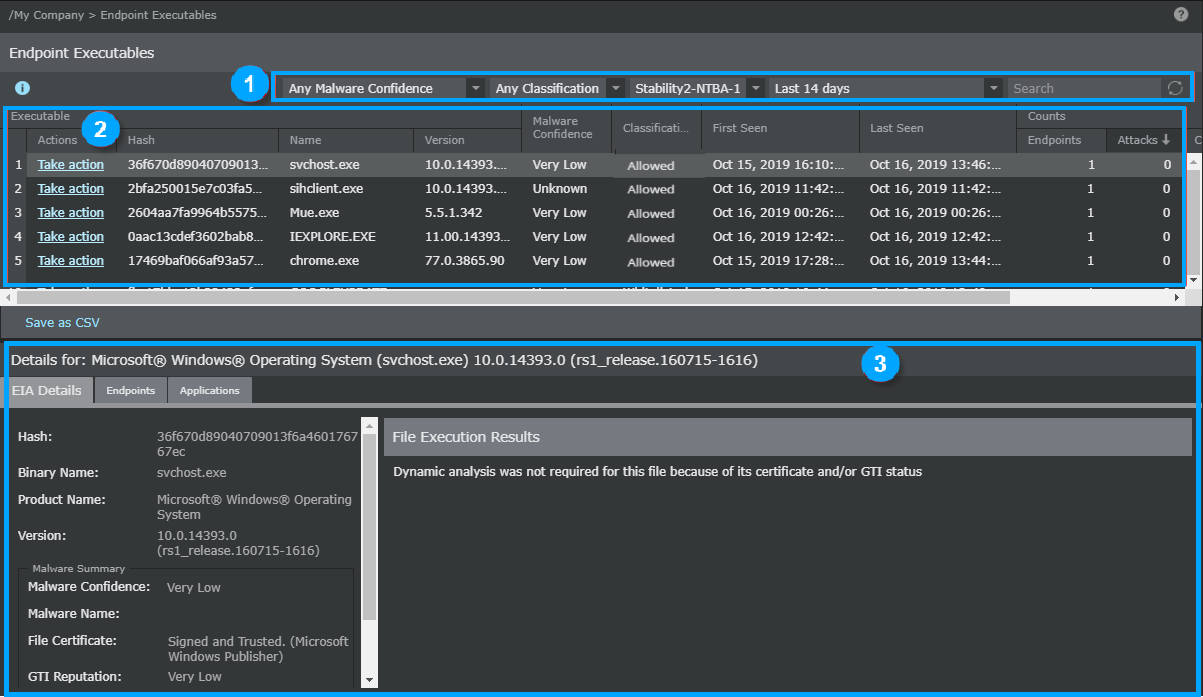

Endpoint Executables page with default settings


Item	Description
1	Filters and Search options
2	Executable panel
3	Details panel

Following are the filters and search option available:


Field	Description	Default Value
Malware Confidence	Any Malware Confidence — Displays all executables irrespective of their malware confidence High+ Malware Confidence — Displays executables with high and very high malware confidence Medium+ Malware Confidence — Displays executables with medium, high, and very high malware confidence Very High Malware Confidence — Displays executables with very high malware confidence	High+ Malware Confidence
Classification	Any Classification — Displays all executables, whether blocked, allowed, and unclassified Blocked — Displays only blocked executables Unclassified — Displays executables that are neither blocked nor allowed Allowed — Displays only allowed executables	Any Classification
Devices	Displays the list of NTBA Appliances that have McAfee EIA services running on them	Displays device names in the alphabetical order
Time interval	Last 5 minutes Last 1 hour Last 6 hour Last 12 hours Last 24 hours Last 48 hours Last 7 days Last 14 days Custom Time Period	Last 12 hours
Search	Allows you to search executable by the file hash or the binary name of the executable	Blank

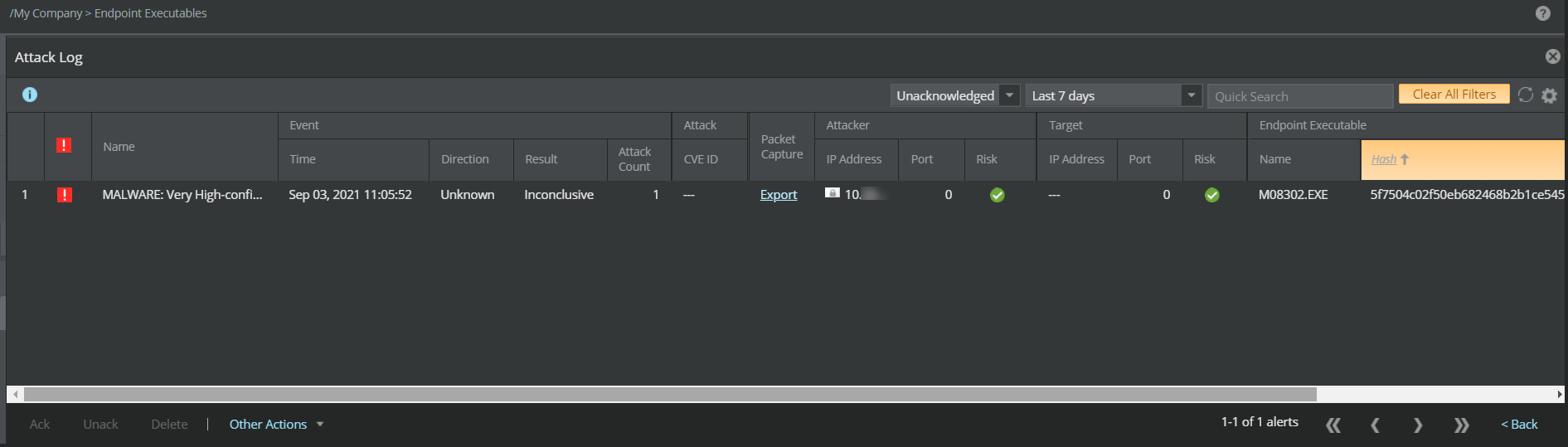

Attack Log

Upon double-clicking on any executable hash, you navigate to the Attack Log page. You can analyze and view alerts related to the selected hash.

The date and time filter used in the Endpoint Executables page is persisted upon navigating to attack log. To close the attack log, click Back or icon.

Manage Allow and Block lists

The Manage allow and block lists is a link to the File Hashes page.

For the selected NTBA Appliance, the Executable panel consists of the following:


Option	Definitions
Executable	Actions — Click Take Actions to classify an executable as allowed, blocked, marked as, or unclassified Hash — Displays the file hash of the executable Name — Displays the binary name of the executable Version — Displays the product version
Malware Confidence	Displays the malware confidence level returned by the configured McAfee EIA. The malware confidence values are very high, high, medium, low, very low, and unknown.
Classification	Displays the executable classification whether blocked, allowed, or unclassified
First Seen	Displays when the executable was first reported by McAfee EIA to the NTBA Appliance for the selected timeframe
Last Seen	Displays when the executable was last reported by McAfee EIA to the NTBA Appliance
Counts	By default, the order is sorted by the endpoints, so executables with most endpoint connections are displayed first. Endpoints — Displays the number of endpoints running the executable for the selected timeframe Attacks — Displays the number of attacks triggered by the executable for the selected timeframe Connections — Displays the number of connections made by the executable for the selected timeframe
Comment	Reason for changing the executable classification

Click any row to see additional information of the executable hash in the Details panel. The Details panel consists of the following:

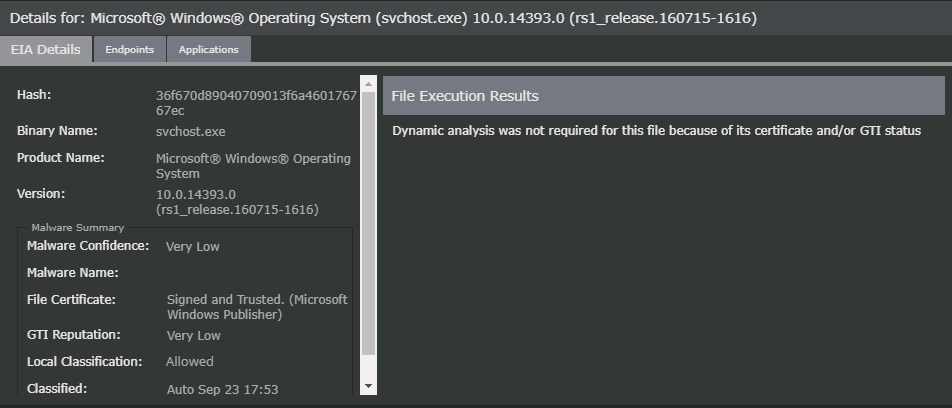

EIA Details

This tab displays the executable or file information. This includes:

Properties — Displays the malware confidence for the executable along with malware indicators that helped determine the reputation

Field descriptions of EIA Details tab
Field	Description
Hash	Displays the file hash
Binary Name	Displays the binary name and the type, whether process or library
Product Name	Displays the product name for the executable or file
Version	Displays the product version number
Malware Summary
Malware Confidence	Displays the malware confidence level returned by the configured McAfee EIA. The malware confidence values are very high, high, medium, low, very low, and unknown.
Malware Name	Displays the malware name, for example, gtalk.exe
File Certificate	Displays the certificate signer and status for the file certificate, for example, Microsoft Corporation
GTI Reputation	Displays the file reputation received from GTI. Valid values are Very Low, Low, Medium, High, Very High, and Unknown.
Local Classification	Displays the executable classification whether Blocked, Allowed, or Unclassified
Classified	Displays the method of classification (Auto if the executable has been auto-classified by the NTBA Appliance or Manual if it has been manually classified) and the timestamp, only for classified executables.
File Execution Summary	Displays a summary of the tasks performed when a program was executed. Examples: connects to the internet, changes proxy settings, adds host file entries.
File Execution Details	Displays execution details as they happened Save as CSV — Exports the list of executables in CSV format Executable — Displays the executable name, example, gtalk.exe Action — Displays action performed by the program, example, create_dir Target Object — Specifies the path where this action was performed, example, \Device\Harddisk\Users\Ellie\Local Search — Displays details based on search criteria

File Execution Results — Shows some of the methods and engines that were used to compute the executable reputation

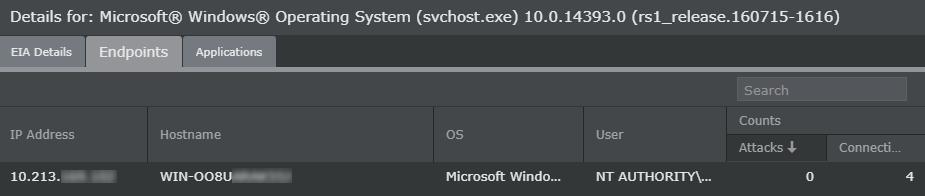

Endpoints

This tab displays the list of endpoints running the executable during the selected timeframe.

Field descriptions of Endpoints tab
Field	Description
IP Address	Displays the IP address of the endpoint
Hostname	Displays the name of the managed host
OS	Displays the version of the operating system running on the endpoint. For example: Windows 10.
User	Displays the user name who invoked the executable or the DLL. The user name can include system users and local users.
Counts	Attacks — Displays the number of attacks triggered by the executable during the selected timeframe Connections — Displays the number of connections made by the executable during the selected timeframe

The Search field allows you to search by IP address, host name, operating system, or user columns.

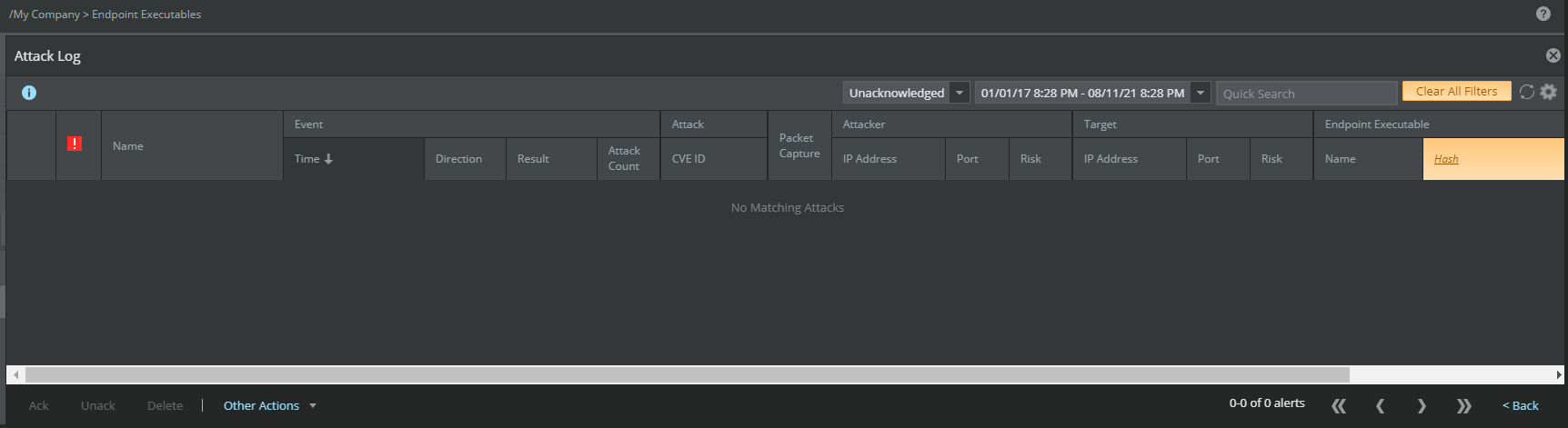

Double-click the IP address to view alerts related to the IP address in the Attack Log. The alerts are filtered based on the IP address selected. To close Attack Log, click Back or icon.

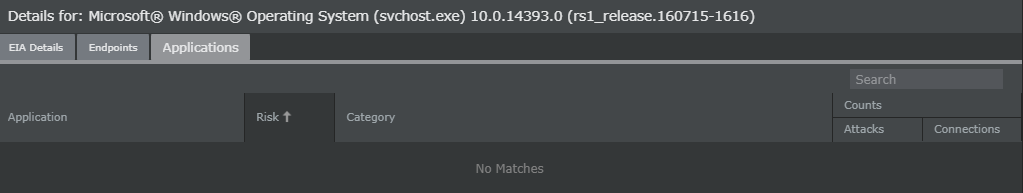

Applications

This tab displays the list of applications that have been invoked by the executable during the selected timeframe.

Field descriptions of Applications tab
Field	Description
Application	Displays the name of the application
Risk	Displays whether the application is high, medium, or low risk. Trellix Labs categorizes an application based on its vulnerability and the probability for it to deliver malware.
Category	Displays the category that the application falls under. For example, HTTP falls under the Infrastructure Services category.
Counts	Attacks — Displays the number of attacks triggered by the executable during the selected timeframe Connections — Displays the number of connections made by the executable during the selected timeframe

The Search field allows you to search by application name, risk, or category.

Double-click the application to view alerts related to the application in the Attack Log. The alerts are filtered based on the application selected. To close Attack Log, click Back or icon.
