The appliance Web UI dashboard displays the status in the Service Health Statistics Trend chart and the notification (bell) menu.
The Service Health Statistics Trend chart displays services in Healthy, Warning, Critical, and Disabled state. You can view a specific set of health metrics for a service for a past day, week, or month. The default setting is by day.
The notification bell icon at the top right corner of the Web UI dashboard displays appliance health service issues in Critical or Warning state. Notifications include links to the About > Health Check > Services Health widget.
Both the trend chart and notification bell allow you to quickly identify services that may need immediate attention.
Administrator or Operator access to the appliance
Scroll down to the Service Health Statistics Trend chart.
Click on a category and select one or more services to monitor. To exclude service data from the graph, click the color-coded icon in the legend.

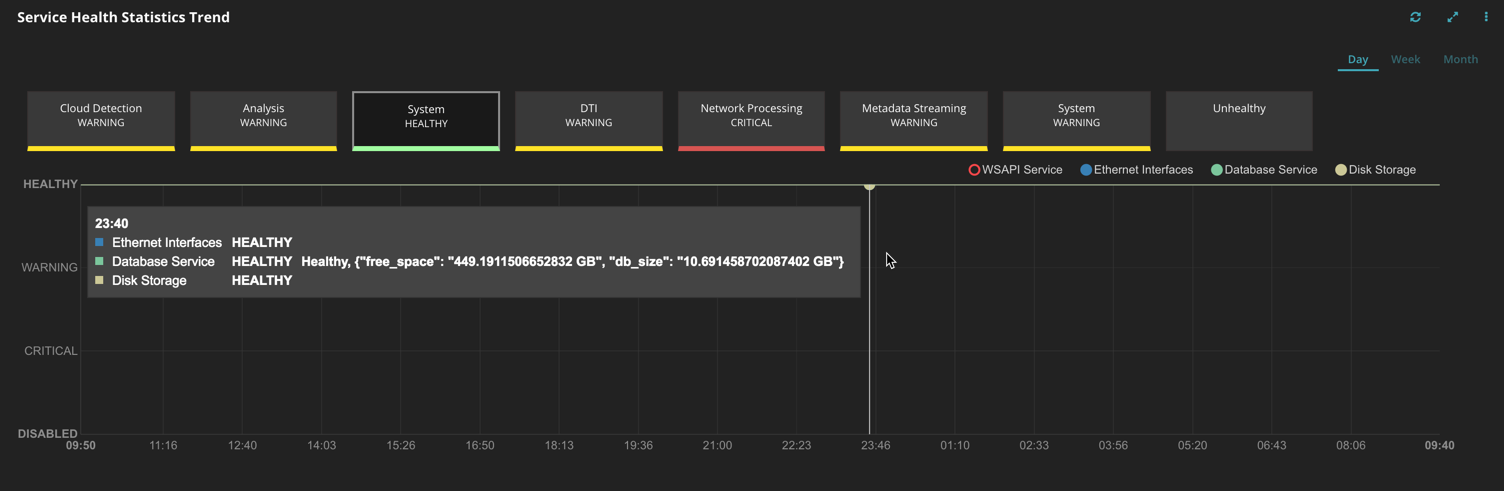

Zoom in to the timeline to identify monitored services. The example shows that the Ethernet Interfaces, Database Service, and Disk Storage services were in healthy state at 23:40 pm.

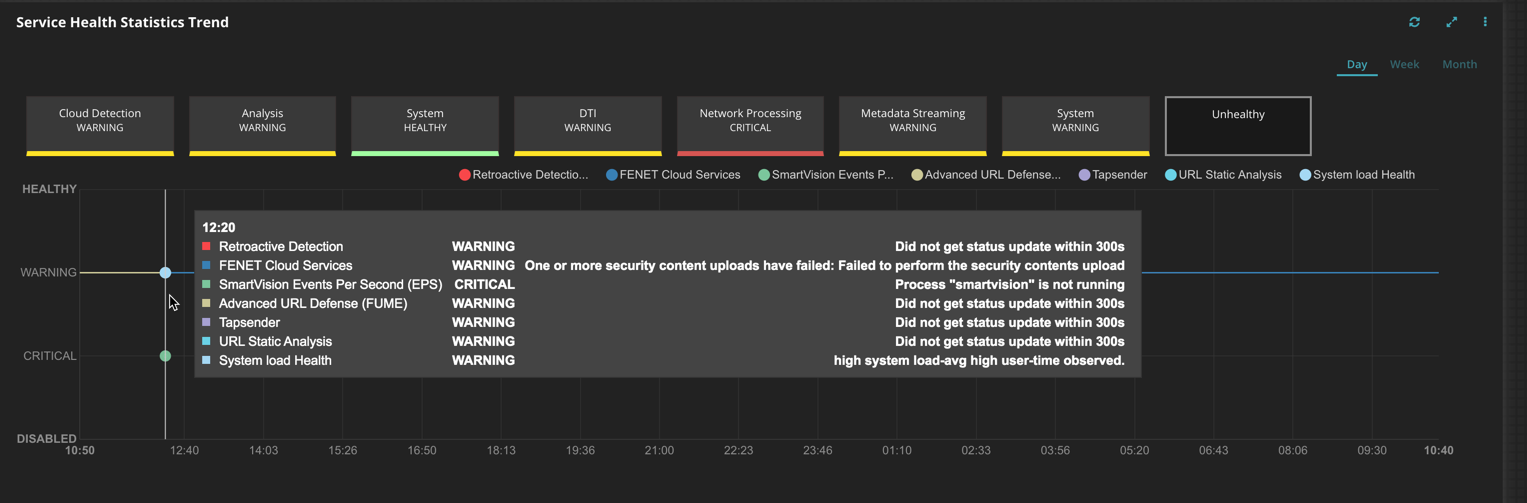

Click on the Unhealthy category to view all services that are in warning and critical state. The example below shows several services entered critical and warning state at 12:20 pm.

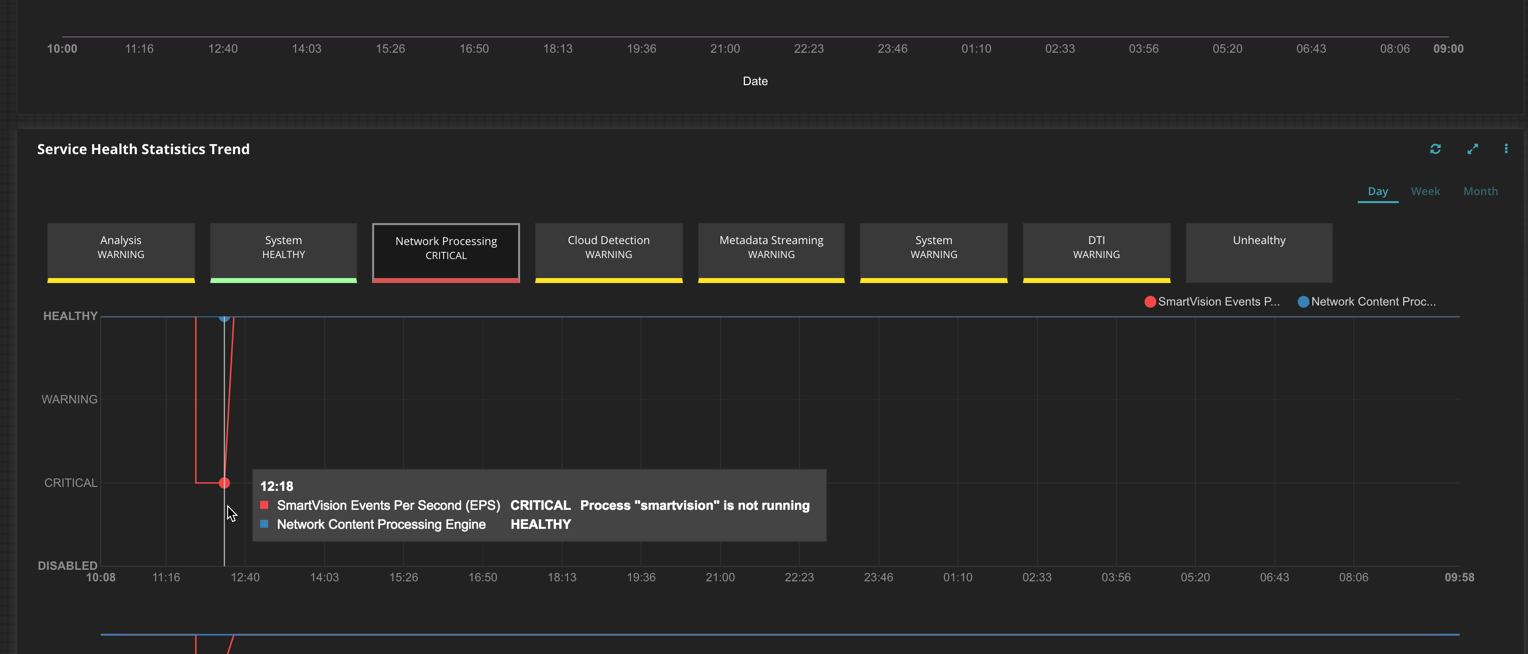

Zoom in to a timeline interval to identify when the service entered a critical or unhealthy state. In the example below, the SmartVision Events Per Second (EPS) service entered a critical state at 12:18.
To view degraded appliance services:
Click on the notification bell located at the top right of the Web UI dashboard.
Click on View Recovery Steps for a degraded or failed service. Severity levels are critical (red) and warning (yellow).
The View Recovery Steps link opens the About > Health Check > Services Health widget.

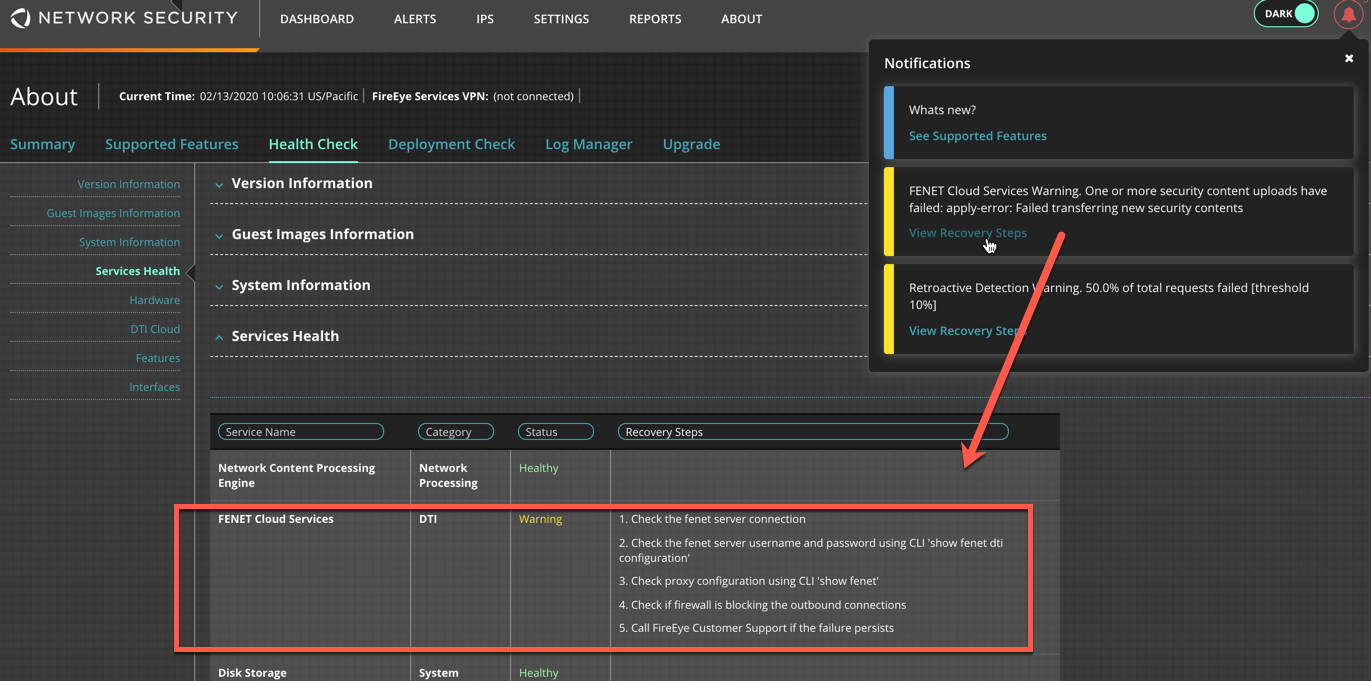

This example shows that the View Recovery Steps link for FENET Cloud Services opens the Health Check tab and displays suggestions for recovery.
