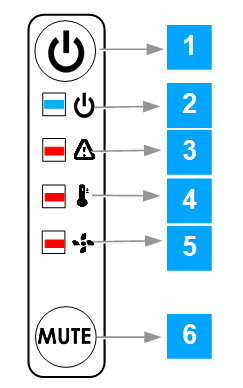

The control panel is on the front of the chassis.
Trellix DLP Capture Storage Array front control panel
.png?sv=2026-02-06&spr=https&st=2026-11-22T14%3A20%3A59Z&se=2026-11-22T14%3A31%3A59Z&sr=c&sp=r&sig=f4aJ3fmw%2Fkj8CR1s4aXnuqqB0z5jsm19jK7sA%2FjYc2o%3D)
Callout | Behavior | Status |
|---|---|---|
1 — System power switch | Normal | System off |
Press | Boot up | |
Long press | System shutdown | |
2 — Power status indicator LED | Blue | On |
No state | Off | |
3 — Power failure indicator LED | Normal | Off |
Failed | Red | |
4 — Temperature overheat indicator LED | Normal | Off |
Failed | Red | |
5 — Fan fault indicator | Normal | Off |
Failed | Red | |
6 — System alert mute switch | Normal | Off |
Press | Alert mute |
