Familiarize yourself with the hardware components that are used on the back panel before setting up the Trellix DLP Capture Storage Array.
Note
Trellix DLP Capture Storage Array (DLP-CSA-A) is supported with Trellix DLP 8800, Trellix DLP 7700, and Trellix DLP 6600 appliance models.
.png?sv=2026-02-06&spr=https&st=2026-11-22T14%3A09%3A23Z&se=2026-11-22T14%3A20%3A23Z&sr=c&sp=r&sig=ZN6INoLLmUu%2FSmRw0gEUXCMKKIaYnJOjJVHE70RVatw%3D)

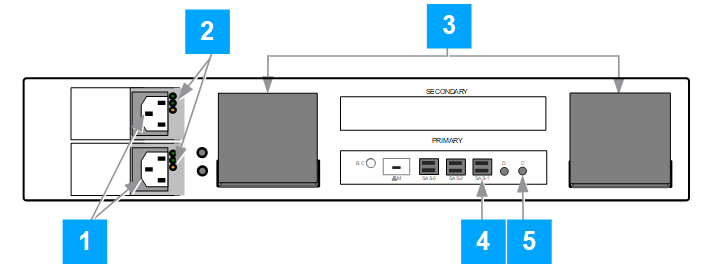

Callout | Description |
|---|---|
1 | Hot-swap dual redundant power supply. |
2 | Power supply indicator lights. |
3 | Hot-swap fans covered by exhaust covers. NoteTo ensure proper air flow, don't prevent the fan exhaust covers from swinging open. |
4 | Mini-SAS port. |
5 | Console serial port — Connect the console serial port to the DLP Network appliance USB port using the assembled 3.5 mm jack cable — DB9 connecter — USB adapter. |
