Follow these steps to add Service rule object:
Upon specifying the options in the Properties tab and selecting Service from the rule object Type drop-down, click Next.

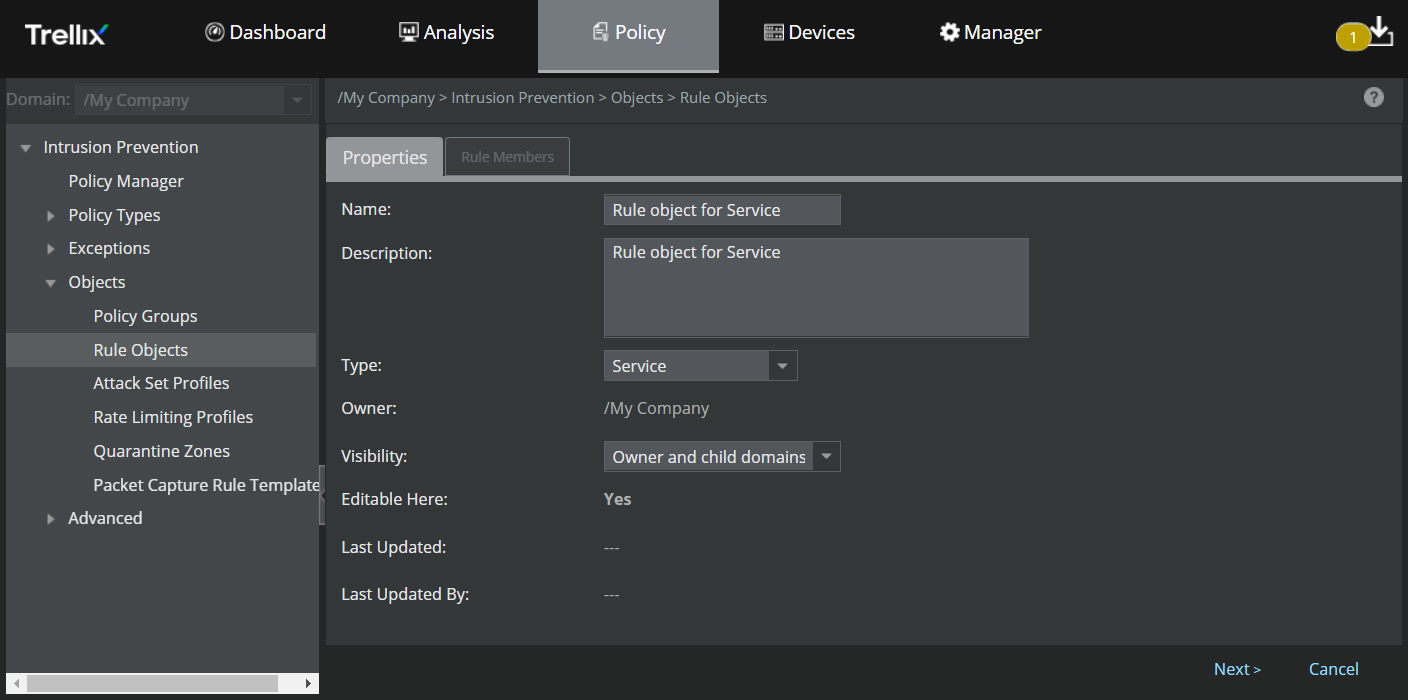

Create a Recurring Time Period rule object.png "GUID-072505DB-C86F-4A13-8937-E3CAE14571D8-low.png")
The Rule Members tab is displayed.

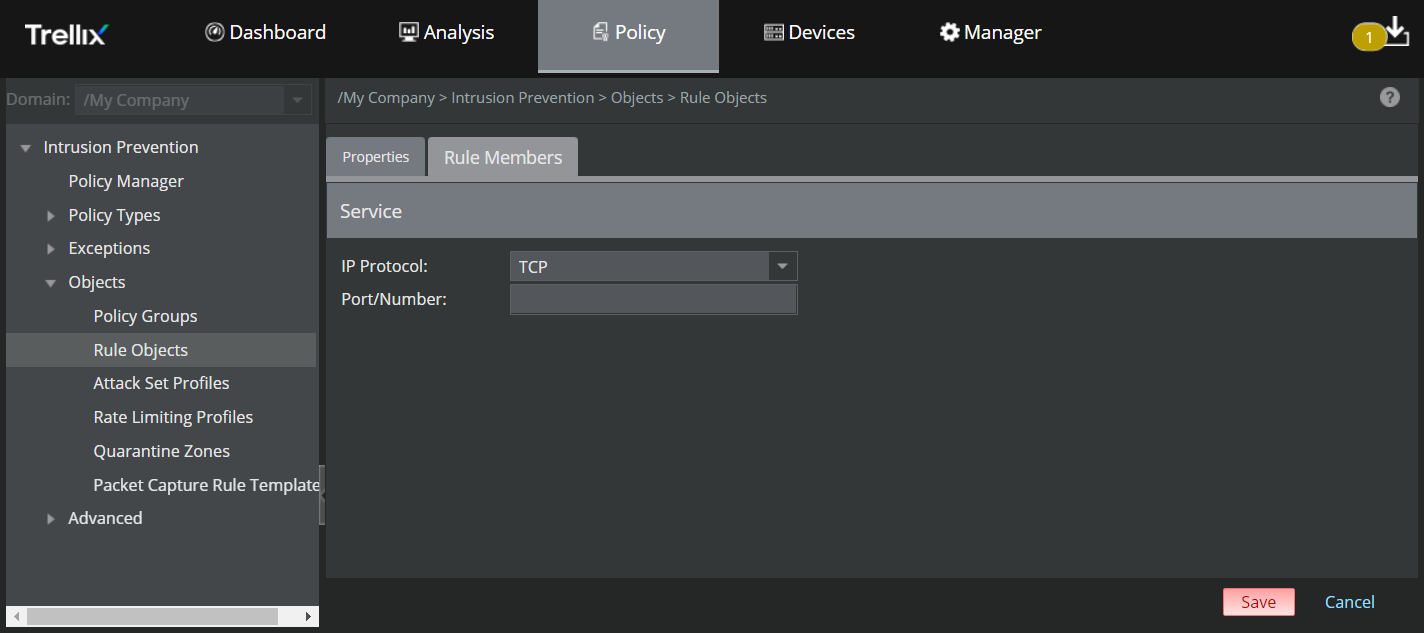

Add Rule Members.png "GUID-6EC10AAB-C8B1-4811-9515-BE368E612F30-low.png")
The following table explains the options in the Rule Members tab.
Option
Definition
IP Protocol
Select the required protocol from the drop-down list. The options are TCP, UDP and Protocol Number.
Port/Number
If you select TCP or UDP as the IP Protocol, you can optionally enter a port number between from 1 to 65534. Alternatively, you can specify a protocol number between from 0 to 255.
Based on the above options, you can select the IP Protocol and specify a Port/Number.
Click Save.
