Add a syslog notification profile

You can add notification profiles that will be displayed in the Syslog page.

1. Click in the Syslog page.

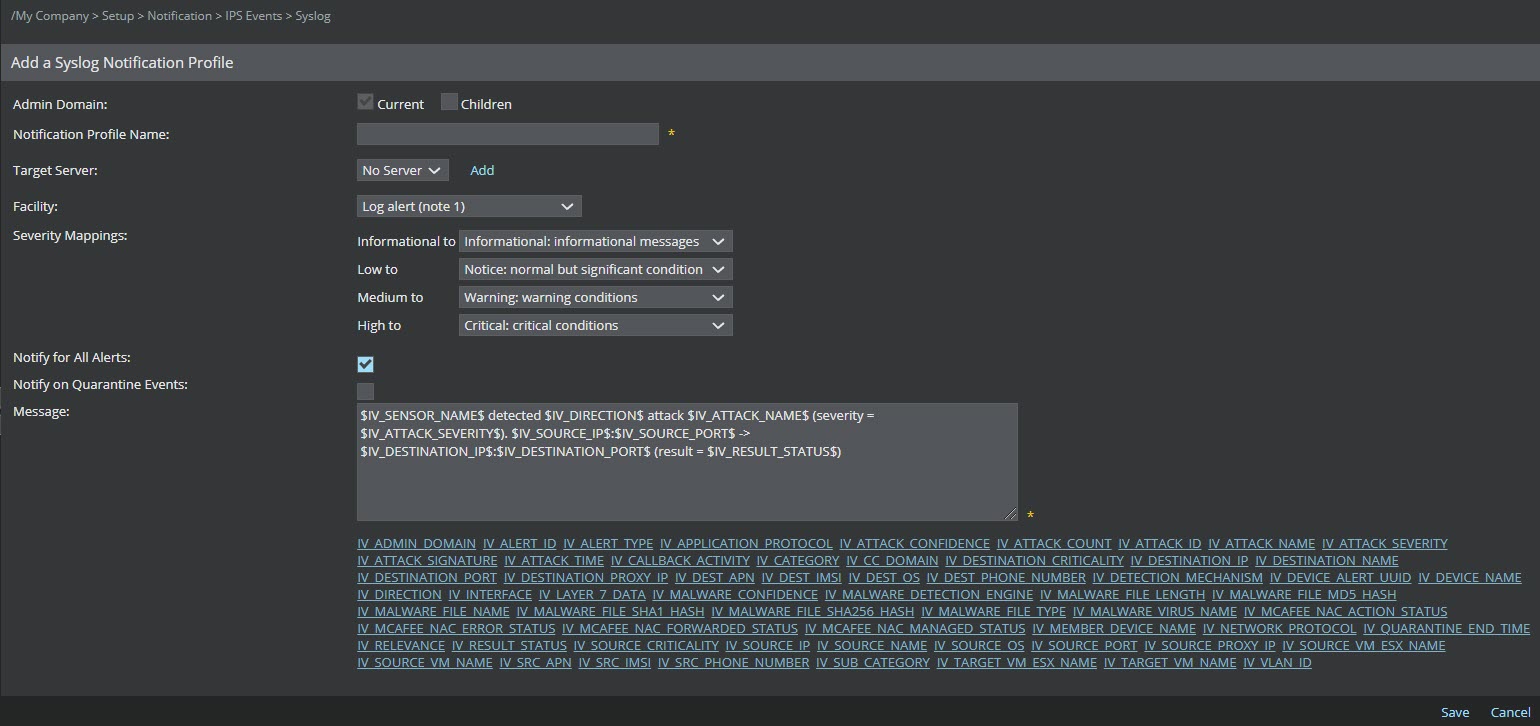

   The Add a Syslog Notification Profile page is displayed.
2. Specify your options in the corresponding fields.





   Field	Description
   Admin Domain	Current — Send notifications for alerts in the current domain. Always enabled for current domain by default. Children — Include alerts for all child domains of the current domain (Not applicable to NTBA)
   Notification Profile Name	Profile name from where notifications are sent
   Target Server	You can perform the listed action on the target server: Add — To add a new target server Note For more information on adding a new syslog forwarder target server profile, see Add a syslog server profile. Edit — To edit the target server Delete — To delete the target server Note For more information on editing or deleting a new syslog forwarder target server profile, see Edit or delete a syslog server profile.
   Facility	Standard syslog prioritization value. The choices are as follows: Security/authorization (code 4) Security /authorization (code 10) Log audit (note 1) Log alert (note 1) Clock daemon (note 2) Local user 0 (local0) Local user 1 (local1) Local user 2 (local2) Local user 3 (local3) Local user 4 (local4) Local user 5 (local5) Local user 6 (local6) Local user 7 (local7)
   Severity Mappings	You can map each severity (Informational, Low, Medium, or High) to one of the standard syslog severities listed below: Emergency — System is unusable Alert — Action must be taken immediately Critical — Critical conditions Error — Error conditions Warning — Warning conditions Notice — Normal but significant condition Informational — Informational messages Debug — Debug-level messages
   Notify for All Alerts	By default, this checkbox will be selected. Notifies for all discovered attacks.
   The following field is enabled only on deselecting the Notify for All Alerts checkbox.
   Only Notify When	The attack definition has this notification option explicitly enabled Send notification for attacks that match customized policy notification settings, which you must set when editing attack responses within the policy editor (Policy → <Admin Domain Name> → Intrusion Prevention → Policy Types) → IPS based on the following filters: Severity High — Includes only high severity alerts Severity Informational and above — Includes all alerts Severity Low and above — Includes low, medium, and high severity alerts Severity Medium and above — Includes both medium and high severity alerts
   Notify on Quarantine Events (not applicable to NTBA Appliance)	Select this checkbox to see quarantine events.
   Message	The default message is a quick summary of an alert with two fields for easy recognition: Attack Name and Attack Severity. A default message reads: $IV_SENSOR_NAME$ detected $IV_DIRECTION$ attack $IV_ATTACK_NAME$ (severity = $IV_ATTACK_SEVERITY$). $IV_SOURCE_IP$:$IV_SOURCE_PORT$ -> $IV_DESTINATION_IP$:$IV_DESTINATION_PORT$ (result = $IV_RESULT_STATUS$) Note For syslog message to appear correctly, ensure that you use the dollar-sign ($) delimiter immediately before and after each parameter. Example: $ATTACK_TIME$ Type a message and select (click) the parameters for the wanted alert identification format. You can type custom text in the Message field. Note Prior to Sensor software version 10.1.5.116, the variables $IV_MALWARE_FILE_SHA1_HASH$ and $IV_MALWARE_FILE_SHA256_HASH$ do not display the file hashes.

3. Click Save.
   The newly added notification profile will be displayed in the Syslog page.

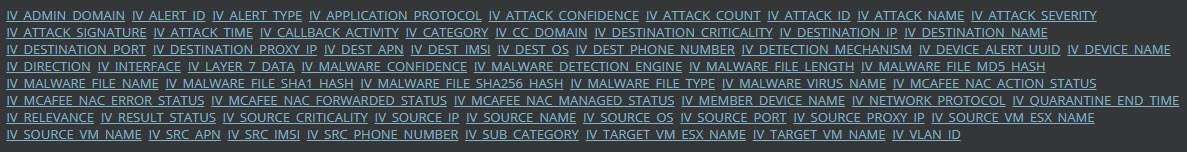

   Syslog variables for alert notification and the equivalent Attack Log columns

   Syslog variable name	Description	Attack Log column
   $IV_ADMIN_DOMAIN$	The domain to which the Sensor that detected the attack belongs	Domain
   $IV_ALERT_ID$	The globally unique ID that the Manager assigns to an alert	Alert ID
   $IV_ALERT_TYPE$	The Sensor decides the type of alert. This is mainly used by the Manager for its internal processing. This is not related to the Attack Category or Attack Sub-category. Some example alert types are signature, statistical anomaly, threshold anomaly, port scan, and host sweep.	Not available
   $IV_APPLICATION_PROTOCOL$	The application-layer protocol associated with the attack traffic. This is not related to the Application Identification feature, and this information is displayed even if you have not enabled Application Identification. There could be instances when a Sensor might not be able to detect the protocol.	Not available
   $IV_ATTACK_CONFIDENCE$	This is a value between 1 and 7. For example, a confidence level of 7 indicates that there is low possibility of the attack being a false-positive. The attack confidence values are inversely related to the Benign Trigger Probability (BTP) values of attack signatures. Confidence 1 = BTP 7 (high) Confidence 2 = BTP 6 (high) Confidence 3 = BTP 5 (medium) Confidence 4 = BTP 4 (medium) Confidence 5 = BTP 3 (medium) Confidence 6 = BTP 2 (low) Confidence 7 = BTP 1 (low) Note When the BTP value is 0, there is no corresponding confidence value for the attack.	Not available
   $IV_ATTACK_COUNT$	The number of types the attack occurred. This information is more relevant for suppressed alerts. Consider you have enabled alert suppression such that the alert is raised only when the attack is seen 5 times within 30 seconds. Subsequently, the Sensor detected this attack 10 times within 30 seconds. Then the attack count for this alert is 10.	Attack Count
   $IV_ATTACK_ID$	Trellix Labs assigns a universally unique hexadecimal value to each attack. This field displays the integer value of the hexadecimal ID assigned by Trellix Labs.	The equivalent hexadecimal value is displayed in the Attack Information & Description page as Intruvert ID.
   $IV_ATTACK_NAME$	The name assigned by Trellix Labs to an attack	Name
   $IV_ATTACK_SEVERITY$	Indicates the severity value of an attack specified in the corresponding attack definition. 0 - Informational 1 to 3 - low 4 to 6 - medium 7 to 9 - high	Attack Severity (high, medium, low, or informational)
   $IV_ATTACK_SIGNATURE$	The ID of the signature that matched the attack traffic	Not available
   $IV_ATTACK_TIME$	The time when the Sensor created the alert	Time
   $IV_CALLBACK_ACTIVITY$	The name of the Callback Activity family	Callback Activity
   $IV_CATEGORY$	The category to which the attack belongs. This is decided by Trellix Labs. Some examples are exploit, policy violation, and reconnaissance. You can view the attack categories in the IPS Policy Editor when you group by Attack Category.	Attack Category
   $IV_CC_DOMAIN$	The name of the Callback Activity domain	C&C Domain
   $IV_DESTINATION_CRITICALITY$
   $IV_DESTINATION_IP$	The destination IP address to which the attack is destined	Target IP address
   IV_DESTINATION_PORT$	The port number on the destination host to which the attack traffic is sent	Target Port
   $IV_DESTINATION_PROXY_IP	The IP address of the proxy server	Target Proxy IP
   $IV_DEST_APN$	This is the destination Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.	Not available
   $IV_DEST_IMSI$	This is the destination International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.	Not available
   $IV_DEST_OS$	The operating system installed on the destination host	Target OS
   $IV_DEST_PHONE_NUMBER$	This is the destination mobile phone number. The details provided for APN above apply to this as well.	Not available
   $IV_DETECTION_MECHANISM$	The method the Sensor used to detect the attack. For example, signature, multi-flow-correlation, threshold, and so on. Each method relates to a specific attack category.	Detection (in Alert Details panel)
   $IV_DIRECTION$	Indicates whether the attack traffic originated from your network or the outside network. For example, inbound direction means that the attack traffic originated from the outside network, targeting the hosts on your network.	Direction
   $IV_INTERFACE$	The interface or sub-interface on which the Sensor detected the attack traffic	Interface
   $IV_LAYER_7_DATA$	Provides the Layer 7 data	Layer 7 Data
   $IV_MALWARE_CONFIDENCE$	Confidence level of the malware as detected by the engine	Malware Confidence
   $IV_MALWARE_DETECTION_ENGINE$	Engine which detected the malware (Gateway Anti-Malware, Global Threat Intelligence, PDF‑JS, etc)	Engine
   $IV_MALWARE_FILE_LENGTH$	The length of the malware file	Not available
   $IV_MALWARE_FILE_MD5_HASH$	The MD5 hash of the malware file (fingerprint)	File Hash
   $IV_MALWARE_FILE_NAME$	The name of the malware file. For SMTP traffic, it displays the file name of the attachment and for HTTP traffic, it displays the URL of the file.	File Name
   $IV_MALWARE_FILE_SHA1_HASH$	The SHA1 hash of the malware file (fingerprint)	File Hash
   $IV_MALWARE_FILE_SHA256_HASH$	The SHA256 hash of the malware file (fingerprint)	File Hash
   $IV_MALWARE_FILE_TYPE$	The file type of the malware file	Not available
   $IV_MALWARE_VIRUS_NAME$	The virus name as detected by Gateway Anti-Malware	Not available
   $IV_NETWORK_PROTOCOL$	The network protocol, such as TCP, of the attack traffic	Protocol (in Alert Details panel)
   $IV_QUARANTINE_END_TIME$	The time when the attacking host will be out of quarantine. This is relevant only if you had enabled Quarantine feature.	Not available
   $IV_RESULT_STATUS$	Indicates whether the attack traffic reached the victim host	Result
   $IV_SENSOR_ALERT_UUID$	The universally unique ID assigned by the Sensor for the alert. For a specific alert raised by a specific Sensor, the Central Manager also displays the same ID.	Alert ID
   $IV_SENSOR_CLUSTER_MEMBER$	The member Sensor of a HA pair that generated the alert	Not available
   $IV_SENSOR_NAME$	The Sensor that generated the alert	Device
   $IV_SOURCE_IP$	The IP address of the attacking host	Attacker IP address
   $IV_SOURCE_OS$	OS of the attacking host	Attacker OS (in Alert Details panel)
   $IV_SOURCE_PORT$	The port number on the attacking host from which the attack traffic is sent	Attacker Port
   $IV_SOURCE_PROXY_IP$	The IP address of the proxy server	Attacker Proxy IP
   $IV_SRC_APN$	This is the source Access Point Name (APN). This information is part of a mobile subscriber's identity data and is relevant only if you have deployed Sensors to monitor mobile networks. To see this data, you must enable capturing and tagging of mobile subscriber data in the alerts by using the set mnsconfig Sensor CLI command.	Not available
   $IV_SRC_IMSI$	This is the source International Mobile Subscriber Identity (IMSI). The details provided for APN apply to this as well.	Not available
   $IV_SRC_PHONE_NUMBER$	This is the source mobile phone number. The details provided for APN apply to this as well.	Not available
   $IV_SUB_CATEGORY$	The subcategory to which the attack belongs. This is decided by Trellix Labs, and is a classification within Attack Category. Some examples are brute-force, buffer-overflow, host-sweep, and restricted-application. You can view the attack subcategories in the IPS policy editor when you group by Attack Subcategory.	Attack Subcategory (in Alert Details panel)
   $IV_VLAN_ID$	The VLAN ID seen on the attack traffic	VLAN
