Add an inspection options policy

This page can be used to customize the policies as well as to configure the inspection options at the interface level. Inbound refers to any traffic destined for the internal network from an external source. Outbound refers to any traffic that originated from your internal network.

Note
Each window has either a Save or a Cancel button. Clicking Save saves the information to the database and closes all policy configuration actions. Clicking Cancel ends any operation and closes the window. If you want to continue creating or modifying a policy, do not click Save until you have completed every tab, step, or action available in the window.

In the Manager, click Policy and select the required Domain.
Select Intrusion Prevention → Policy Types → Inspection Options.
The Inspection Options page is displayed.
Inspection Options Policies page

The following are the available default inspection options policies:
- Default Client Inspection — To inspect traffic from internal endpoints as they access the Internet
- Default Server Inspection — To inspect traffic to exposed Web and mail servers
- Default Client and Server Inspection — To inspect traffic both from internal endpoints and to exposed Web and mail servers
Click .
The New Policy window opens with the Properties tab selected.

Update the following fields:

Option	Definition
Name	Enter a unique name to easily identify the policy.
Description	Describe the policy for other users to identify its purpose.
Owner	Displays the admin domain to which the policy belongs
Visibility	When selected, makes the policy available to the corresponding child admin domains. However, the policy cannot be edited or deleted from the child admin domains. From the drop-down list, select the option for the visibility level of the rule object. Available options are Owner and child domains and Owner domain only.
Editable here	The status Yes indicates that the policy is owned by the current admin domain. This field is uneditable.
Statistics
Lasted Updated	Displays the time stamp when the policy was last modified. This field is uneditable.
Last Updated By	Displays the user who last modified the policy. This field is uneditable.
Assignments	Indicates the number of inline ports to which the policy is assigned
Prompt for assignment after save	If you deselect this option you can save the policy now and assign it to the Sensor resources as explained in the following section. If you select this option, the Assignments window opens automatically when you save the policy and you can assign the policy to the required Sensor resources.
Cancel	Reverts to the last saved configuration

Click Next.

The Inspection Options tab is displayed. By default, the Traffic Inspection tab within the Inspection Options tab is displayed.

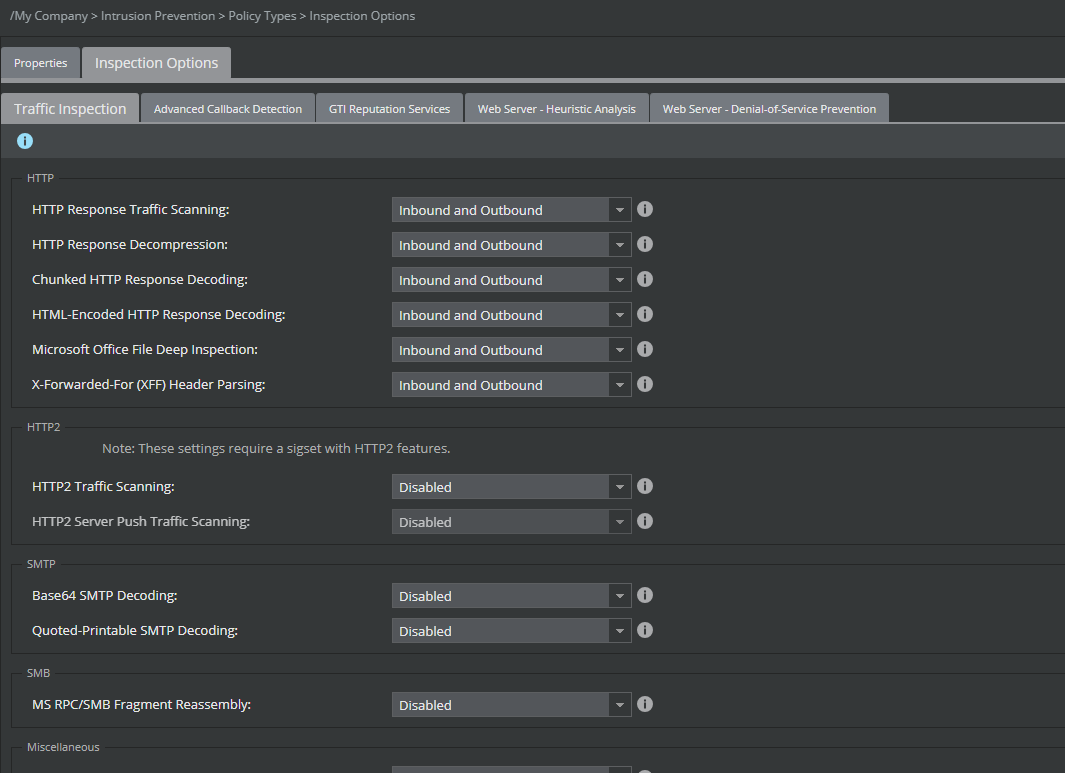

Traffic Inspection

Option

Definition

HTTP Response Traffic Scanning

Enabling this option instructs the Sensor to inspect HTTP response headers and payload for attacks.

The HTTP Response Traffic Scanning option is disabled by default because scanning response traffic requires extra system resources. To minimize the impact on performance, we recommend enabling this option only where necessary.

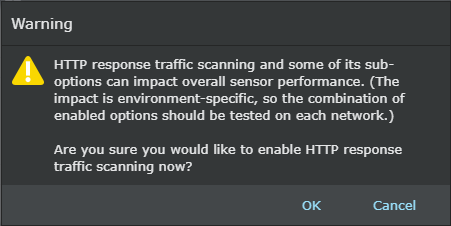

When you enable the HTTP Response Traffic Scanning option a warning message is displayed.

HTTP Response Decompression

HTTP response traffic is commonly compressed in gzip format to improve performance. This format reduces transfer time and bandwidth consumption. However, attackers use it to evade detection of malicious payload. Enabling this option instructs the Sensor to decompress compressed HTTP response traffic for inspection.

Note
The HTTP Response Decompression option is disabled if the HTTP Response Traffic Scanning option is selected as disabled.

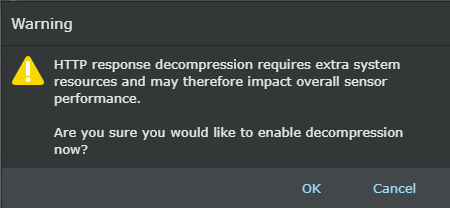

When you enable the HTTP Response Decompression option a warning message is displayed. Review the warning message and click OK to proceed.

Note the following if you use this option:

HTTP response decompression is supported for gzip compressed files only.
Advanced malware inspection of decompressed files is not supported.

Chunked HTTP Response Decoding

Chunked transfer encoding is a data transfer mechanism of HTTP. The web server breaks the HTTP response content into chunks. Chunked transfer encoding uses the HTTP response header in place of the content-length header, which the protocol would otherwise require.

Enabling this option instructs the IPS Sensor to decode chunked HTTP response traffic for inspection.

Note
Chunked HTTP Response Decoding field is disabled if the HTTP Response Traffic Scanning field option is selected as disabled.

HTML-Encoded HTTP Response Decoding

HTTP response traffic can be sent using HTML encoding, and attackers can use this encoding mechanism to evade detection of malicious payload. Enable this for the Sensor to decode such traffic for inspection. Some of the encoding techniques used are:

Deflate — This compression technique is used mainly to compress data in PDF file formats. PDF documents support using “deflate” encoding in parts of the document.
HTML encoding — The HTML response data is encoded using the "&#" encoding technique. The encoding can be in decimal or hexadecimal format.
Base64 — Base64 encoding is used to encode binary data that is to be stored and transferred over media that are designed to deal with textual data. This encoding technique ensures that the data remains intact without modification during transport.
Enabling this option instructs the IPS Sensor to decode HTML-encoded HTTP response traffic for inspection.

Note
HTML-Encoded HTTP Response Decoding is disabled when Response Scanning is disabled.

Microsoft Office File Deep Inspection

Microsoft Office version 2007 and later uses Office Open XML format, a zipped XML based file format. The zipped file contains multiple files upon extraction. Enabling this option instructs the Sensor to decompress compressed Office files for inspection.

Note
Microsoft Office File Deep Inspection field is disabled if the HTTP Response Traffic Scanning field option is selected as disabled.

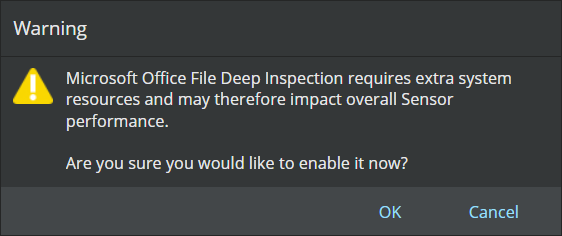

When you enable this option, a warning message is displayed. Review the warning message and click OK to proceed.

For more information, see Microsoft Office File Deep Inspection.

X-Forwarded-For (XFF) Header Parsing

Enabling this option allows the Manager to indicate when a connection has been proxied and report both the proxy server IP address and the true endpoint IP address.

HTTP2 Traffic Scanning

Enabling this option instructs the Sensor to inspect HTTP2 request and response traffic.

Note
By default, HTTP2 traffic inspection is disabled.
HTTP2 Traffic Scanning can be enabled only when HTTP Response Traffic Scanning is enabled.

For more information, see Enable HTTP2 traffic inspection from the Manager in the sectionHTTP2 traffic inspection.

HTTP2 Server Push Traffic Scanning

Enabling this option instructs the Sensor to inspect HTTP2 push response from server.

Note
HTTP2 Server Push Traffic Scanning can be enabled only when HTTP2 Traffic Scanning is enabled.

Base64 SMTP Decoding

Enabling this option instructs the IPS Sensor to decode Base64-encoded SMTP for inspection.

Quoted-Printable SMTP Decoding

The SMTP protocol specification uses MIME content transfer encoding to transport binary data. Since SMTP protocol can handle only 7-bit ASCII data, each 3-byte group of binary data is converted to 6-bit number and replaced with an ASCII character.

Quoted-printable and Base64 are the two basic MIME content transfer encodings. Quoted-printable encoding uses printable ASCII characters, such as alphanumeric and the equals sign (=), to transmit 8-bit data over a 7-bit data path.

Enabling this option instructs the IPS Sensor to decode quoted-printable encoded SMTP for inspection.

MS RPC/SMB Fragment Reassembly

SMB is a network file sharing protocol. MS-RPC provides a framework for interprocess communication mechanism to exchange data between two processes residing on the same system or on two remote systems accessible over a network. MS-RPC's transport layer could be TCP, UDP, HTTP, or SMB. SMB protocol supports segmentation of its data.

Also, MS-RPC protocol supports fragmentation of its payload. Since MS-RPC can be carried within SMB protocol data, either fragmentation or segmentation or a combination of both can be used to evade any network packet inspection device.

Enabling this option instructs the IPS Sensor to reassemble MS RPC/SMB fragments for inspection.

Layer 7 Data Collection

Enabling this option instructs the Sensor to include Layer 7 information, such as HTTP URLs, SMTP email addresses, and FTP logon names, in alerts and to export them to NTBA appliances for analysis. The following options are available in this field:

Disabled
Inbound Only
Outbound Only
Inbound and Outbound Only

By default, the option Disabled is selected.

Passive Device Profiling

Enabling this option instructs the Sensor to parse DHCP, TCP, and HTTP packets to identify the device type and operating system, and to make that information available for display for attack relevance analysis.

Simulated Blocking

Enabling this option instructs the Sensor to merely simulate blocking, sending a TCP reset, and ICMP host unreachable message. Simulation applies to signature-based attack definitions only. The following options are available in this field:

Enabled
Disabled

Prompt for assignment after save

When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.

Save

Click Save to save the changes

Cancel

Reverts to the last saved configuration

All fields except Simulated Blocking have the following 4 options:

Disabled
Inbound only
Outbound only
Inbound and Outbound

Click the Advanced Callback Detection tab.

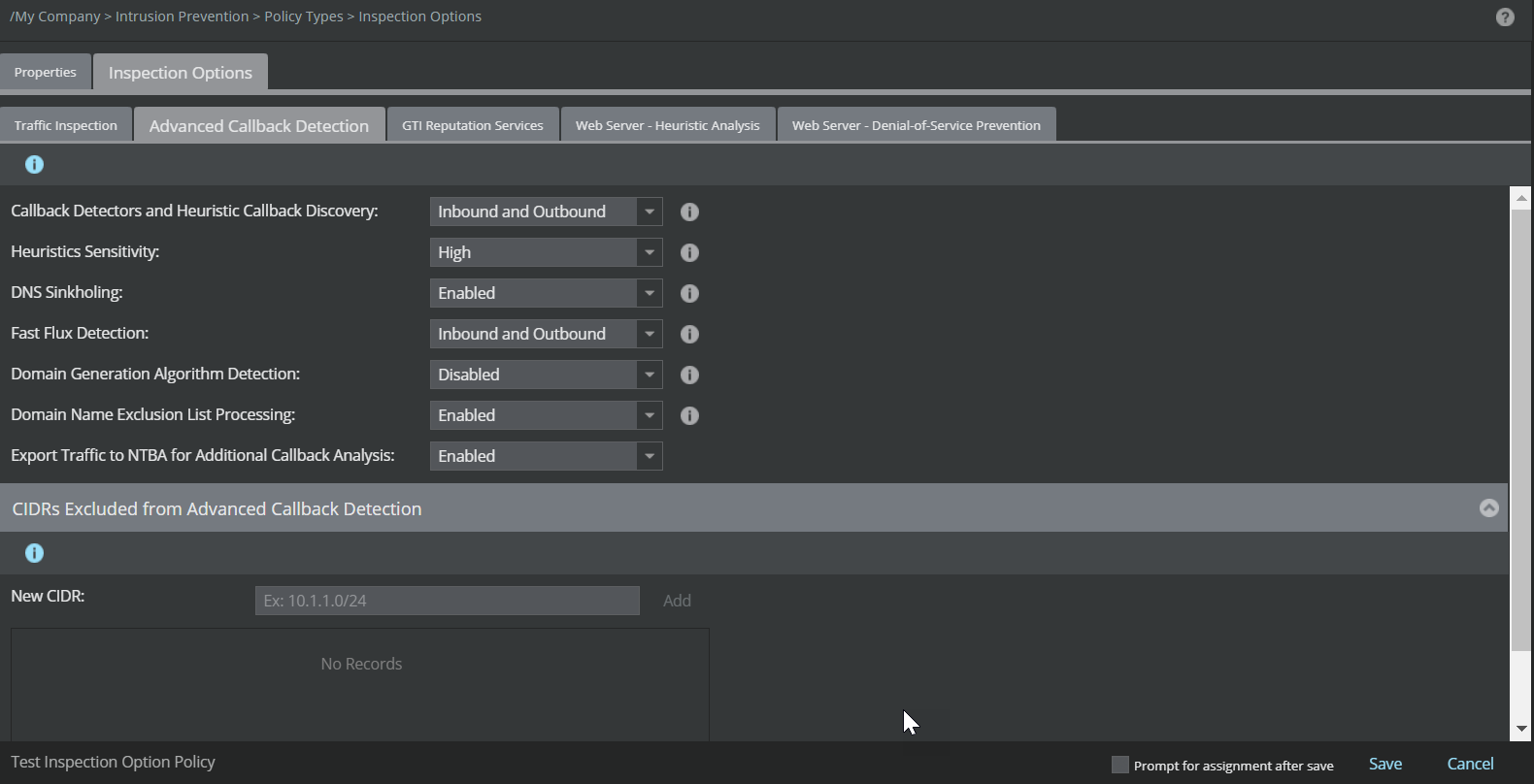

Advanced Callback Detection

The Advanced Callback Detection tab displays the following fields:

Option	Definition
Callback Detectors and Heuristic Callback Discovery	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound Note If you wish to disable Layer 7 Data Collection option in Traffic Inspection ensure that Callback Detectors and Heuristic Callback Discovery option is also disabled.
Heuristic Sensitivity	The sensitivity level determines the level of confidence the heuristic engine must have for the analysis. For example, when a low sensitivity level (default) is selected, the engine must have high confidence that it has detected a Bot before raising an alert. Select the following sensitivity level options: High Medium Low
DNS Sinkholing	Select any of the following options: Enabled Disabled
Fast Flux Detection	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound
Domain Generation Algorithm Detection	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound
Domain Name Exclusion List Processing	Select any of the following options: Enabled Disabled
Export Traffic to NTBA for Additional Callback Analysis	Enable this option to send the Botnet events to NTBA for further analysis.
CIDRs Excluded from Advanced Callback Detection
New CIDR	Enter the new CIDR and click Add to add to the CIDR list to be excluded. Click to remove the CIDR from the list.
Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
Save	Click Save to save the changes.
Cancel	Reverts to the last saved configuration

Click the GTI Reputation Services tab.

Endpoint Reputation Analysis

The Endpoint sub-tab in the GTI Reputation Services tab displays the following fields:

Option	Definition
Endpoint Reputation Analysis	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound Note Make sure Layer 7 Data Collection is enabled in Traffic Inspection tab to detect the GTI risky URL attacks.
Use Endpoint Reputation to Influence SmartBlocking	Select Enabled to enable endpoint reputation to Influence SmartBlocking. Select Disabled to disable the option.
Exclude Internal Endpoints from GTI Lookups	Select Enabled to exclude internal endpoints from Trellix GTI Lookups. Select Disabled to disable the option.
CIDRs Excluded from Endpoint Reputation Lookups
New CIDR	Enter the new CIDR and click Add to add to the CIDR list to be excluded. Click to remove the CIDR from the list. Note The CIDR exclusion list is shared by Advanced Callback Detection and Endpoint Reputation Analysis
Protocols Excluded from Endpoint Reputation Lookups	In the drop-down list, select the protocol to be excluded from Trellix GTI Lookups and click Add. The selected protocol is displayed in the field below. Click to remove the protocol from the list.
Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
Save	Click Save to save the changes.
Cancel	Reverts to the last saved configuration

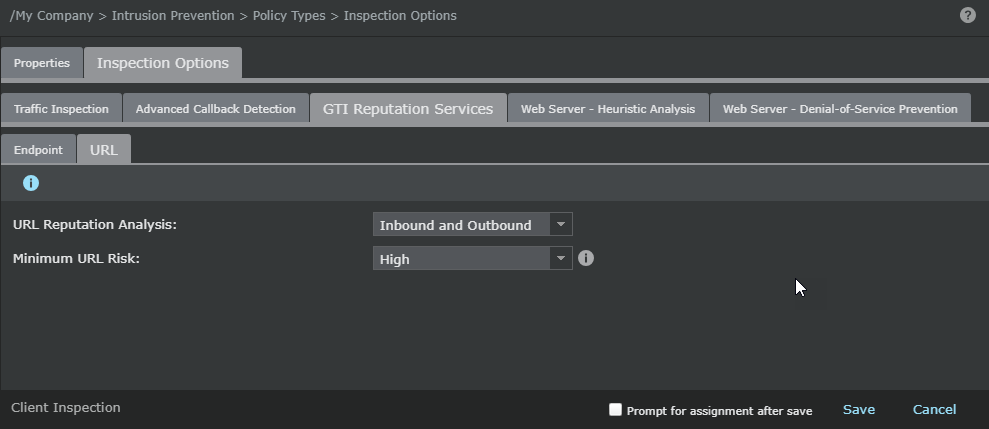

The URL sub-tab in the GTI Reputation Services tab displays the following fields:

Option	Definition
URL Reputation Analysis	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound
Minimal Risk URL	Select any of the following options: Medium High
Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
Save	Click Save to save the changes.
Cancel	Reverts to the last saved configuration

Click the Web Server- Heuristic Analysis tab. In the Web Server- Heuristic Analysis, you can enable behavior-based detection of attacks against your web servers. You can also optionally add blocked text, such as the name of a stored procedure that is treated as an attack.

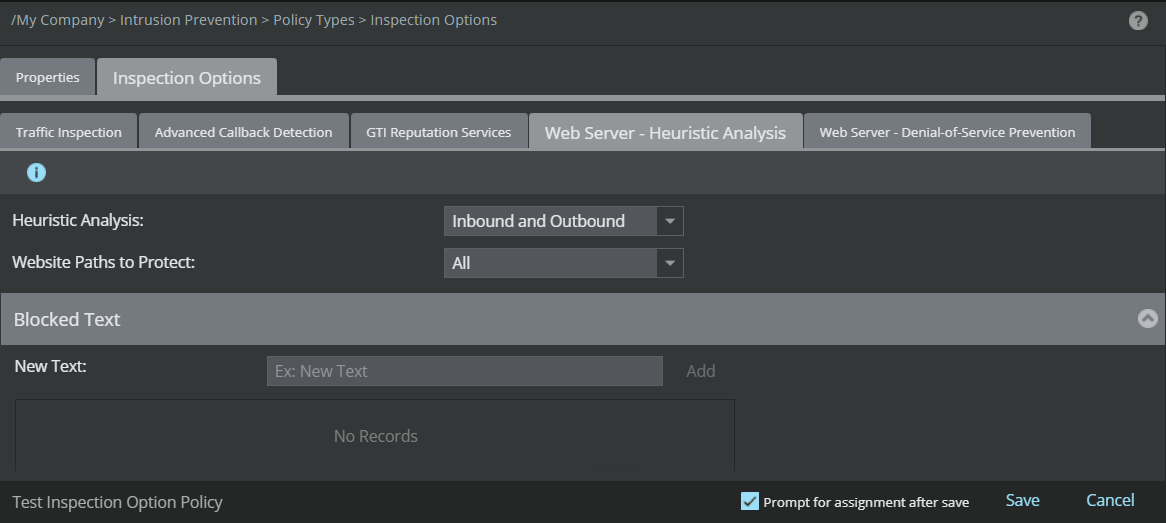

Web Server- Heuristic Analysis

The Web Server- Heuristic Analysis tab displays the following fields:

Option	Definition
Heuristic Analysis	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound
Website Paths to Protect	Select All to protect all website paths or select Specific to protect specific website paths.
Website Paths to Protect
New Website Path	Enter the website paths that you want to protect and click Add. The website path is displayed in the field below. Click to remove the website path from the list. Note This field is displayed only when you select the option Specific in field Website Paths to Protect
Blocked Text
New Text	Enter the blocked text which is treated as an attack and click Add.The blocked text is displayed in the field below. Click to remove the blocked text from the list.
Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
Save	Click Save to save the changes.
Cancel	Reverts to the last saved configuration

Click the Web Server - Denial-of-Service tab. In Web Server - Denial-of-Service, you can configure to prevent denial-of-service attacks.

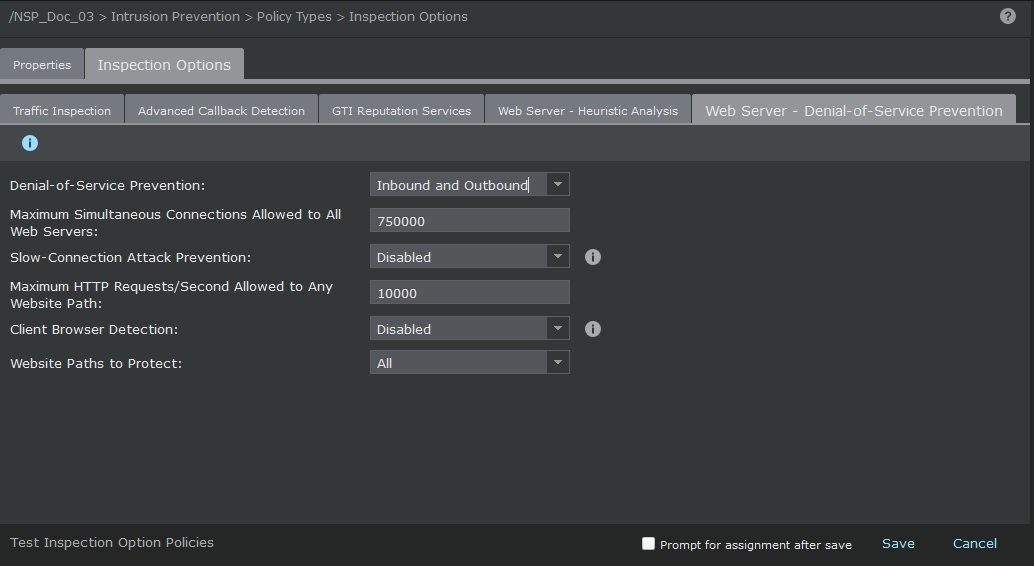

Web Server - Denial-of-Service Prevention

The Web Server - Denial-of-Service Prevention tab displays the following fields:

Option	Definition
Denial-of-Service Prevention	Select any of the following options: Disabled Inbound only Outbound only Inbound and Outbound
Maximum Simultaneous Connections Allowed to All Web Servers	Specify the threshold for maximum connections allowed to all web servers.
Slow-Connection Attack Prevention	Select the option Enabled to close 10 percent of the oldest slow open connections. This option is Disabled by default.
Maximum HTTP Requests/Second Allowed to Any Website Path	Specify the maximum HTTP requests/second that should be allowed to any website path.
Client Browser detection	Select the option Enabled or Disabled.
Browser Detection Method	The detection methods use the challenge/response mechanism to detect a valid client browser. The options are HTML Challenge and JavaScript Challenge Note This field is displayed only when you select the option Enabled in field Client Browser detection
Website Paths to Protect	Select All to protect all website paths or select Specific to protect specific website paths.
Website Paths to Protect
New Website Path	In the first text field, enter the website paths that you want to protect and in the second text field, enter the maximum number of requests per second to any website. click Add. The website path and the maximum requests per second is displayed in the field below. Click to remove the website path and requests per second from the list. Note This field is displayed only when you select the option Specific in the field Website Paths to Protect
Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
Save	Click Save to save the changes.
Cancel	Reverts to the last saved configuration
