Add Vulnerability Manager scan configurations

The fourth and final step in Vulnerability Manager configuration is adding Vulnerability Manager scan configurations.

You can define Scan Configurations (also known as scans) in the Vulnerability Manager system for different host IP address ranges, and then add them to Manager.

When you add a scan configuration to the Manager, a check on whether this scan configuration exists in the Vulnerability Manager database is done. If the scan configuration exists, it is saved in the Manager database. The scan configuration is also updated in the Manager cache.

Manager cache contains the scan configuration ID and the IP address ranges defined in the scan configuration. When the user requests for an on-demand scan of a host IP address from Threat Explorer, the appropriate scan configuration ID is selected. Then, the scan configuration associated with the scan configuration ID is used to scan the host IP address.

Note

Important pre-requisite: You need to run the scan configuration defined in the Vulnerability Manager engine once, before adding a scan configuration to Manager. Each scan configuration defined in the Vulnerability Manager is associated with a Vulnerability Manager engine. When you run the scan configuration for the first time at the Vulnerability Manager side, the Vulnerability Manager engine in which the scan configuration was last executed, gets associated with that scan configuration. This step is essential for successfully adding the scan configuration to Manager.

Tip

It is recommended that you define a common user in the organizations defined in the Vulnerability Manager side. Ensure that this user has full access permissions to Vulnerability Manager engine. Through this user, you can conveniently access various scan configurations defined in all the organizations in Vulnerability Manager. This will ease the access of scan configurations defined in Vulnerability Manager. For more information about organizations and scan configurations, see the section Working with Scans in McAfee Vulnerability Manager Product Guide. The product names "Foundstone", and "Vulnerability Manager " refer to the same product.

1. Select Manager → <Admin Domain Name> → Integration → Vulnerability Assessment → MVM → Vulnerability Scanning → Scans.

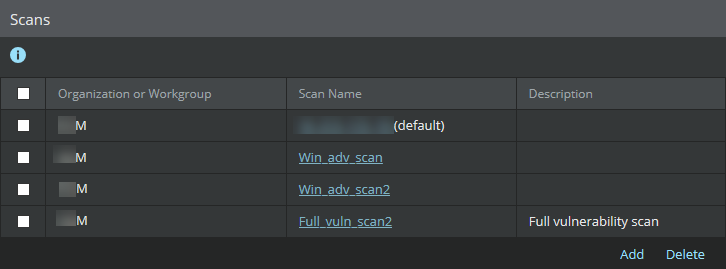

   The Added Vulnerability Manager Scan Configurations page appears.

   Note

   You can delete individual scan configurations or multiple scan configurations from the Added Vulnerability Manager Scan Configurations page. Click Delete to delete a scan configuration. For deleting multiple scan configurations, select the required checkboxes, and then click Delete.

2. To add a scan configuration, click New.

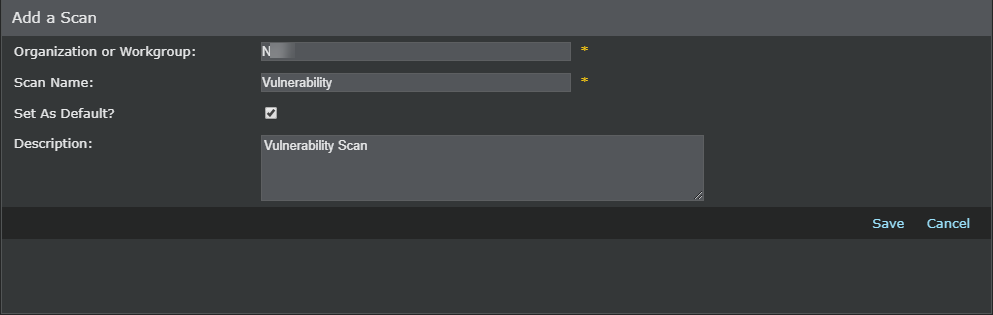

   The Add a Scan window allows you to enter scan configurations, equivalent to already defined configurations in the Scan engine for the different host IP address ranges.
3. Enter the Organization or Workgroup name.
4. Provide a name for the scan.
5. Select Set As Default? if you want to set this scan configuration as the default configuration.
6. If necessary, enter a description of the scan configuration in Description.
7. Select Save. The Added Vulnerability Manager Scan Configurations page displays all the scan configurations that are added to Manager.
   The configuration steps for Vulnerability Manager are complete at this point.
