Adding Ports to a Whitelist Using the Web UI

Prev Next

Use the Whitelist Settings page to add a port to a whitelist using the Web UI. You enter each port separately. You can add up to 256 port whitelist entries.


Important

Make sure the port whitelist is enabled after you have added the ports to the whitelist. For details about how to enable a port whitelist, see Enabling or Disabling a Port Whitelist Using the Web UI on page 1.

To add ports to a whitelist:
  1. In the Web UI, choose Settings > Whitelists.

  2. In the Port field, enter the relevant port to whitelist traffic.

  3. Click Add Port.

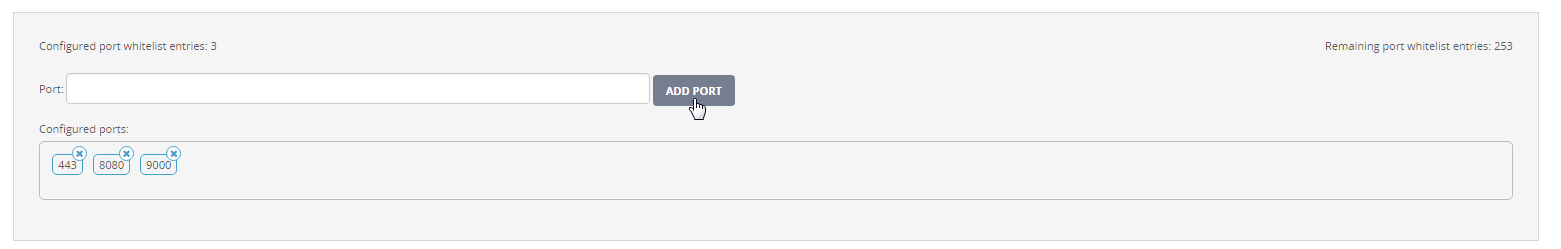

    The following message appears:

  4. Repeat the preceding steps on each additional port to add to a whitelist.

  5. Close the message.
