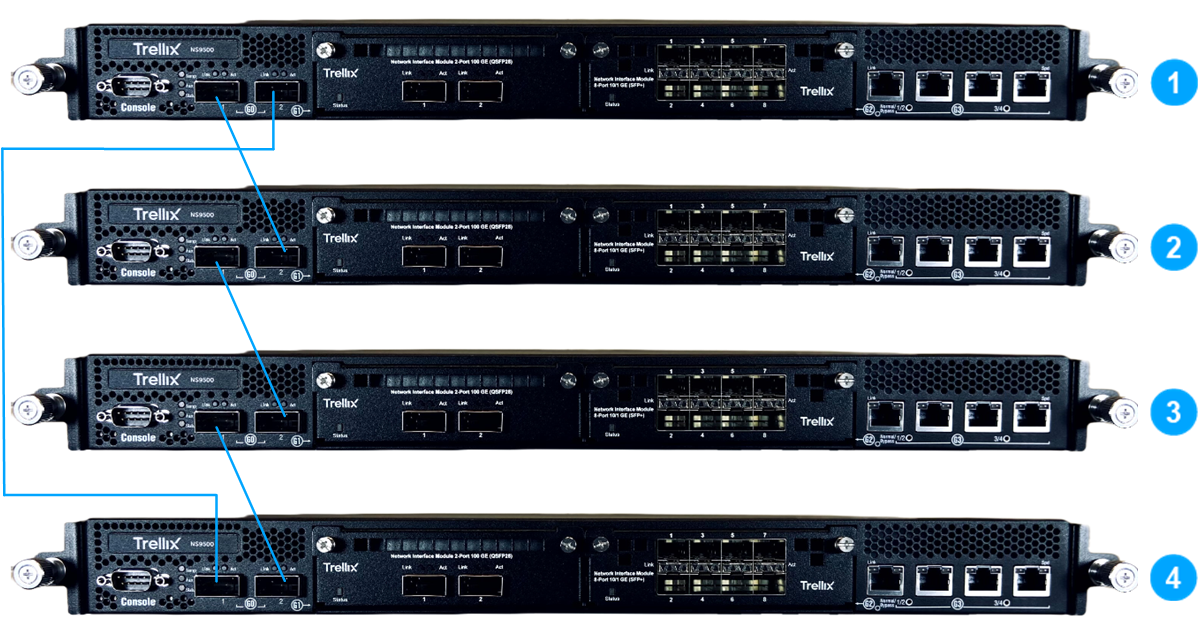

This procedure describes how to cable Sensors in a stack.
Plug the QSFP28 Direct Attach Copper (DAC) cable into the port G0/1 of the first Sensor.
Connect the other end of the cable into port labeled G0/2 of the second Sensor.
In case of a 4 node stack, repeat steps 1 and 2 for the other Sensors in the stack.
To complete the stack, plug the QSFP28 Direct Attach Copper (DAC) cable into the port labeled G0/2 of the first Sensor.
Connect the other end of the cable into port G0/1 of the last Sensor.
On the rear panel of each NS9500 Sensor, plug a RJ-45 cable in the Management port (labeled MGMT).
Plug the other end of the cable into the network device connected to your Manager server.
Note
In a NS9500 Sensor standalone stack, you can connect one Sensor to another Sensor only by using a QSFP28 module.
