Configuration options
.jpg "GUID-18AFEAD2-446D-4499-AA16-C1B7F9D96DAD-low.jpg")

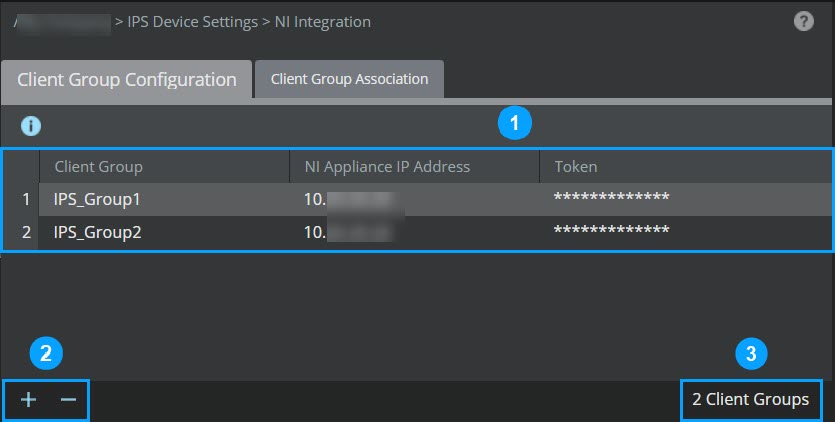

Callout | Description |
|---|---|
1 | Grid view |
2 | Bottom-left menu |
3 | Bottom-right menu |
The following options are available on the Client Group Configuration tab in the NI Integration page at the global level:
Options | Description |
|---|---|
Grid View | |
Client Group | The name of the Client Group as configured on the NI CLI for identification purpose |
NI Appliance IP Address | The IPv4 or IPv6 address of the NI appliance on which the Client Group being added is configured |
Token | The authentication hash value that is generated on the NI CLI after the configuration of the Client Group A unique hash value of 32 bytes is generated by the NI appliance for each Client Group being configured which is used by the Trellix IPS to establish a persistent connection with the NI appliance. |
Bottom-left menu | |
.jpg "GUID-8D2203E5-2C86-4970-8BBE-0E051DDA1A11-low.jpg") | Enables you to add the Client Groups configured on the NI CLI in the Manager. You can add one or more Client Groups configured using a single or multiple NI appliances |
.jpg "GUID-C5DB3A60-0A1C-4C8F-83A6-37EAFFF00433-low.jpg") | Enables you to delete to delete the Client Groups added in the Manager. You can delete only one Client Group at a time |
Bottom-right menu | |
<Number> Client Groups | This shows the number of Client Groups added in the Manager. |
