The NS3x00 front and rear panel details are described below.

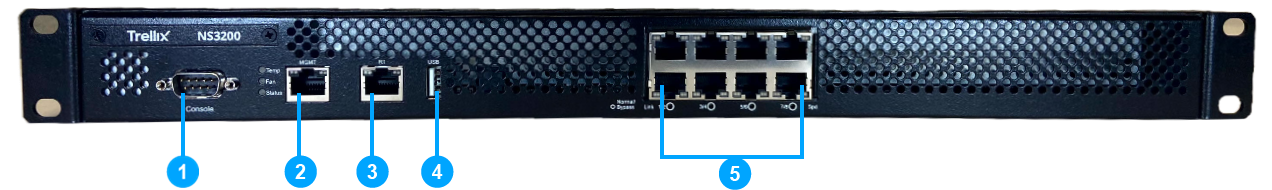

The NS3100/NS3200 Sensor model
Console port (1)
RJ-45 10/100/1000 Management port (MGMT) (1)
RJ-45 10/100/1000 Response port (R1) (1)
USB port (1)
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (8)

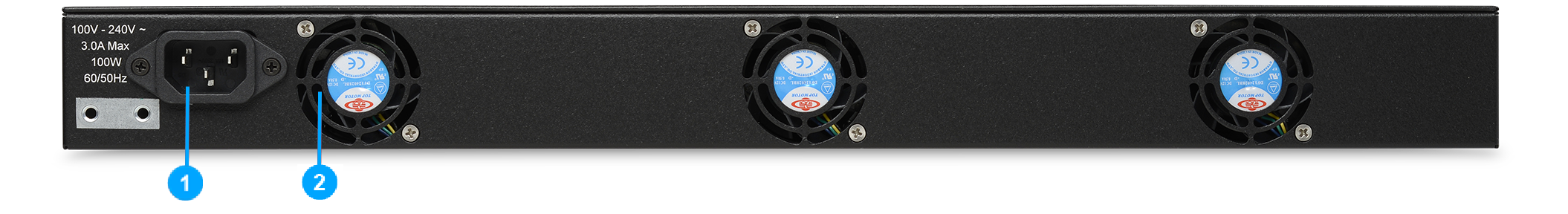

Power supply inlet (1)
Fan units (3)
The direction of airflow in all the Sensors is from front to back. Cold air enters through the front of the chassis.
The following table gives the details of the supported ports.
Ports | NS3100/NS3200 |
|---|---|
Fixed RJ-45 ports (internal fail-open) | 8 (10/100/1000 Mbps) |
Console port | 1 |
Dedicated Response ports (RJ-45) | 1 (10/100/1000 Mbps) |
Dedicated Management ports (RJ-45) | 1 (10/100/1000 Mbps) |
USB port | 1 |
Console port — Use to set up and configure the Sensor using the CLI.
RJ-45 10/100/1000 Mbps ethernet monitoring ports — Enables you to monitor eight SPAN ports, four segments in-line, or a combination
External USB port — Use these in troubleshooting situations for system recovery purposes. You need to restart the Sensor through the USB storage device.
RJ-45 10/100/1000 Management port — Use for communication with the Manager server. You can assign an IP address to this port during installation.
RJ-45 10/100/1000 Response port — When you operate this port in SPAN or tap mode, it enables you to inject response packets back through a switch or a router.
Power Supply — Power supply is included with an NS3x00 Sensor. The supply uses a standard IEC port (IEC320-C13). Trellix provides a standard, 2 m NEMA 5-15P (US) power cable (3 wire). International customers must procure a country-appropriate power cable.
The NS-series Sensor does not have internal taps; you must use it with a third-party external tap to run it in tapped mode.
