Correlate the pictures with the information following it to understand the components of an NS9600 Sensor.

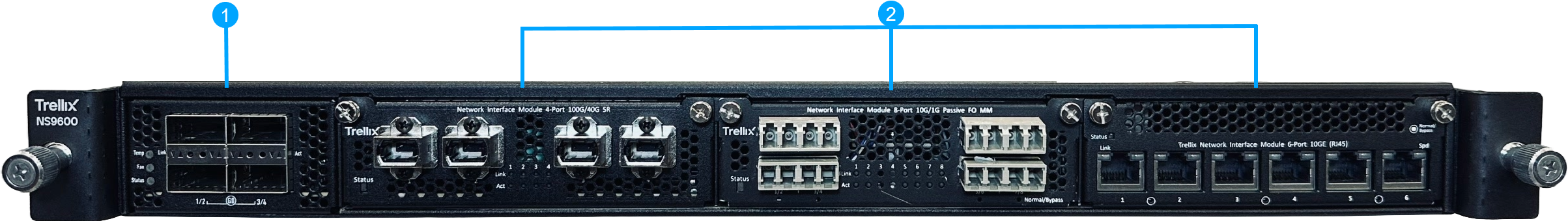

4 QSFP28 /QSFP+ 100/40 Gigabit Ethernet ports in built-in G0 module. These ports support the following BiDi, SR and LR transceivers:
40 Gbps (QSFP+) fiber
100 Gbps (QSFP28) fiber
Three slots for following interface modules -
In G1 and G2 (any combination of the interface modules can be used):
4-port 100/40 Gigabit SR MTP/MPO interface module
4-port 100/40 Gigabit SR MTP/MPO interface module with built-in fail open
4-port 40 Gigabit LR4 interface module with built-in fail open
4-port 100 Gigabit LR4 interface module with built-in fail open
4-port 100/40 Gigabit BiDi interface module with built-in fail open
in G1, G2, and G3 (Any combination of the interface modules can be used):
6-port RJ45 10/1 Gigabit Ethernet interface module with built-in fail open
8-port 10/1 Gigabit fiber (SM and MM) interface module with built-in fail open
Important
4-port 100/40 Gigabit with internal fail open interface modules (that is, 100/40 Gigabit SR MTP/MPO, 40 Gigabit LR4, 100 Gigabit LR4, and 100/40 Gigabit BiDi) are supported in NS9600 Sensors running on 11.1 Update 8 version or later.
Note
The supported interface modules need to be purchased separately.
Caution
Apart from the network interface modules mentioned above, no other interface modules are compatible with NS9600 Sensor.
Transceiver modules are supported in built-in G0 module only. The supported transceiver modules are QSFP28 (MM, SM, and DAC) and QSFP+ (MM and SM).

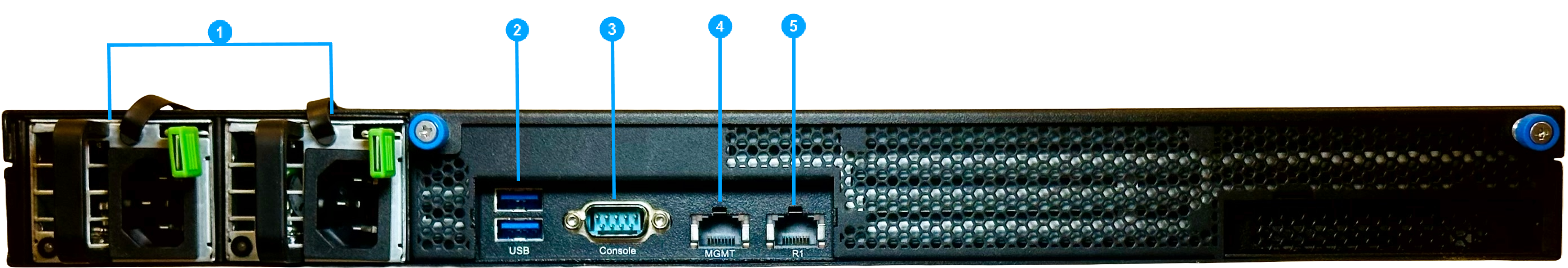

Power supply A/B (Pwr A/Pwr B)
USB ports (2)
Console port
RJ-45 1000/10000 Management port (Mgmt)
RJ-45 1000/10000 Response port (R1)
