Configure attack details

You can configure and update the attack settings either by inheriting the settings from the master IPS policy or set them explicitly in the attack details panel. The attack details panel has two tabs: Settings and Description. On the Settings tab, you can set the configurable fields for Sensor and Manager actions. The Description tab is a read-only tab where you can view the attack and signature details.

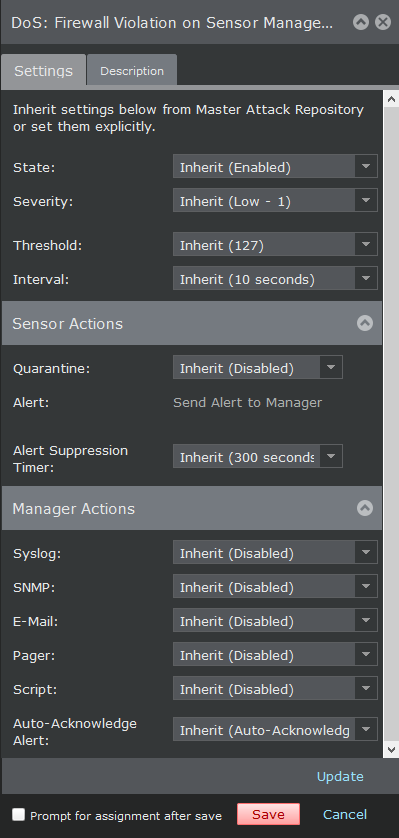

1. On the Attack Definitions tab, double-click on the row of the attack that you want to configure and update the settings. The attack details are displayed on the right panel displaying the settings under the Settings tab.





2. Configure the settings for the attack definitions

   The following fields are displayed for attacks of categories such as exploit, policy violation, malware, and reconnaissance:

   Option	Definition
   State	Select any following options: Inherit (Enabled) Enabled Disabled
   Severity	Select the severity level of the attack: Inherit (Medium - 5) Info - 0 Low - 1 Low - 2 Low - 3 Medium - 4 Medium - 5 Medium - 6 High - 7 High - 8 High - 9
   Threshold	This field is displayed only configuring attacks of type DoS Threshold and Reconnaissance Correlation attacks. Select the severity level of the attack: Inherit Set explicitly Note If you select the option Set explicitly, specify the threshold value in the number field.
   Interval	This field is displayed only configuring attacks of type DoS Threshold and Reconnaissance Correlation attacks. Select the interval duration: Inherit Set explicitly Note If you select the option Set explicitly, specify the interval duration seconds in the number field.
   Sensor Actions
   Response
   Block	Select any of the following blocking options: Inherit (Disabled) Enable Blocking Enable SmartBlocking Disabled
   Quarantine	Select any of the following quarantine options: Inherit (Disabled) Quarantine Attacker Quarantine and Remediate Attacker Disabled
   TCP Reset	Select any of the following TCP reset options: Inherit (Disbaled) Reset Src - resets to the source. Reset Dest - resets to the destination. Reset Src and Dest - resets to the source and destination. Disabled
   ICMP Message	Select any of the following ICMP message options: Inherit (Disabled) Send ICMP Host Unreachable to Src Disabled
   Alert	Select any of the following alert options: Inherit (Send Alert to Manager) Send Alert to Manager Disabled
   Alert Suppression Timer	This field is displayed only configuring Sensor response for attacks of type Reconnaissance Correlation attacks. Select the severity level of the attack: Inherit Set explicitly Note If you select the option Set explicitly, specify the seconds in the number field.
   Capture Packets
   Attack and Pre-Attack	Select any of the following pre-attack packet capture options: Inherit (Attack and Prior 128 Bytes) Attack and Prior 128 Bytes Disabled
   Post-Attack	Select any of the following post-attack packet capture options: Inherit (Disabled) Enabled Disabled
   Flows to Capture	This field is displayed only when you select Post-Attack as Enabled. The following are the options available in this field: Inherit (Attack Flow Only) Attack flow only By selecting the option Attack flow only, a new drop-down list is displayed. Select any of the following options: Attack Packets only Next N packets - type the number of packets in the blank packets field. Next N time - select the time options from the given drop-down list. The options are: Seconds Minutes Hours Days Rest of flow Flows from Src and Flows to Src and Dest By selecting the option Flows from Src and Flows to Src and Dest, a new drop-down list is displayed. Select any of the following options: Next N packets - type the number of packets in the blank packets field. Next N time - select the time options from the given drop-down list. The options are: Seconds Minutes Hours Days
   Bytes to Capture	This field is displayed only when you select Post-Attack as Enabled. The following are the options available in this field: Inherit (All Bytes in Each Packet) All Bytes in Each Packet First N Bytes in Each Packet By selecting the option First N Bytes in Each Packet , a new field to enter the number of bytes to capture is displayed. Type the number in the blank field.
   Manager actions
   Syslog	Select any of the following syslog options: Inherit (Disabled) Send Syslog Message Disabled
   SNMP	Select any of the following SNMP options: Inherit (Disabled) Send SNMP Trap Disabled
   E-Mail	Select any of the following email options: Inherit (Disabled) Send E-Mail Message Disabled
   Pager	Select any of the following pager options: Inherit (Disabled) Send Page Disabled
   Script	Select any of the following script options: Inherit (Disabled) Run Script Disabled
   Auto-Acknowledge Alert	Select any of the following auto-acknowledgment options: Inherit (Disabled) Auto-Acknowledge Alert Disabled
   Update	Click here to update the settings.

   Fields in the Capture Packets and Manager actions sections are displayed only when alerting (Alert field option) is enabled or inherited.

   The fields in the Sensor actions section is not displayed for malware attack definitions that support advanced malware policies as these settings are configured in the malware policy. However, the Manager actions are configurable for such malware attacks.

   The following table explains the various Sensor responses that can be performed for different type of attacks. Yes signifies that the Sensor response can be performed for the attack type. No signifies that the Sensor response cannot be performed for the attack type.

   Sensor responses for attack types

   Sensor response	Exploit	DoS Learning	DoS Threshold	Reconnaissance Signature	Policy Violation	Malware	Reconnaissance Correlation
   Block	Yes	Yes	No	Yes	Yes	Yes	No
   Quarantine	Yes	No	No	Yes	Yes	Yes	Yes
   TCP Reset	Yes	No	No	Yes	Yes	Yes	No
   ICMP Message	Yes	No	No	Yes	Yes	Yes	No
   Alert	Yes	Yes	Yes	Yes	Yes	Yes	No
   Capture packets	Yes	No	No	Yes	Yes	Yes	No
   Alert Suppression Timer	No	No	No	No	No	No	Yes
