Create a packet search protocol instance

Several packet search protocol instances are provided with Trellix IPS. You can create a packet search protocol instance. These applications use protocols that are neither defined by an RFC nor by any Trellix-defined protocol specification.

1. In the Custom Attack Editor, select Other Actions → Manage Grepping Protocols.

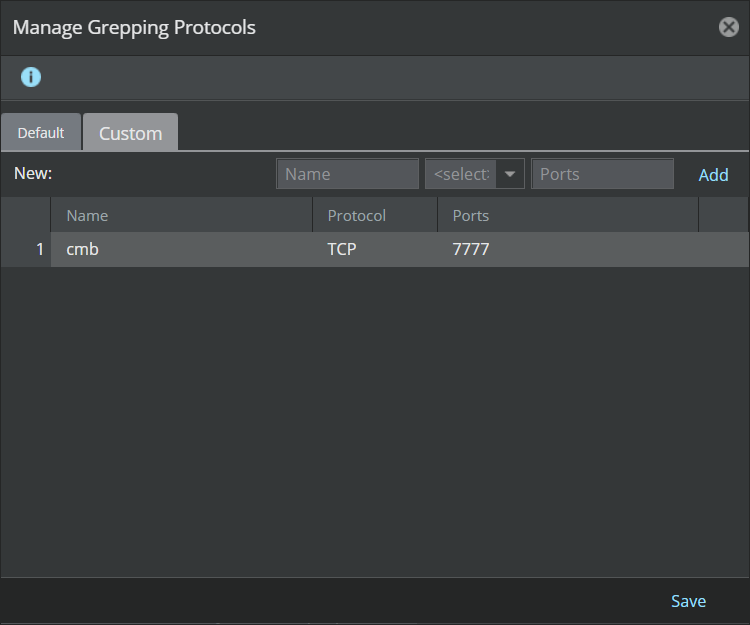

   The Manage Grepping Protocols dialog box opens.
2. Go to Custom tab.
3. Type a name. This name is listed in the "Select Protocol" step during signature creation.
   Type a verbose name. This name is for reference purposes.
4. Select the transport protocol as either TCP or UDP.
5. Type a port number in the Ports field, then click Add. Repeat for multiple port numbers.

   Note

   You cannot add a port number that is already used by a defined protocol, such as 21 (FTP) or 80 (HTTP). Also, if you create a packet grep instance for port 888, you cannot create another packet grep instance for that port.





6. Click Save when finished.
7. Create a new signature instance that utilizes your created packet grep instance.
