Create, clone, and modify Connection Limiting policies

You can create and manage Connection Limiting policies at an admin-domain level. After you create the Connection Limiting policies for an admin domain, you can assign it to the corresponding Sensor interfaces and sub-interfaces.

1. Click the Policy tab.
2. From the Domain drop-down list, select the domain you want to work in.
3. Select Intrusion Prevention → Policy Types → Connection Limiting.





4. Click to create a new policy.

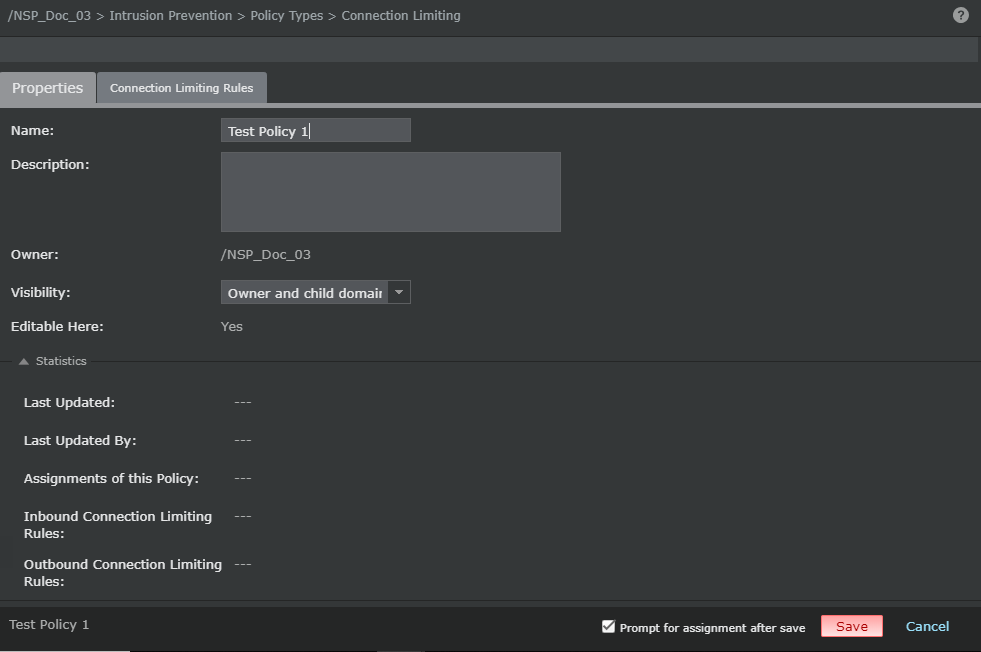

   The Properties tab opens.
5. Specify the details on the Properties tab.





   Option	Definition
   Name	Enter a unique name to easily identify the policy.
   Description	Optionally describe the policy for other users to identify its purpose.
   Owner	Displays the admin domain to which the policy belongs
   Visibility	Select Owner domain only to make the policy available only to the owner domain or select Owner and child domains to makes the policy available to the corresponding child admin domains. Note However, the policy cannot be edited or deleted from the child admin domains.
   Editable here	The status Yes indicates that the policy is owned by the current admin domain.
   Statistics	Lasted Updated — Displays the time stamp when the policy was last modified
   	Last Updated By — Displays the user who last modified the policy
   	Assignments of this policy — Indicates the number of interfaces and sub-interfaces to which the policy is assigned
   	Inbound Connection Limiting Rules: Displays the number of Connection Limiting rules currently defined for inbound traffic
   	Outbound Connection Limiting Rules: Displays the number of Connection Limiting rules currently defined for outbound traffic
   Prompt for assignment after save	When selected, you are automatically prompted to select the Sensor resources to which you want to assign the policy.
   Save	Saves the changes made on the Properties tab. This is visible only when you open an existing policy.
   Next	Saves the changes made on the Properties tab and to access the Connection Limiting Rules tabbed region. This button is available only when you create a policy.
   Cancel	Reverts to the last saved configuration

6. In the Connection Limiting Rules, click the appropriate button to insert a new rule.

   Button	Definition
   	Inserts a new rule above the currently selected rule
   	Inserts a new rule below the currently selected rule
   	Clones the currently selected rule
   	Deletes the currently selected rule
   	Moves the currently selected rule one row up
   	Moves the currently selected rule one row down

7. Double-click each column of a Connection Limiting rule and specify your choices.





   Option	Definition
   #	Displays the serial number of the rule. This is referenced in the alerts.
   State	Displays whether a rule is enabled or disabled. Sensor does not apply disabled rules. This option might help you during troubleshooting.
   Description	Optionally enter additional information about the rule. You can enter a description up to 64 characters long and click OK.
   Direction	Any — To apply this rule at both the ports Inbound — To apply this rule only to traffic seen at the outside port Outbound — To apply this rule only to traffic seen at the inside port
   Rule Type	Protocol — To limit TCP/UDP/ICMP active connections or connection rate from a host Trellix GTI — To limit connection rate based on reputation and/or geo-location of external hosts Note Trellix GTI-based rules are only applicable when Trellix GTI IP Reputation is enabled. Note Both the rule types are specified on a per-direction (inbound/outbound) basis.
   Threshold	Type: Connection Rate — The rate of the connection defined per second. Active Connections — The number of active connections. Note Only Connection Rate is available for Trellix GTI rules.
   	Value — Define the connections per second or the number of active connections based on the Threshold Type you selected.
   External	Reputation — Select one of the external Trellix GTI reputations (risk levels): High Risk Medium Risk or High Risk Unverified, Medium or High Risk Any Note This option is applicable only for Trellix GTI rule type.
   	Location — Select the external geo-location (Trellix GTI countries). Note This option is applicable only for Trellix GTI rule type.
   Service	Select a protocol from the Transport Protocol drop-down list: TCP (You can specify the port number for TCP protocol.) UDP (You can specify the port number for UDP protocol.) Ping (ICMP echo Request) All TCP & UDP Note Service component is only applicable for protocol rule type.
   Response	Select the response action that the Sensor must perform when the traffic matches the options you specified in the Connection Limiting rule. The following are the response options: Alert Only Alert & Drop Excess Connection Alert & Deny Excess Connection Alert & Quarantine
   Prompt for assignment after save	When selected, the Assignments window opens when you save a policy and you can assign the policy to the required Sensor resources. When deselected, the rule is saved in the Manager database and the policy appears in the Connection Limiting list.

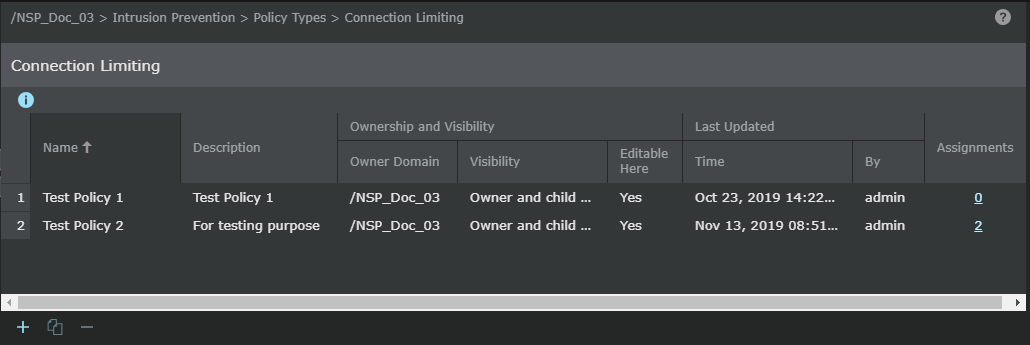

   Save	Saves the Connection Limiting rules in the Manager database. The Connection Limiting policy is listed in the Connection Limiting list.
