Create new Trellix IPS dashboards in ePO - On-prem (optional)

From ePO - On-prem home page, click , and select Reporting → Dashboards.

Select Dashboard Actions and click New.

Type name for the dashboard in Dashboard Name field, Dashboard Visiblity form drop-down list and click OK.

For more information on working with Dashboards in ePO - On-prem, refer to the Trellix ePolicy Orchestrator - On-premises Product Guide.

Click Add Monitor and choose the Category as Queries.

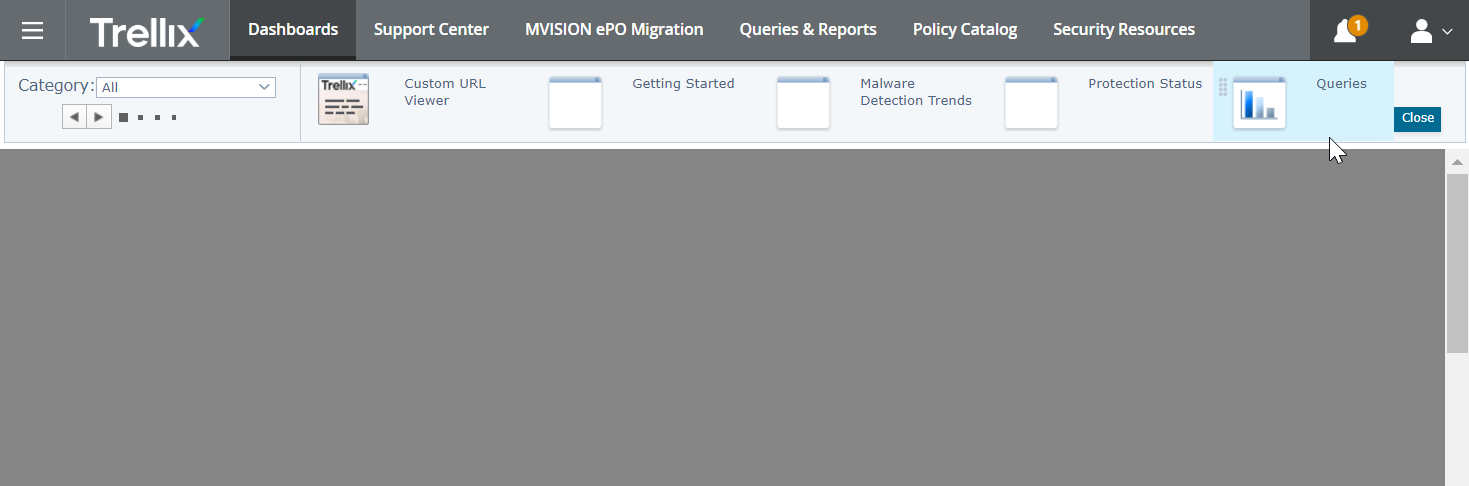

Select Monitor window

Drag the Queries monitor type to the dashboard and select a Monitor related to Trellix IPS. For example, you can choose Monitor as NSP: Top 10 Attacks.

Select OK.

Configure six different monitors available on the dashboard as per your requirements. Select Close.

Click Save. The new dashboard tab is displayed in ePO - On-prem.

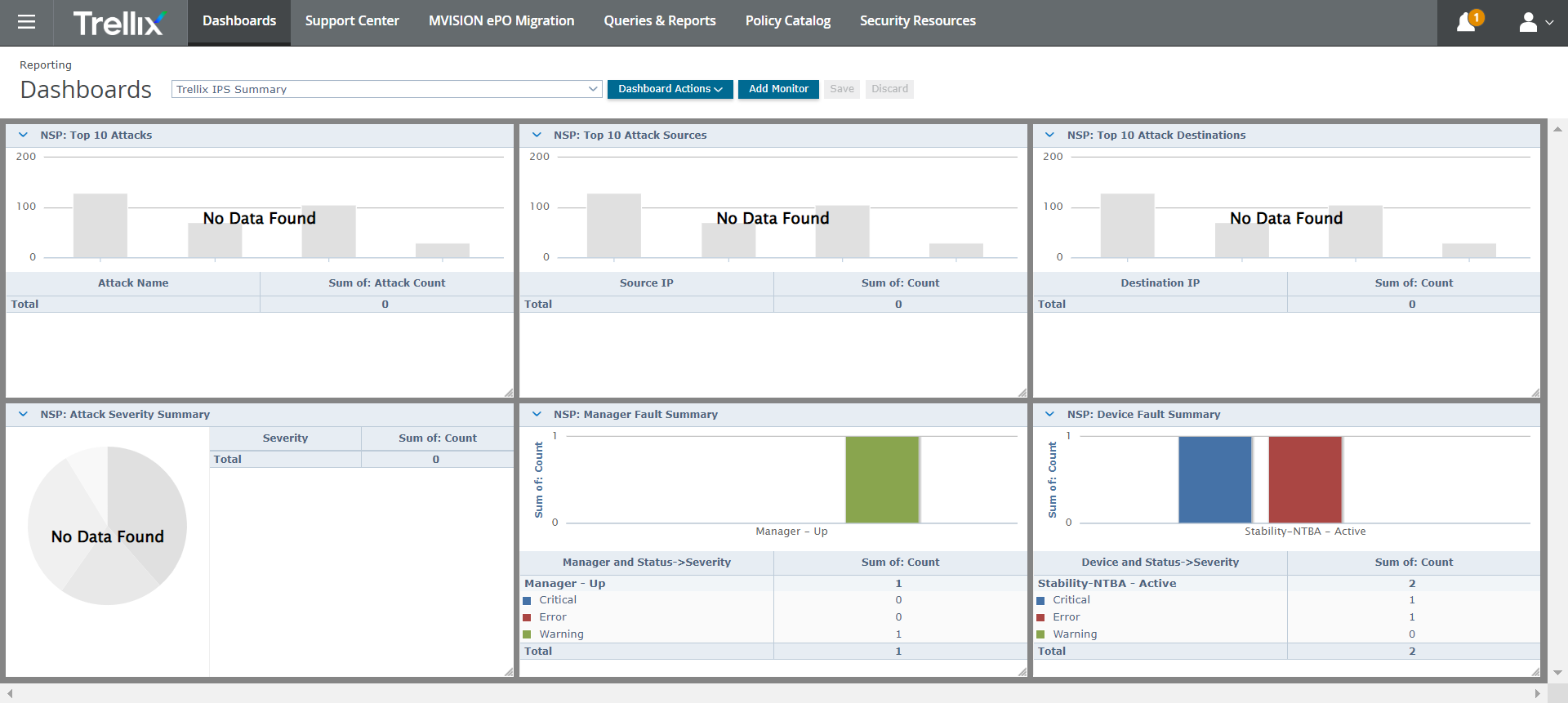

Dashboards tab

To get an enlarged view of any of the monitor, click the arrow at the top left corner of the monitor and select Full Screen.

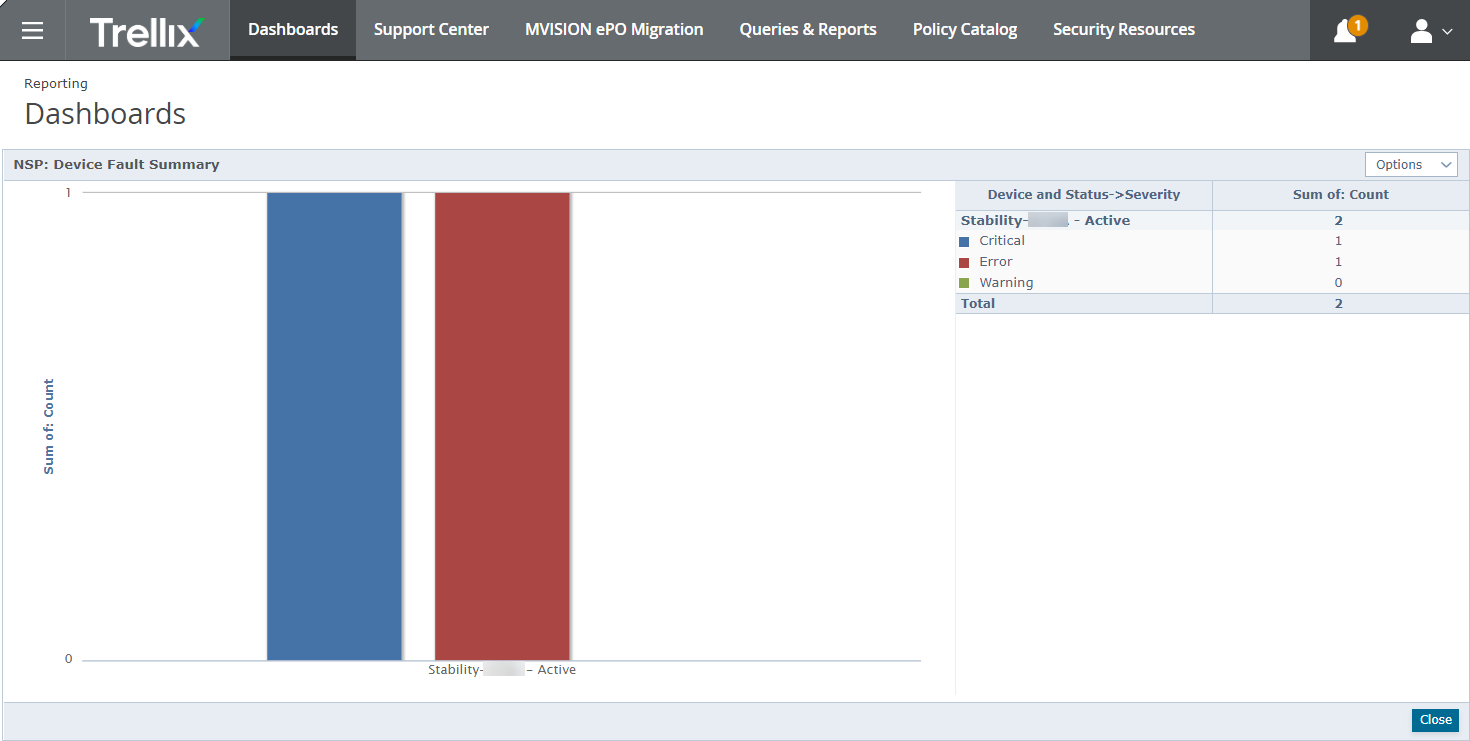

NSP Device Fault Summary window

Click Close to close the dashboard monitor and return to home page.
